Swing-N-Slide LA 9466 Manual

1-1/4" SCREW AND SWING HANGER ADDEDNDUM
SWING BEAM
THERE ARE NO 1-1/4" WOOD SCREWS IN THE FASTENER BAGS. YOU WILL USE THE 1-3/16" SCREWS.
USE THIS SWING HANGER INSTALL ADDENDUM IN PLACE OF THE SWING HANGER INSTALL METHOD IN
YOUR PLAYSET INSTRUCTIONS. YOU MUST USE THE QUICK LINK SUPPLIED TO INSTALL YOUR SWINGS.
Swing Hanger Bolt
1-1/4"
Flat Washer
2194
Swing Hanger
x4
Spring Clip
SWING BEAM
3-3/8 x 5-3/ x 95"
2502-CC
x1
PF 6299
3-3/8 x 5-3/ x 95"
2 5/8''x 5-3/8''x 93''
2502-CC
x1
Swing Beam
HOLD position of
Swing Hanger while
tightening Lock Nut.
HOLD position of
Swing Beam
Swing Hanger while
tightening Lock Nut.
NOTE: You may need to tap hanger with a hammer to get through beam.

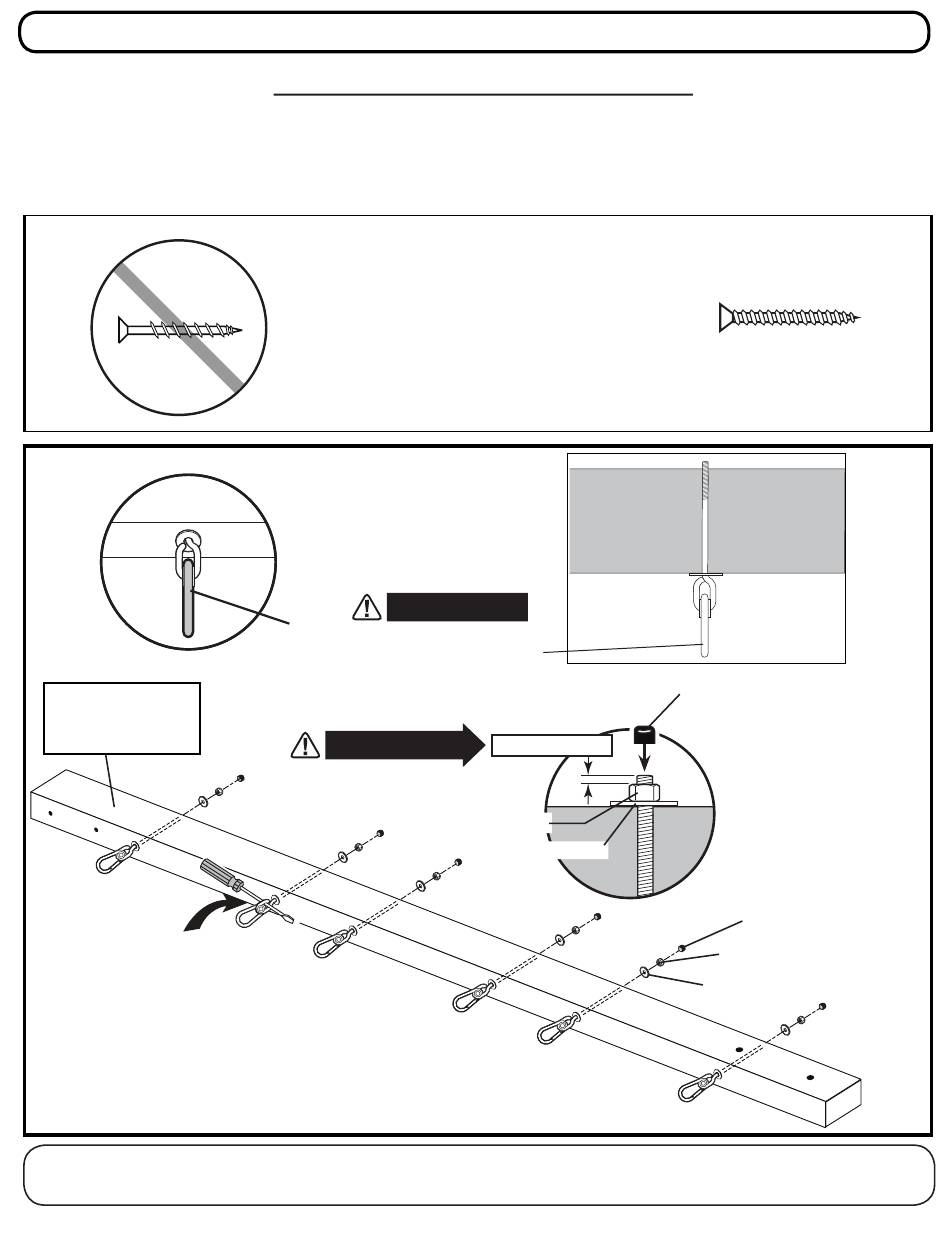

1. Attach Swing Hanger(s) to swing beam as shown.
© Swing-N-Slide Inc.
!! IMPORTANT - READ THIS ADDENDUM FIRST !!!!
WHEREVER YOUR INSTRUCTIONS
CALLOUT USING THE 1-1/4"
SCREW USE THE 1-3/16" SCREW
You may need to tap with hammer to get though holes.
Swing Hanger Bolt must protrude at least
IMPORTANT!
TWO Threads beyond Lock Nut.
Final position of each Spring Clip is
perpendicular to swing beam.
IMPORTANT!
Swing Hanger Bolt must protrude at least
TWO Threads beyond Lock Nut.
IMPORTANT!
IMPORTANT!
Final position of each Spring Clip is
perpendicular to swing beam.
SWING HANGERS - INSTALL
Final position of each Spring Clip is
perpendicular to swing beam.
SWING HANGERS
2 Threads MIN.
Lock Nut
2 Threads MIN.
1-3/8" Washer
Lock Nut
1-3/8" Washer
Swing Beam
Flat Washer
Swing Hanger
1-3/16"
IMPORTANT!
Place Cap on threads
after tightening
Use a socket
wrench to tighten
Cap
Lock Nut securely
against washer.
Use a socket
wrench to tighten
Lock Nut securely
against washer.
Cap
Lock Nut
1-3/8"
Washer Cap
Lock Nut
1-3/8"
Washer
LDR 7-10-2018 LA 9466
