EFD01RDWE/ EFD01RDMS/EFD01RDWEKIT
Please read carefully: Read through these instructions completely before commencing installation. Retain for future use.
This product should be installed by a licensed electrical contractor or similarly qualified person.
Specifications
Cat. No.
Colour
Supply Voltage
Power Rating
Max Airflow Rate (Non-ducted)
Max Airflow Rate (Ducted – Ø150mm x 3m)
Protection Class
IP Rating
Duct Requirement
Ceiling Cut-out Size (Ceiling fan)
External grille cut-out size
Projection into Ceiling
Protrusion from Ceiling
Grille Size (Ceiling fan)
Sound Pressure level at 3m
EFD01RDWEKIT includes : 1) External Grill
2) Ø150mm X 3m Duct
3) Cable ties
4) Duct tape
5) Mounting screws
Also available
External wall kit accessory: R621/6D
EFD01RDWE/EFD01RDWEKIT
White
Ø372mm
36 dBA (Tested in accordance with AS1217.5)

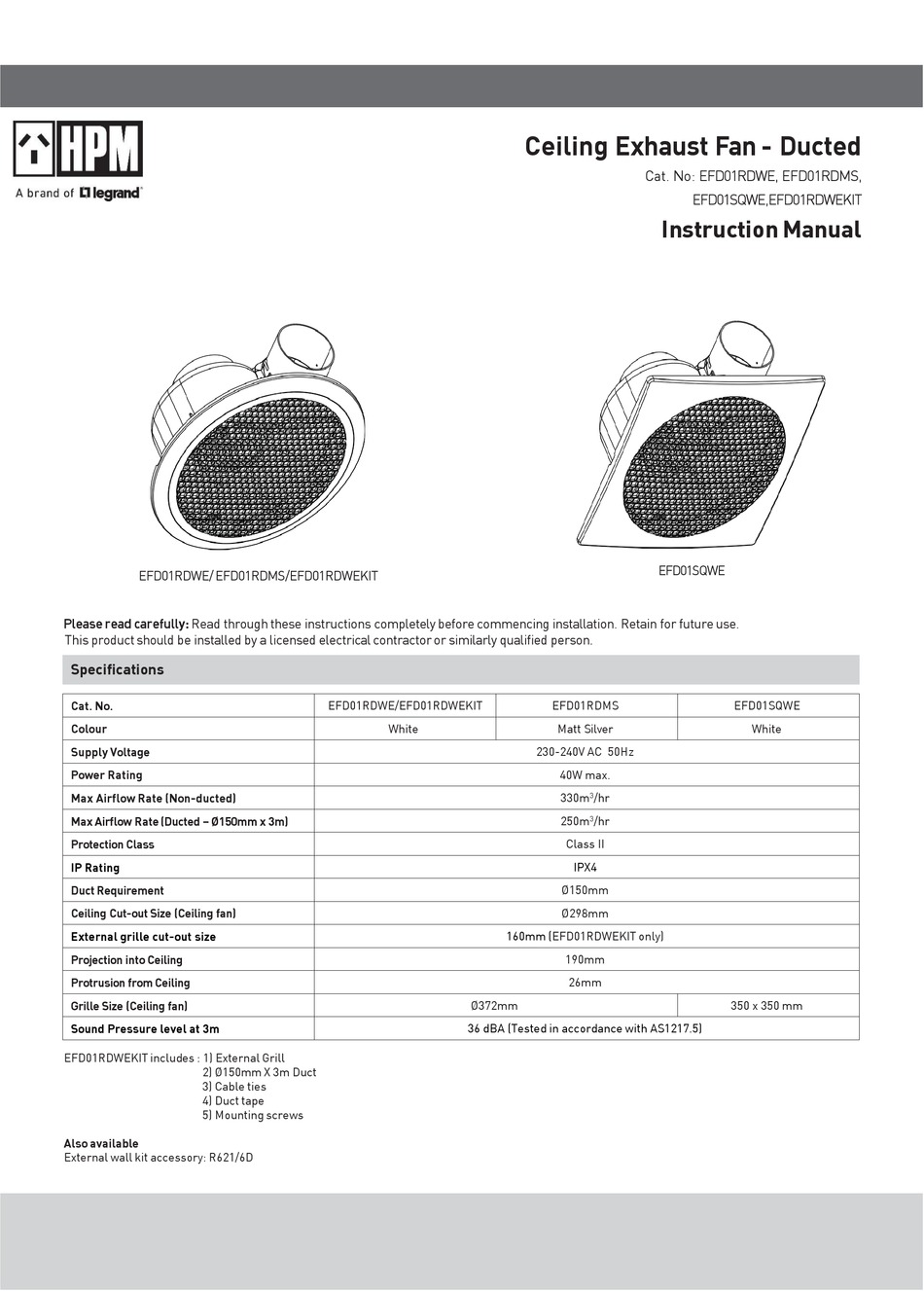

Ceiling Exhaust Fan - Ducted
Cat. No: EFD01RDWE, EFD01RDMS,
Instruction Manual

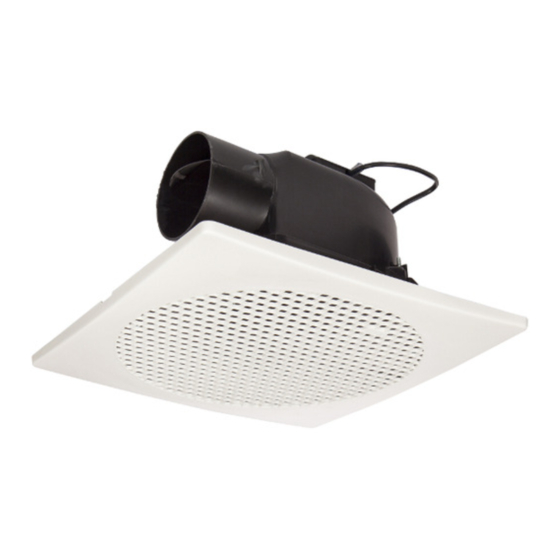

EFD01SQWE
EFD01RDMS
Matt Silver
230-240V AC 50Hz
40W max.
330m
3
/hr
250m
3
/hr
Class II
IPX4
Ø150mm
Ø298mm
160mm
(EFD01RDWEKIT only)
190mm
26mm
EFD01SQWE,EFD01RDWEKIT
EFD01SQWE
White
350 x 350 mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND HPM EFD01RDWE
Summary of Contents for LEGRAND HPM EFD01RDWE
- Page 1 Ceiling Exhaust Fan - Ducted Cat. No: EFD01RDWE, EFD01RDMS, EFD01SQWE,EFD01RDWEKIT Instruction Manual EFD01SQWE EFD01RDWE/ EFD01RDMS/EFD01RDWEKIT Please read carefully: Read through these instructions completely before commencing installation. Retain for future use. This product should be installed by a licensed electrical contractor or similarly qualified person. Specifications EFD01RDWE/EFD01RDWEKIT EFD01RDMS...
-
Page 2: Please Read Carefully
Please read carefully Read through these instructions completely before commencing installation. Retain for futureuse. 1. This product shall be installed in accordance to AS/NZS 3000 Wiring Rules. 2. Regulations concerning the discharge of air must be fulfilled. Local building codes may require venting to theoutside. 3. - Page 3 The unit shall be installed horizontally in the ceiling in accordance with example images shown below to ensure intended operation and rated performance. When fitted, the duct outlet must be the same height or lower than the exhaust fan. The duct must not be installed vertically into a roof vent cap - the product is not designed or intended for this type of installation. ROOFING ROOF VENT CAP Installation (CEILING FAN)
- Page 4 figure 8 figure 9 BEFORE AFTER Installation for External Grille (EFD01RDWEKIT ONLY) A suitable position must be found that will suit: 1. The position of the vent on the outside wall. 18mm Ø150mm 2. The location of studs, pipes, wires inside the cavity. Make a circular hole in the outside wall.
-
Page 5: Warranty
15. This product utilises intellectual property in the form of registered designs, trademarks, and/or patents. Such intellectual property remains the property of Legrand in all cases. 16. Legrand reserves the right to modify the specification of this product at any time. Customer Service Warranty Legrand warrants this product for a period of 3 years from the date of purchase.
