LEGRAND HPM EF100SQWE Instruction Manual

EF100SQWE
Standard square
100mm wall fan
Please read carefully: Read through these instructions completely before commencing installation. Retain for future use.
This product should be installed by a licensed electrical contractor or similarly qualified person.
1 Product Specifications
Model EF100SQWE
Supply Voltage
Power Rating
Standby Power
Wall Cut-out Size
Class of Protection
IP Rating IP44
Fascia Size 158x158mm
Protrusion 30mm
Weight (excl packaging) 500g
Contents
Model EF100SQWE
Exhaust Fan 1 pc
Draft Stopper 1 pc
Instruction Manual 1 pc
Warranty Card 1 pc
Wall Mount screws & Plugs 1 set
Airflow* (m /hr)
2
Model EF100SQWE
Draft Stopper
with
No duct 68
Wall kit R621/4D* 33
(350mm of duct)
1m of duct* 33
For indoor use only.
Measured with Φ100mm ducting.
*
Airflow will be reduced with bends in duct, squashing of duct,
restrictions on replacement air entering the room to be ventilated,
or pressure-differentials between the room and outside air.
The length of the duct will have an effect on the airflow. When fitted,
the wall kit (R621/4D) must be at the same height or lower than the
exhaust fan.
*
EF100SQSWE, EFT100SQSWE
Slimline square 100mm wall
fan and option with
*timer intergrated
EF100SQSWE EF100RDWE
EFT100SQSWE
230-240VAC 50Hz
Duct
14W
0.8W (EFT100SQSWE)
Ø110mm
Ceiling
Class II
IP24 IP24
158x158mm Ø190mm
17mm 17mm
450g 450g
EF100SQSWE EF100RDWE
Wall/Ceiling
EFT100SQSWE
1 pc 1 pc
1 pc 1 pc
1 pc 1 pc
1 pc 1 pc
1 set 1 set
EF100SQSWE
EF100RDWE
EFT100SQSWE
without with without
94 81 105
68 48 75
60 46 66
Wall Exhaust Fan, 100mm
Cat. EF100SQWE, EF100SQSWE,
EF100RDWE, EFT100SQSWE

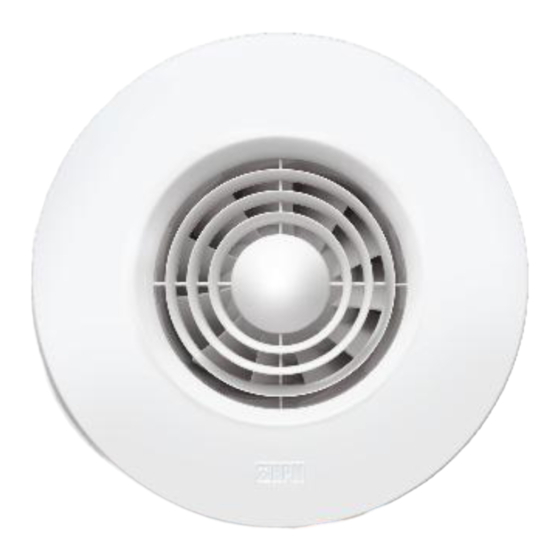

EF100RDWE
Round
100mm wall fan
Duct
2 Mounting
Ceiling
These exhaust fans are designed for wall-mounting only.
They may be vented in to a cavity wall. Alternatively, the fan may be
ducted through an outside wall (with the addition of ducting and an
outside grille). Protrusions into wall cavity are as per below figures.
Wall
Wall/Ceiling
Fan only
Draft Stopper
Draft Stopper
Wall/Ceiling Wall
Fan with
draft stopper
CAUTION:
Regulations concerning the discharge of air must be fulfilled.
Local building codes may require venting to the outside. Locate in
accordance with the requirements of the Wiring Rules AS/NZS 3000
relating to damp situations.
Note: Steam will only be removed if there is sufficient flow of air
through the room. Ensure adequate inlet openings in the room are
provided, for example through windows, vents or under the door. Air-
flow paths from room inlets to fan should ideally pass over surfaces
where condensation may form.
Instruction Manual
Draft Stopper
Wall/Ceiling
