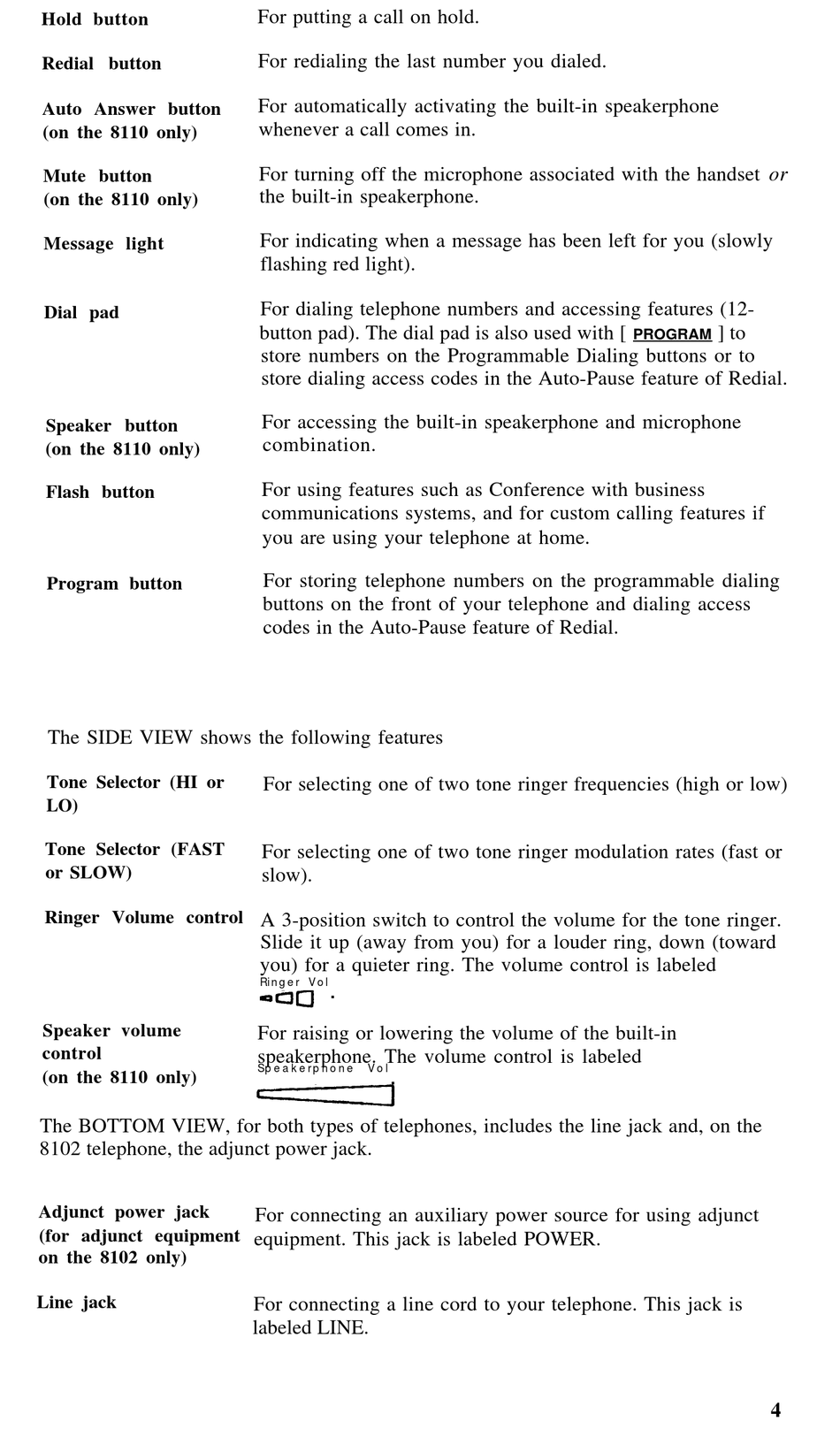

Hold button
Redial button
Auto Answer button
(on the 8110 only)
Mute button
(on the 8110 only)
Message light
Dial pad
Speaker button
(on the 8110 only)
Flash button
Program button
The SIDE VIEW shows the following features
Tone Selector (HI or
LO)
Tone Selector (FAST
or SLOW)
Ringer Volume control
Speaker volume
control
(on the 8110 only)
The BOTTOM VIEW, for both types of telephones, includes the line jack and, on the
8102 telephone, the adjunct power jack.
Adjunct power jack
(for adjunct equipment
on the 8102 only)
Line jack
For putting a call on hold.
For redialing the last number you dialed.
For automatically activating the built-in speakerphone
whenever a call comes in.
For turning off the microphone associated with the handset or
the built-in speakerphone.
For indicating when a message has been left for you (slowly
flashing red light).
For dialing telephone numbers and accessing features (12-
button pad). The dial pad is also used with [
store numbers on the Programmable Dialing buttons or to
store dialing access codes in the Auto-Pause feature of Redial.
For accessing the built-in speakerphone and microphone
combination.
For using features such as Conference with business
communications systems, and for custom calling features if
you are using your telephone at home.
For storing telephone numbers on the programmable dialing
buttons on the front of your telephone and dialing access
codes in the Auto-Pause feature of Redial.
For selecting one of two tone ringer frequencies (high or low)
For selecting one of two tone ringer modulation rates (fast or
slow).
A 3-position switch to control the volume for the tone ringer.
Slide it up (away from you) for a louder ring, down (toward
you) for a quieter ring. The volume control is labeled
R i n g e r V o l
.
For raising or lowering the volume of the built-in
speakerphone. The volume control is labeled
S p e a k e r p h o n e V o l
.
For connecting an auxiliary power source for using adjunct
equipment. This jack is labeled POWER.
For connecting a line cord to your telephone. This jack is
labeled LINE.
] to
PROGRAM
