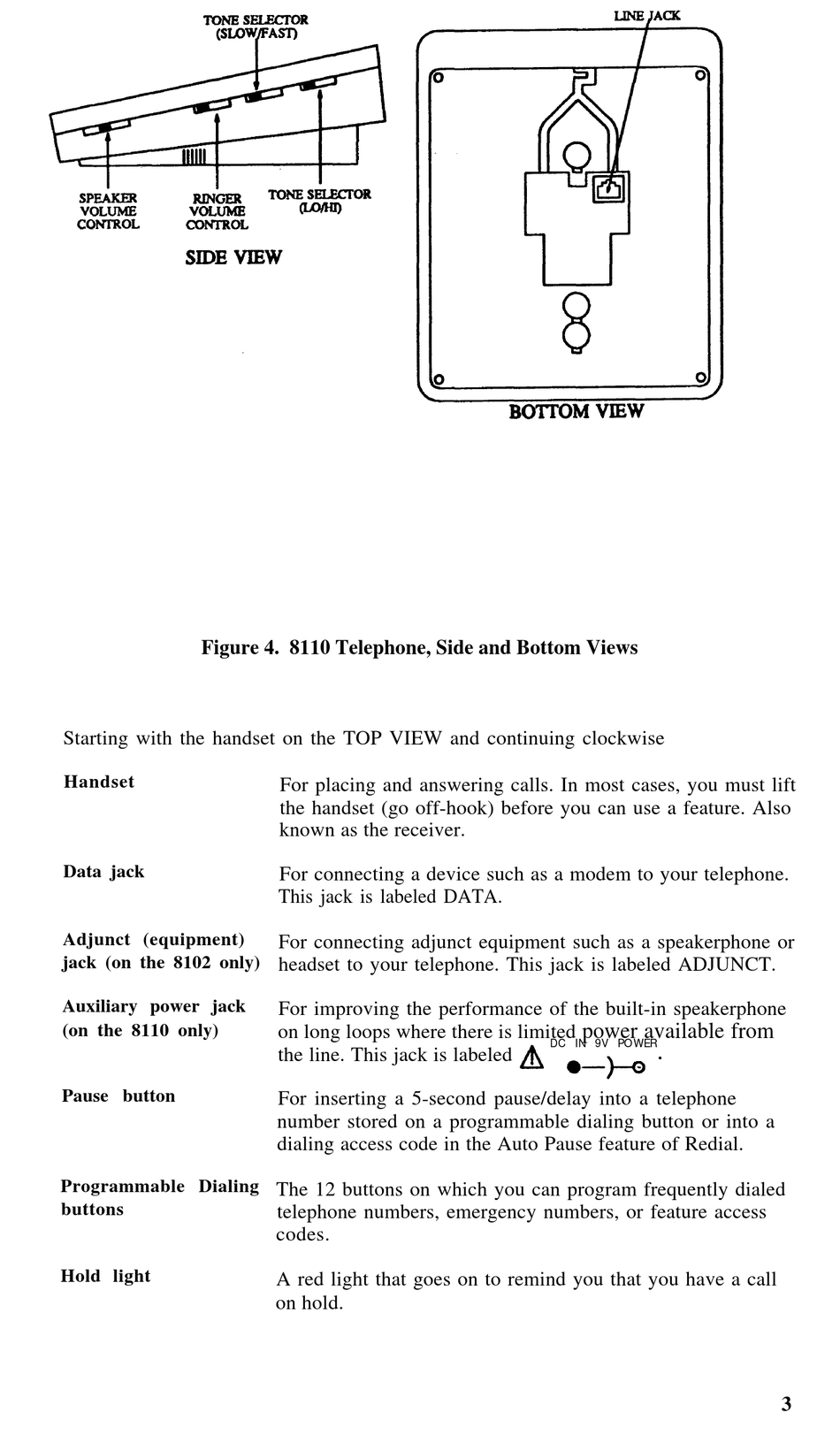

Figure 4. 8110 Telephone, Side and Bottom Views
Starting with the handset on the TOP VIEW and continuing clockwise
Handset
Data jack
Adjunct (equipment)
jack (on the 8102 only)
Auxiliary power jack
(on the 8110 only)
Pause button
Programmable Dialing
buttons
Hold light
For placing and answering calls. In most cases, you must lift
the handset (go off-hook) before you can use a feature. Also
known as the receiver.
For connecting a device such as a modem to your telephone.
This jack is labeled DATA.
For connecting adjunct equipment such as a speakerphone or
headset to your telephone. This jack is labeled ADJUNCT.
For improving the performance of the built-in speakerphone
on long loops where there is limited
the line. This jack is labeled
For inserting a 5-second pause/delay into a telephone
number stored on a programmable dialing button or into a
dialing access code in the Auto Pause feature of Redial.
The 12 buttons on which you can program frequently dialed
telephone numbers, emergency numbers, or feature access
codes.
A red light that goes on to remind you that you have a call
on hold.
power available from
DC IN 9V POWER
.
