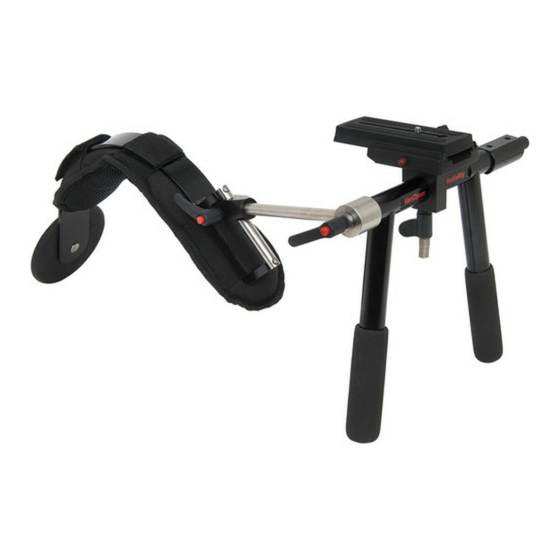

VARIZOOM MEDIA RIG Manual

VZ-DVMediaRig
Professional Camera Support

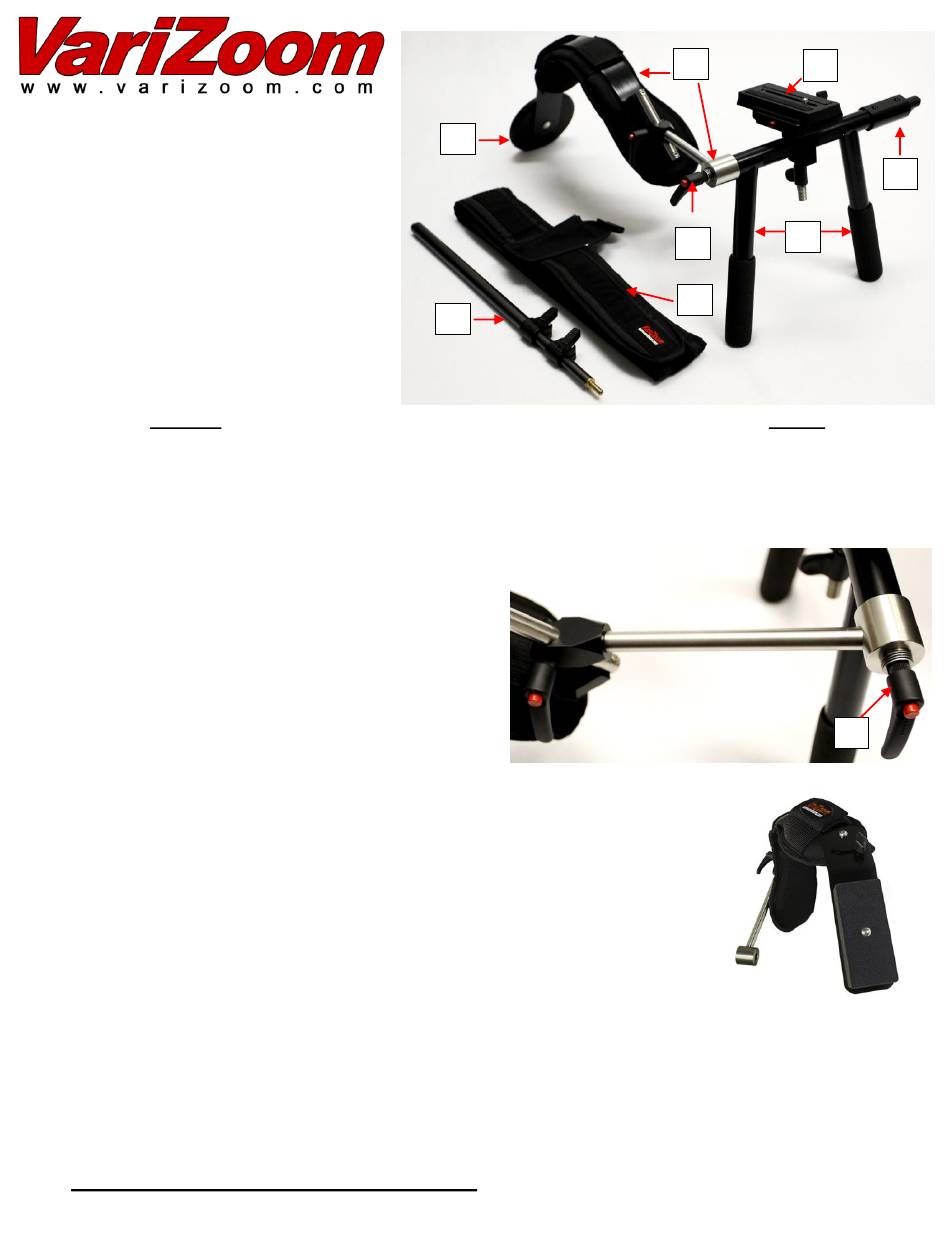

Kit includes: (1) Adjustable Shoulder
Arch (2) Handle Section (3) Belt (4)
Spring Pod (5) Quick-release Plate (6)
Tilt Lever (7) Accessory Mount (8)
Swiveling counterweight (may differ from
picture)
WARNING: NEVER POINT THE TIP OF THE SPRING POD AT YOUR FACE. ONLY LOOSEN
THE CLAMPS WHEN THE SPRING POD IS ATTACHED TO THE LOADED DV MEDIA RIG. THE
SPRING POD CAN POP OUT QUICKLY AND CAUSE INJURY IF THESE RULES ARE NOT
1) Connect the handles to the shoulder arch by
sliding the smaller end of the handle
assembly through the stainless steel cylinder.
Secure the two sections together by inserting
the tilt lever (6) through the stainless steel
cylinder and threading it into the handle
section. The tilt lever adjusts the tension on
the tilt action of the handles. The position of
the lever can be adjusted without loosening –
simply grab the lever and press on the red
button, then adjust the angle of the lever.
2) The swiveling counterweight can be adjusted to the left or right to
compensate for balance issues created by the camera and other
mounted accessories. For now, tighten the pivot knob thoroughly
so it doesn't move while you are mounting the camera and
accessories and making adjustments to the Rig.
3) Attach the quick-release plate to your camera using the appropriate screw. Remove the
unused screw and store in a secure location. Once the quick-release plate is firmly attached to
your camera, set it aside.
4) Attach the belt to your waist with the holster facing front. Take the spring pod and insert the
flat end into the holster, making sure to run the pod through the D-ring at the top of the holster.
Do not loosen the spring pod clamps yet.
8
\
2
\
4
\
2
\
FOLLOWED.
1
5
\
2
\
2
6
\
\
2
2
\
3
\
\
2
\
6
\
2
\
7
\
2
\
