- Page 1 CP JR Remote Head Operations Manual...
-
Page 2: Warranty
PREVENT THE LENS FROM STRIKING THE BASE OF THE HEAD WHEN TILTING. 9) WHEN USING THE CP JR’s ONBOARD LENS CONTROLS TO CONTROL YOUR CAMERA, ALWAYS POWER THE CAMERA UP LAST. OTHERWISE, THE RECORD START/STOP FEATURE MAY FALL OUT OF SYNC. TO AVOID THIS ISSUE, JUST MAKE SURE TO CONNECT XLR POWER TO THE HEAD BEFORE YOU TURN YOUR CAMERA ON. -
Page 3: General Description

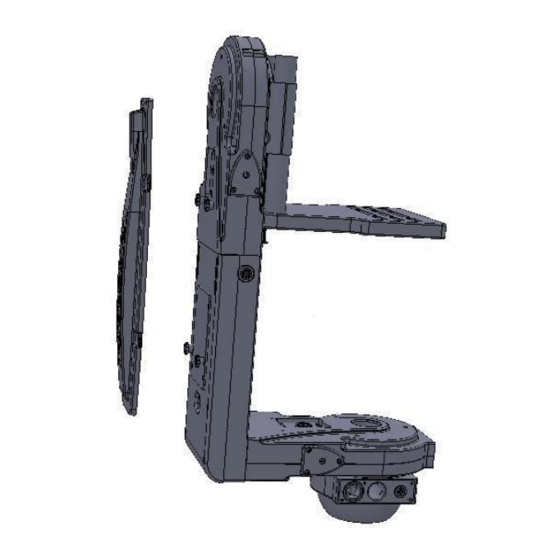

The CinemaPro JR is a lightweight, two-axis motion control head with lens interface controls for zoom and focus. It handles several control signals: RS-232 for Fujinon digital lenses or Varizoom (TOC) motor drives, RS-422 for Canon digital lenses or Preston motor drives, analog control for Fujinon or Canon. - Page 4 Balance the Camera – Although the head will hold position very well, it operates best when the camera is balanced on the mounting platform. With heavier cameras, it is essential, as an out-of-balance load will cause the servos to constantly fight to hold position. Make sure that the motor power is turned off before balancing.
-
Page 5: Troubleshooting
3. Troubleshooting No Response from head 1) Make sure that the motor power switch is turned on and the light above it is green. 2) Check to make sure soft limits aren’t set too close together. Disable all soft limits and try again. 3) Power down the system for 20 seconds and start it back up. - Page 6 Head Power Requirements: 24 VDC regulated, 120 watts max WARNING: Do not connect the head to any power supply other than the one supplied. If you must power the head another way, make sure you clear it with VariZoom first.
- Page 7 Connectors Head Base connectors Controller - 7pin LEMO (green) XLR 4-pin Head/Camera Power Passageway for external cables (video, lens control, etc.) Head Top connectors Lens Control Out to camera/lens/lens drive - 16pin LEMO (orange) Camera Power Out - 2pin LEMO (red) Controller connectors CTRL - 7Pin LEMO –...
- Page 8 Some lightweight jibs may not have enough mass to neutralize the high acceleration and torque of the CP Jr head. If the motion of the head causes your jib to sway from side to side in a way you want to eliminate, we have a counterweight option that will effectively eliminate the problem.
- Page 9 CP JR Neg. CP JR Pos. N.C. Y-Single Female XLR Output Connector (combines Camera & Head Power into one XLR cable run – connect to 30’ XLR extension that plugs into CP JR head) Function Camera Neg. CP JR Neg.
- Page 10 BE SEVERELY DAMAGED AND CAUSE DAMAGE TO YOUR CAMERA IF YOU USE A NON- APPROVED POWER SUPPLY. IF YOU MUST POWER IT USING A BATTERY SYSTEM, MAKE SURE THE SETUP IS APPROVED BY VARIZOOM AND EXECUTED BY A QUALIFIED TECHNICIAN. CP JR Head - Top Connectors 1) Camera Power (Red) –...
- Page 11 2) Lens Control (Orange) – LEMO EGG2B316CLL (Final Version) Function Lens Connection RS-232 RXD Fuji Digital RS-232 TXD Fuji Digital +5 VDC – Iso Fuji Digital Common – Iso Fuji Digital RS-422 RXD Canon Digital RS-422 RXD! Canon Digital RS-422 TXD Canon Digital RS-422 TXD! Canon Digital...
- Page 12 Lens Connection Table Lens Control, 16 pin LEMO FGG2B316CLAD Fujinon Digital Fujinon Analog Fujinon Telecon Canon Digital Canon Analog HR10A-10P-10P HR10A-10P-12P HR10A-10J-12P HR25-9P-20P HR25-9P-20P 1 RS-232 RXD 2 RS-232 TXD 3 Iso Vcc 4 IsoCom & IsoCom3 19 & 20 - Green 5 RS-422 RXD 17 - Orange 6 RS-422 RXD!
- Page 13 Controller Connectors 1) Green 7pin – Head Control – LEMO EGG1B307CLL Function Wire Color (Cable) Common Brown RS-422 RXD RS-422 RXD! Orange RS-422 TXD Yellow RS-422 TXD! Green 24 VDC + Blue Power from Cinema Pro 24 VDC - Violet Power from Cinema Pro 2) Gray 8pin –...
