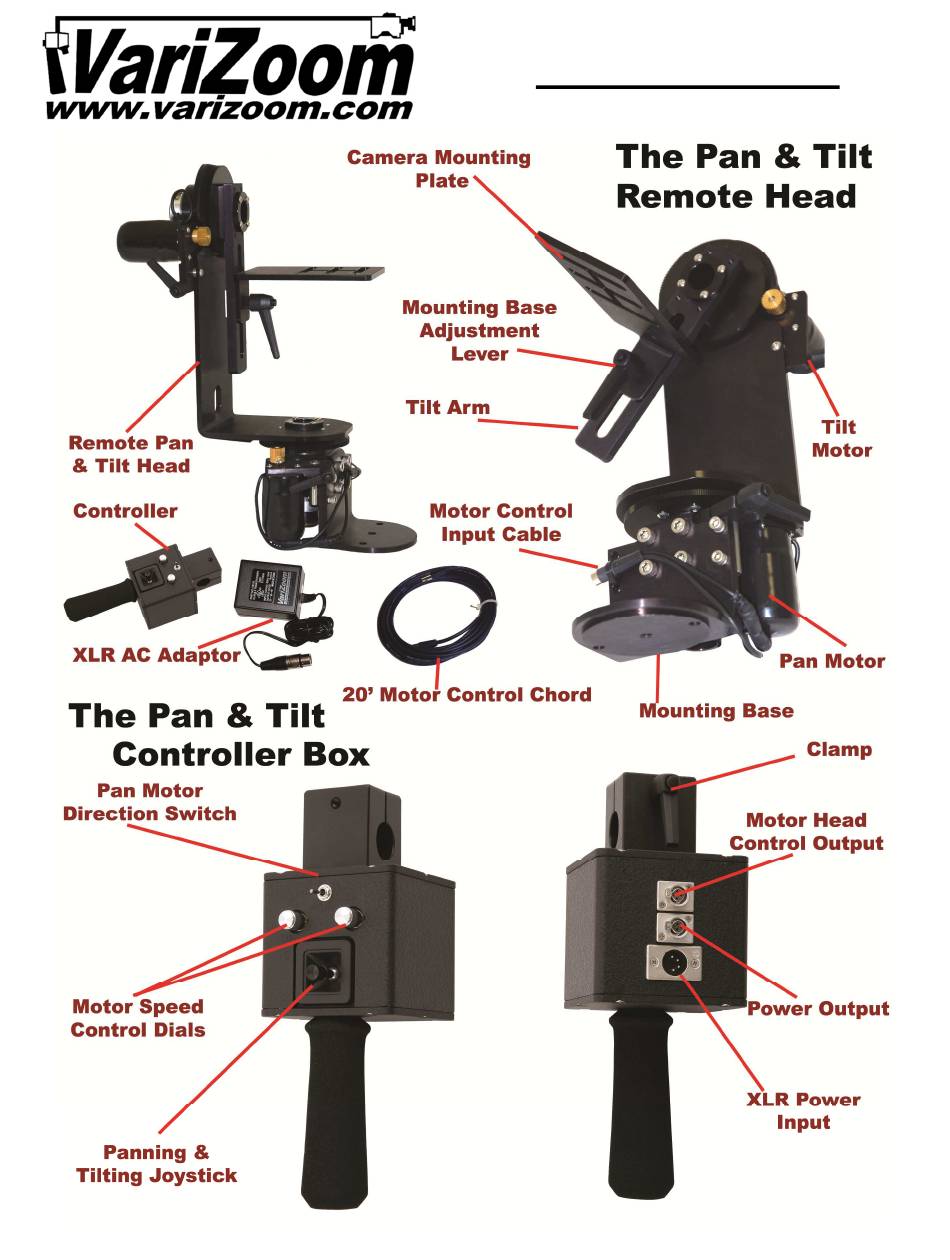

- Page 1 VZ-MC50 Pan and Tilt Controls Diagram...
- Page 2 1. Bolt the base plate of the VZ-MC50 head securely to jib or tripod mount. The base is designed to mount on a flat surface or 100mm bowl, so an adapter may be necessary for other sizes (consult jib or tripod maker).
- Page 3 5. Engage the brass motor gears to the black arm gears and tighten. Be sure the levers are pointing away from the rotating arm. -NOTE: Once tightened, you can adjust the position of the lever by simply pulling out on it and then rotating the lever until it faces away. This will NOT loosen the fastener.
- Page 4 * FOR PROFESSIONAL CAMERAS Since professional shoulder-mount cameras typically use a quick-release tripod plate of some sort, it is important to note that in some cases the friction between the camera’s mounting plate and the mounting plate of the VZ-MC50 may not be...
- Page 5 Most other maintenance should be performed by the factory. REMINDER: KEEP FINGERS, LOOSE CLOTHING, AND HAIR AWAY FROM MOVING PARTS AND GEARS! ALWAYS UNPLUG MC50 PAN AND TILT HEAD WHEN NOT IN USE! WHEN IN DOUBT ABOUT SAFETY, ASK QUESTIONS FIRST!!! 888-826-3399 / www.varizoom.com...
