QuickJib Universal Instruction Sheet
For an Instructional Video, go to YouTube:
http://www.youtube.com/watch?feature=player_embedded&v=tV7-SMHvboc
System Checklist:

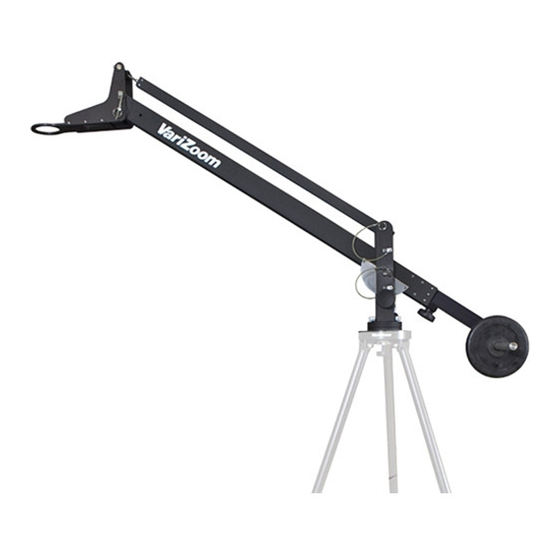

VZ-QuickJib: Pivot Tube, Leveling Tube, Pan/Tilt Base,
Camera Platform, Weight Bar, Adapter Plate for remote heads,
Soft Case
VZ-QuickJib2: Pivot Tube, Leveling Tube, Main Tube Extension
w/ Clamping Plates, Leveling Tube Extension, Pan/Tilt Base,
VZ-QuickJib
Camera Platform, Weight Bar, Adapter Plate for remote heads,
Soft Case x2
VZ-QuickJibKit: Contents of VZ-QuickJib plus Tripod & Dolly
VZ-QuickJib2Kit: Contents of VZ-QuickJib2 plus Tripod & Dolly
Notes: 1) Kits with -50 or -100 simply add the MC-50 or MC-
100 remote heads. 2) Weight plates NOT INCLUDED
VZ-QuickJib Kit
VZ-QuickJib2 Kit
VZ-QuickJib2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VARIZOOM VZ-QuickJib
Summary of Contents for VARIZOOM VZ-QuickJib
- Page 1 Camera Platform, Weight Bar, Adapter Plate for remote heads, Soft Case x2 VZ-QuickJibKit: Contents of VZ-QuickJib plus Tripod & Dolly VZ-QuickJib2Kit: Contents of VZ-QuickJib2 plus Tripod & Dolly Notes: 1) Kits with -50 or -100 simply add the MC-50 or MC- 100 remote heads.
- Page 2 Tripod Feet Secured to Dolly - Shown Below Camera VZ-QuickJib2Kit-100 platform Leveling Tube (extended) DOLLY WARNING: Do not roll fully loaded jib around freely Main Tube Extension Pivot Section Telescoping weight section Camera Platform attaches to camera leveling tube at crossbar w/ threaded rod &...
- Page 3 These instructions apply to all versions of the QuickJib – ignore components you didn’t purchase. The VZ-QuickJib is the short jib-only version. The VZ- QuickJib2 is the extended jib-only version. VZ-QuickJibKit & VZ-QuickJib2Kit versions include tripod & dolly. All versions use standard barbell weight plates.
