VZ-GT Camera Stabilizer
Instruction Manual
Please read the instruction manual thoroughly before
operating your GT stabilizer for the first time to avoid
injuring yourself or damaging the unit.
The robust construction of the GT makes it an excellent
long-term investment, but its precision design also means
that you must exercise care in the storage, transport, and
Operation of the unit to ensure optimal long-term
performance.
You should also review the accompanying instructional DVD
before attempting to shoot usable footage with the GT. The

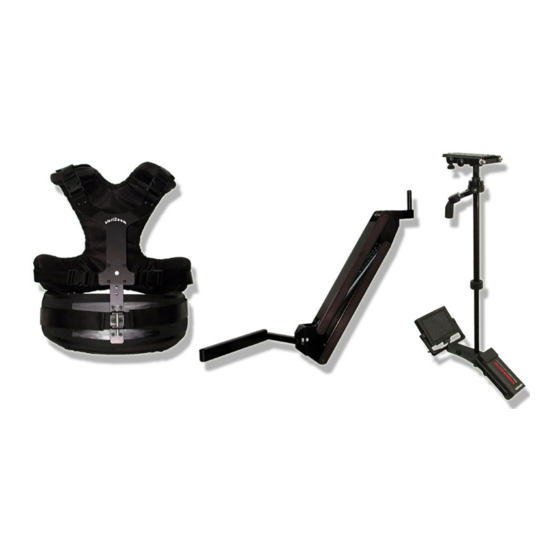

standard GT comes equipped with three subsystems:
VEST
ARM
SLED
w/ monitor
and the following: padded case, DVD, hex wrench, BNC-
RCA video cable, battery/charger, & docking post (for
mounting sled on a C-stand or light stand).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VARIZOOM FLOWCAM GT
Summary of Contents for VARIZOOM FLOWCAM GT
- Page 1 VZ-GT Camera Stabilizer Instruction Manual Please read the instruction manual thoroughly before operating your GT stabilizer for the first time to avoid injuring yourself or damaging the unit. The robust construction of the GT makes it an excellent long-term investment, but its precision design also means that you must exercise care in the storage, transport, and operation of the unit to ensure optimal long-term performance.
- Page 2 Page 2 Page 11 For GTs Equipped with Optional Battery Mounts Low Mode Assembly If you ordered your GT with one of the optional battery The Low Mode kit consists of the camera cage, the sled-to- mounts (Anton Bauer, NP1, V-lock), your kit will not include arm tie rod, and a few screws.
- Page 3 Page 4 Page 9 First, insert the battery into its housing, making sure the You can also fine-tune the horizontal and vertical balance electrical contacts are firm, and tighten the screws. To by adjusting the position of the battery housing. On the prepare the camera for attachment to the sled you should underside of the base of the sled, directly beneath the first find the center of gravity (CG) of the camera.
- Page 4 This operation, and if you have any general questions, visit the section provides a few vertical and website – www.varizoom.com. If you’ve watched the video horizontal balance adjustment points. and practiced and still have technical questions, call 310-...
- Page 5 Page 6 Page 7 If your fully loaded camera weighs less than 6 pounds, you will have to remove the non-adjustable spring. If it weighs more than 11 pounds, you will have to replace the non- adjustable spring with a heavier one. A1 –...
- Page 6 Page 8 Page 5 Ideal vertical balance is reflected by a “drop time” of 2-3 stage laterally by using the second knob. Both adjustments seconds, meaning it should take 2-3 seconds for the sled to allow for very fine increments, so you will find it is best to swing down 90 degrees to the vertical plane (it will swing turn the knobs slowly until you hit the “sweet spot”...
