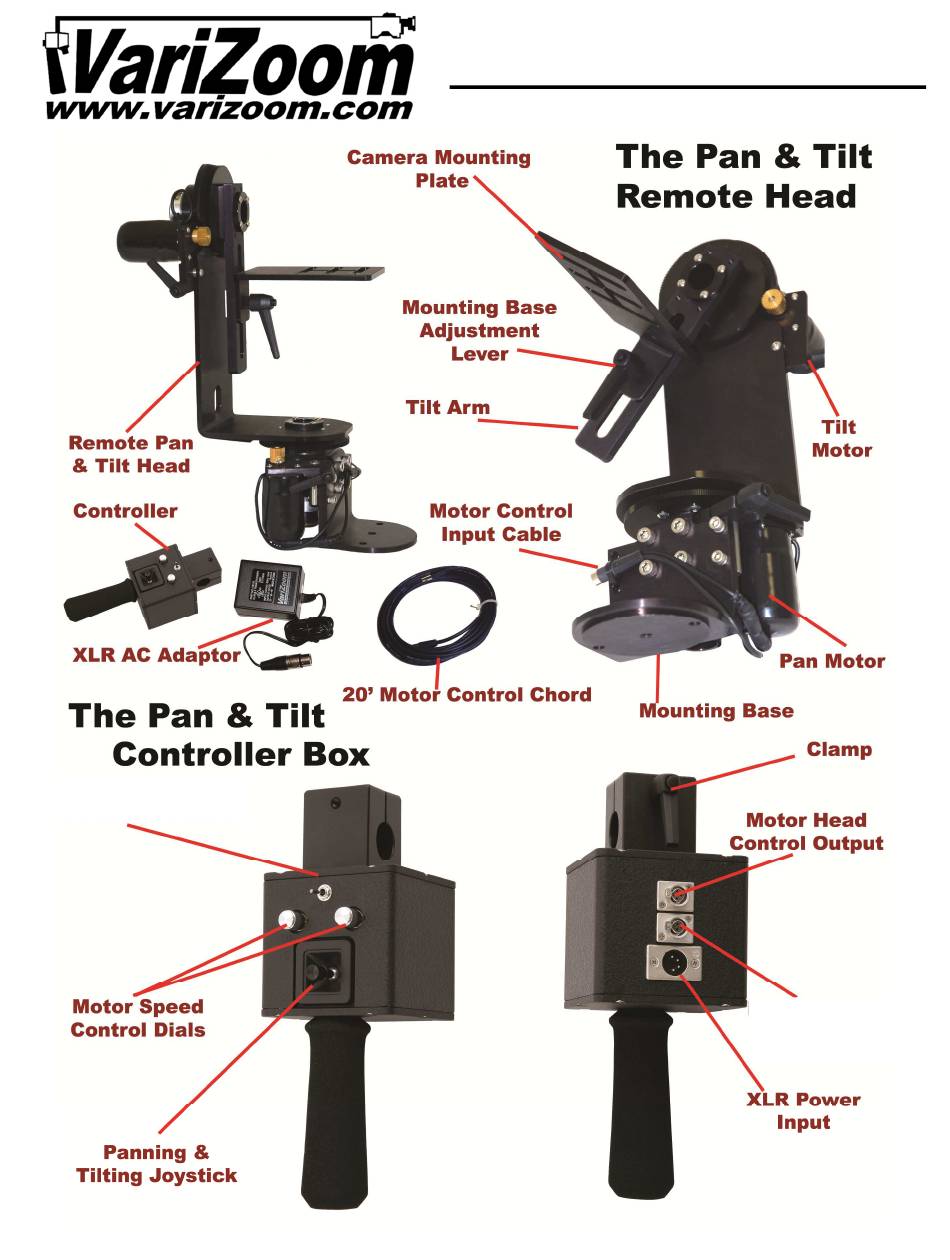

- Page 1 VZ-MC50 Dual Pan and Tilt Controls Diagram Head ½ toggle Head Output...
- Page 2 VZ-MC50 Dual Pan and Tilt Head - Set-Up and Operating Instructions PLEASE READ THOROUGHLY BEFORE STARTING! SAFETY PRECAUTIONS: *Keep fingers and loose clothing away from gears and moving parts. *Always unplug VZ-MC50 Pan and Tilt Head when not in use. *Mount only on stable surfaces.
- Page 3 5. Engage the brass motor gears to the black arm gears and tighten. Be sure the levers are pointing away from the rotating arm. -NOTE: Once tightened, you can adjust the position of the lever by simply pulling out on it and then rotating the lever until it faces away. This will NOT loosen the fastener.
- Page 4 If the tripod/MC50 mount were suddenly jarred or disrupted, there is a possibility the mounting bolt might bend or shear, so be very cautious about this type of setup. VARIZOOM DOES NOT RECOMMEND MOUNTING THE MC50 ON ANY TRIPOD OTHER THAN A 100 mm BOWL TRIPOD.
- Page 5 Most other maintenance should be performed by the factory. REMINDER: KEEP FINGERS, LOOSE CLOTHING, AND HAIR AWAY FROM MOVING PARTS AND GEARS! ALWAYS UNPLUG MC50 PAN AND TILT HEAD WHEN NOT IN USE! WHEN IN DOUBT ABOUT SAFETY, ASK QUESTIONS FIRST!!! 888-826-3399 / www.varizoom.com...
