VariZoom
VariZoom
SWIT series electronics
Characteristics
The S-1080BP/BC/BJ/BS is a professional LCD monitor with high resolution, wide viewing angle, large screen and
various inputs featuring a MiniDV battery mount for power.

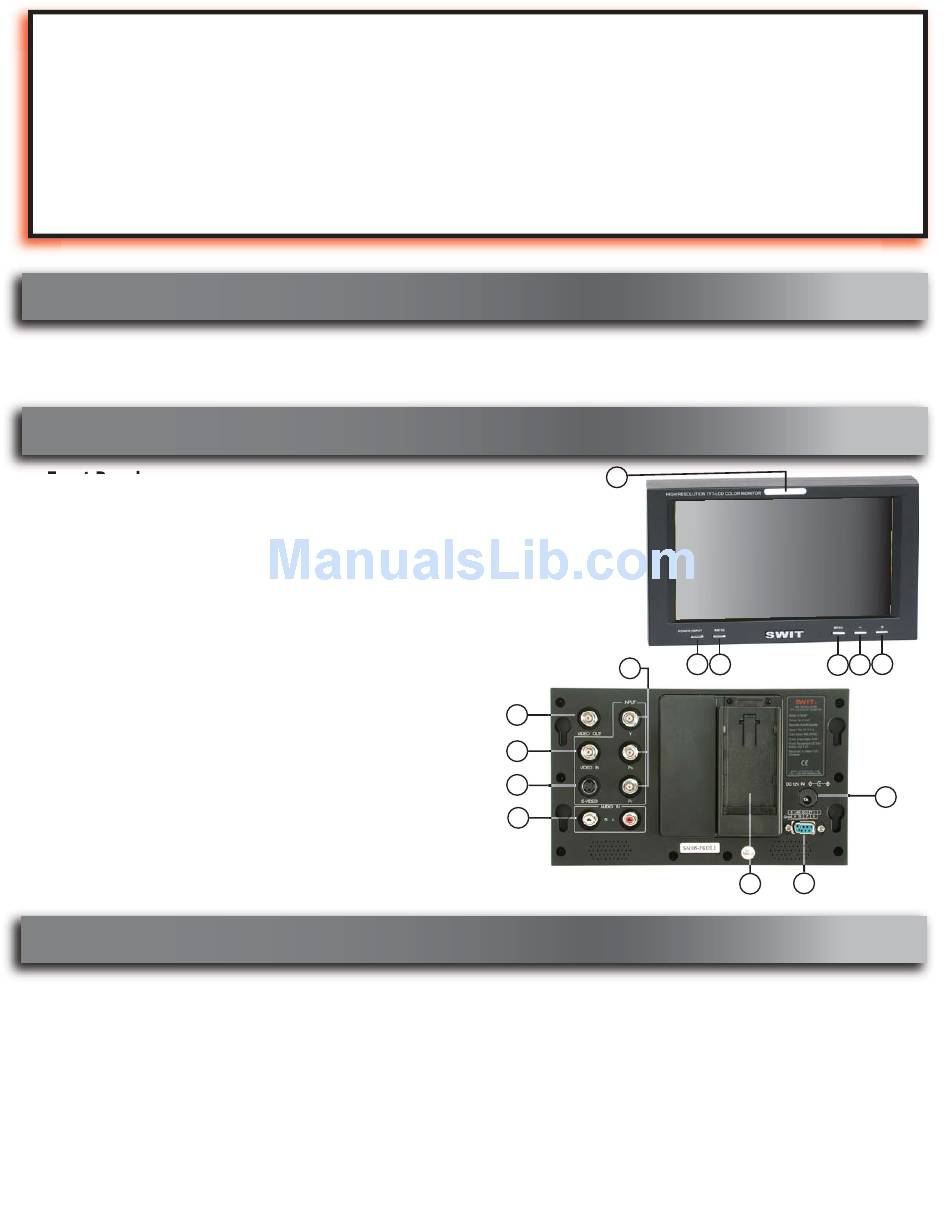

Description
● Front Panel
1. POWER/INPUT
2. RATIO
3. MENU
4. MINUS
5. PLUS
6. TALLY LAMP
● Rear Panel
1. POWER IN
2. VIDEO IN
3. VIDEO OUT
4. YUV(Y Pb/Cb Pr/Cr)
5. S-VIDEO (Y/C)
6. AUDIO IN
7. TALLY LAMP
8. BATTERY MOUNT
*MiniDV battery type (SONY, JVC, Panasonic, Canon) is specific to the model of monitor
Basic Operation
1. Power On
The monitor is in a standby mode when first connected with a power source. Press the POWER button for 4
seconds to bring the monitor to an active state. During operation press the POWER button for 2 seconds to enter standby
mode.
2. Signal Source Option
Each brief press of the POWER/INPUT button cycles through the video inputs. When no source is detected for a
video input the monitor displays a blue screen with the message 'No Sync'.
USER MANUAL
s1080BP/BC/BJ/BS High Resolution TFT Color Monitor
Power on/off, signal source selector
Ratio and framing guides (16:9, 4:3)
Display menu onscreen
Volume down, menu option
Volume up, menu option
Three color status indicator (red, green, amber)
Connect with 12v DC
Composite video
Composite video only
Component video
S-Video
2ch Stereo only
Connect with tally lamp indicator
Connect a MiniDV battery*
VariZoom Lens
Controls©2006
6
4
3
2
5
6
www.varizoom.com
Tel: 512-219-7722
www.varizoom.com
1
2
4
3
7
8
5
1
