Solera
with Access Plates
Installation and Owner's Manual
(For Aftermarket Applications)
Solera
with Access Plates
Installation and
Owner's Manual
(For Aftermarket Applications)
The number of variances for the Solera Slide Topper
is too extensive to list herein and beyond the scope
of this document. Contact LCI Customer Service
at (574) 537-8900 or email:
if there are any concerns in regards to the product purchased.
If the unit came with a pre-installed Solera

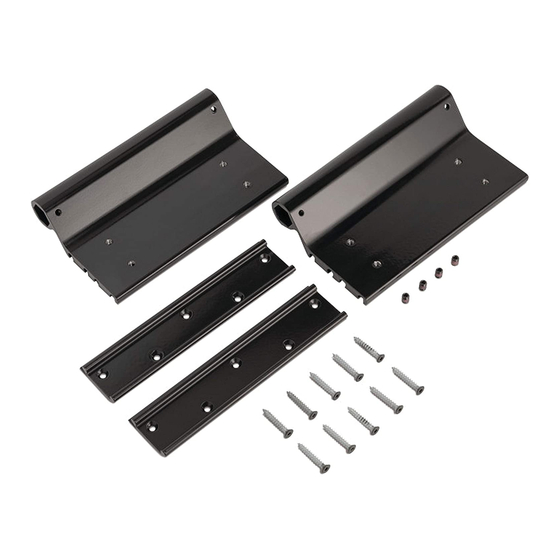

Access Plate (Fig.1A or 2A), the access plates, part number
768004 (black) or 768005 (white) will not be needed for
this installation. To review a list of prepped units, go to link
https://www.lci1.com/toppers.
A
2
2
3
4
4
Fig.1
4
5
5
. . . . . . .
6
A
. . . .
7
8
9
9
9
10
Fig.2
1
Slide Topper
®
Slide Topper
®
customerservice@lci1.com
CCD-0002641
Slide Topper
®
Rev: 08.31.20
