DynaLock 3002 TJ32 Series Installation Instructions Manual

705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
The Series 3002xTJ32 is a 1500 pound holding force top jamb mounted electromagnetic lock designed to secure a
double inswing door. The lock requires both installation procedures as described herein and in the separate wiring
instructions included.

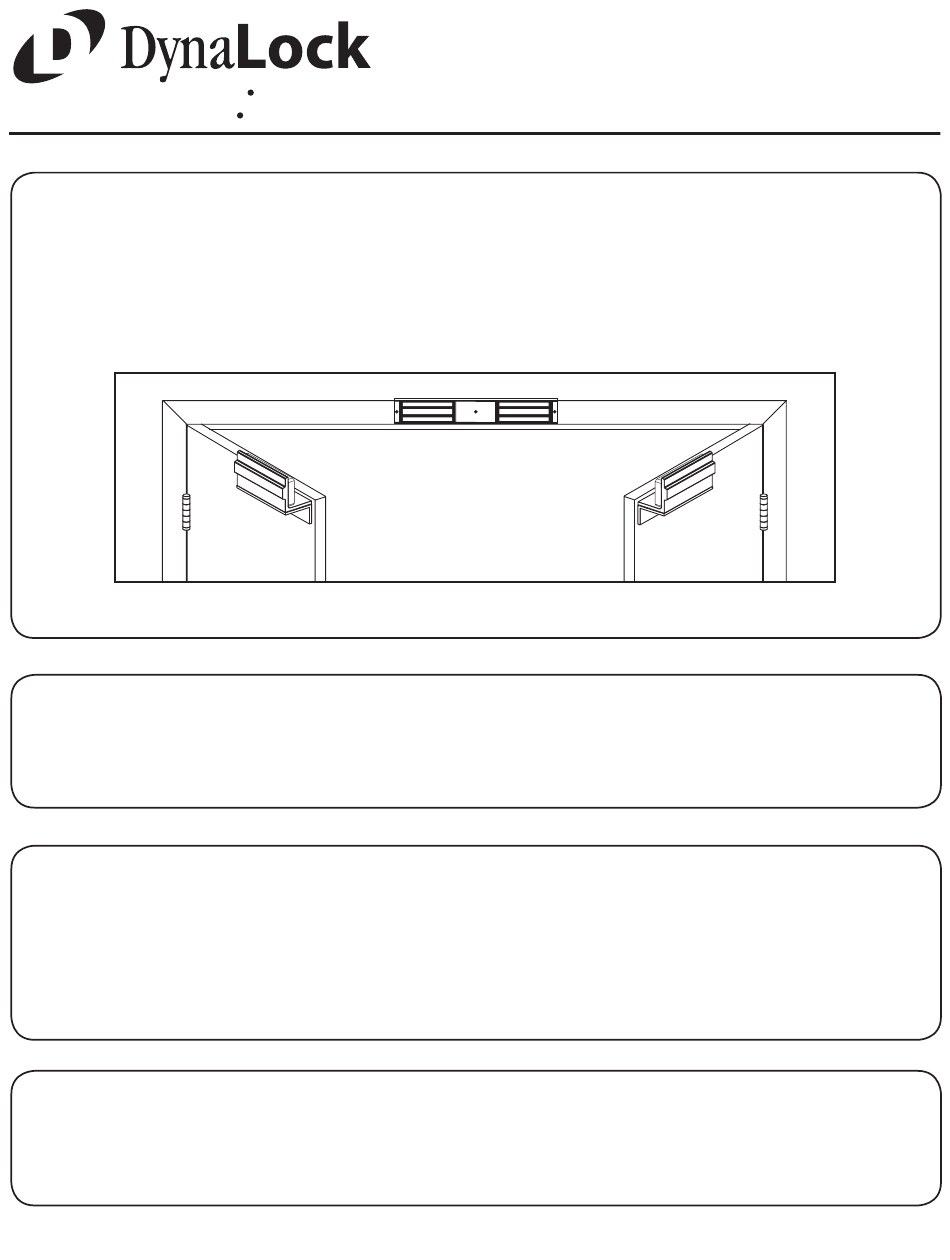

Typical installation of the lock on a double inswing door:
Care must be taken that the lock face and armature face are kept free of dirt, rust, paint, or any other obstruction
which may interfere with the lock and armature making good contact. These faces may be cleaned with a non-
abrasive pad and wiped with an oil dampened cloth.
Familiarize yourself with the door and frame conditions. The lock must mount rigidly to the face of the door frame
header. The door mounted armature is supplied with an adjustable mounting bracket and hardware that allows it
to pivot slightly to compensate for reasonable misalignment.
NOTE: If this lock is supplied with the DSM option be certain that disc magnets are present inside the
armature housing.
After mechanical installation is complete the lock needs to be wired to a 12 or 24 VDC/VAC power source. Once low
voltage power is supplied the unit is fully operational. All other wiring is for selected options. Refer to the separate
wiring instructions included for further information.
3002xTJ32 MANUAL - FORM 3002TJ-003
INSTALLATION INSTRUCTIONS
INSTALLATION DESCRIPTION
HANDLING
MECHANICAL INSTALLATION
ELECTRICAL INSTALLATION
Page 1
MODEL 3002xTJ32
ELECTROMAGNETIC LOCK
02/07
