DynaLock 2282-TJ82 Installation Instructions Manual

705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
The Model 2282-TJ82 is a top jamb mounted
electromagnetic lock designed to secure a
pair of inswinging doors, with 1200 pounds
holding force per leaf. The lock requires
installation procedures as described herein
and in the separate wiring instructions.

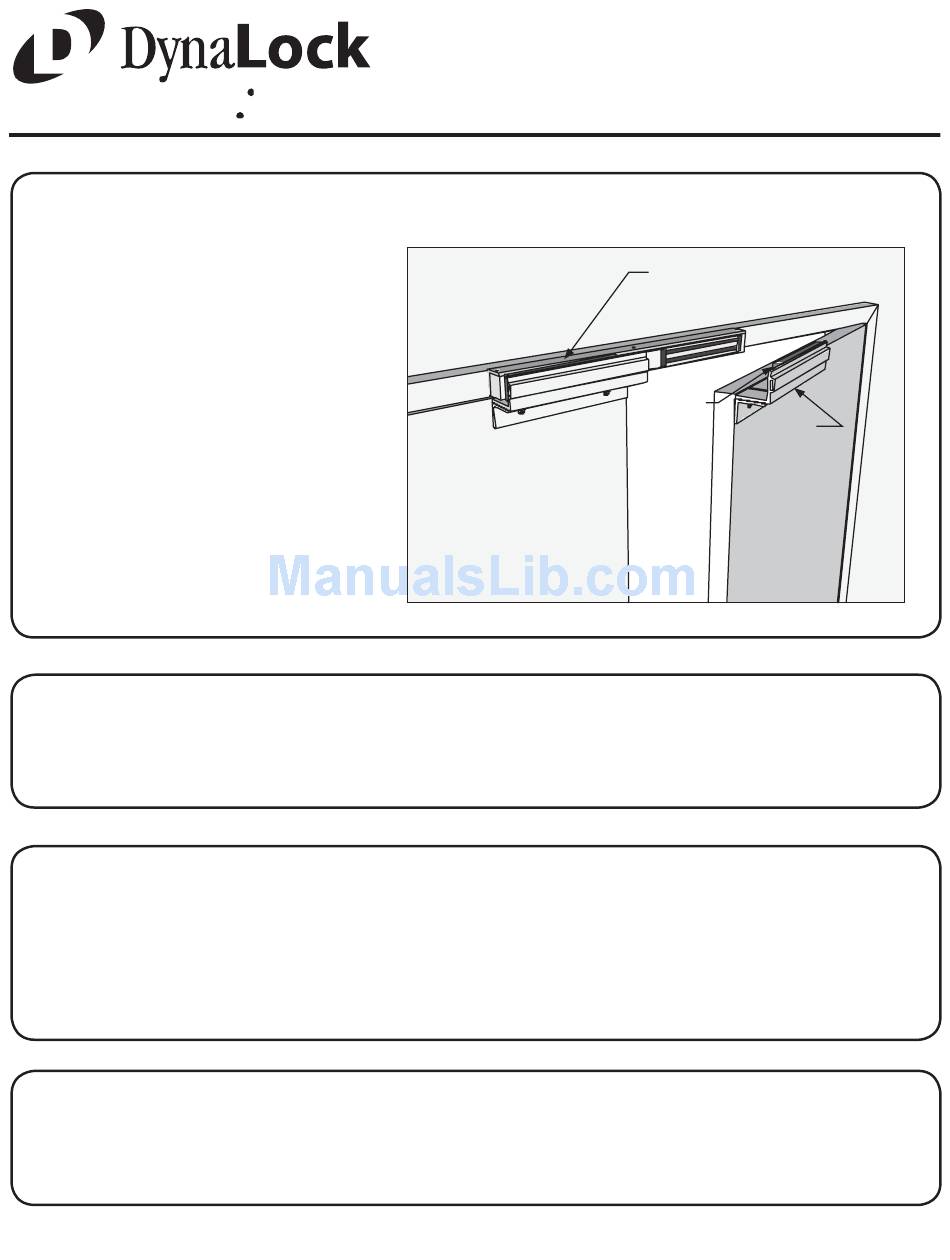

Typical installation of the lock on a double
inswinging door:
Care must be taken that the lock and armature faces are kept free of dirt, rust, paint, or any other obstruction which
may interfere with the lock and armatures making good contact. These faces may be cleaned with a non-abrasive
pad and wiped with an oil dampened cloth.
Familiarize yourself with the door and frame conditions. The lock must mount rigidly to the face of the door frame
header. The door mounted armatures are supplied with hardware that allows them to pivot slightly to compensate
for reasonable misalignment.
NOTE: If this lock is supplied with the DSM2 option be certain that magnets are present inside the armature
housings.
After mechanical installation is complete the lock needs to be wired to a 12 or 24 VDC/VAC power source. Once low
voltage power is supplied the unit is fully operational. All other wiring is for selected options. Refer to the separate
wiring instructions included for further information.
2282-TJ82 MANUAL - FORM 2282TJ-001
MODEL 2282-TJ82 DOUBLE/INSWING
ELECTROMAGNETIC LOCK

INSTALLATION INSTRUCTIONS

INSTALLATION DESCRIPTION
HANDLING
MECHANICAL INSTALLATION
ELECTRICAL INSTALLATION
Page 1
2282-TJ82 LOCK ASSEMBLY
ARMATURE
ARMATURE
BRACKET
2/07
