DynaLock 2280-TJ80 Installation Instructions Manual

705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
The Series 2280-TJ80 is a 1200 pound holding force
top jamb mounted electromagnetic lock, designed to
secure a single inswinging door. The lock requires
installation procedures as described herein and in
the separate wiring instructions included.

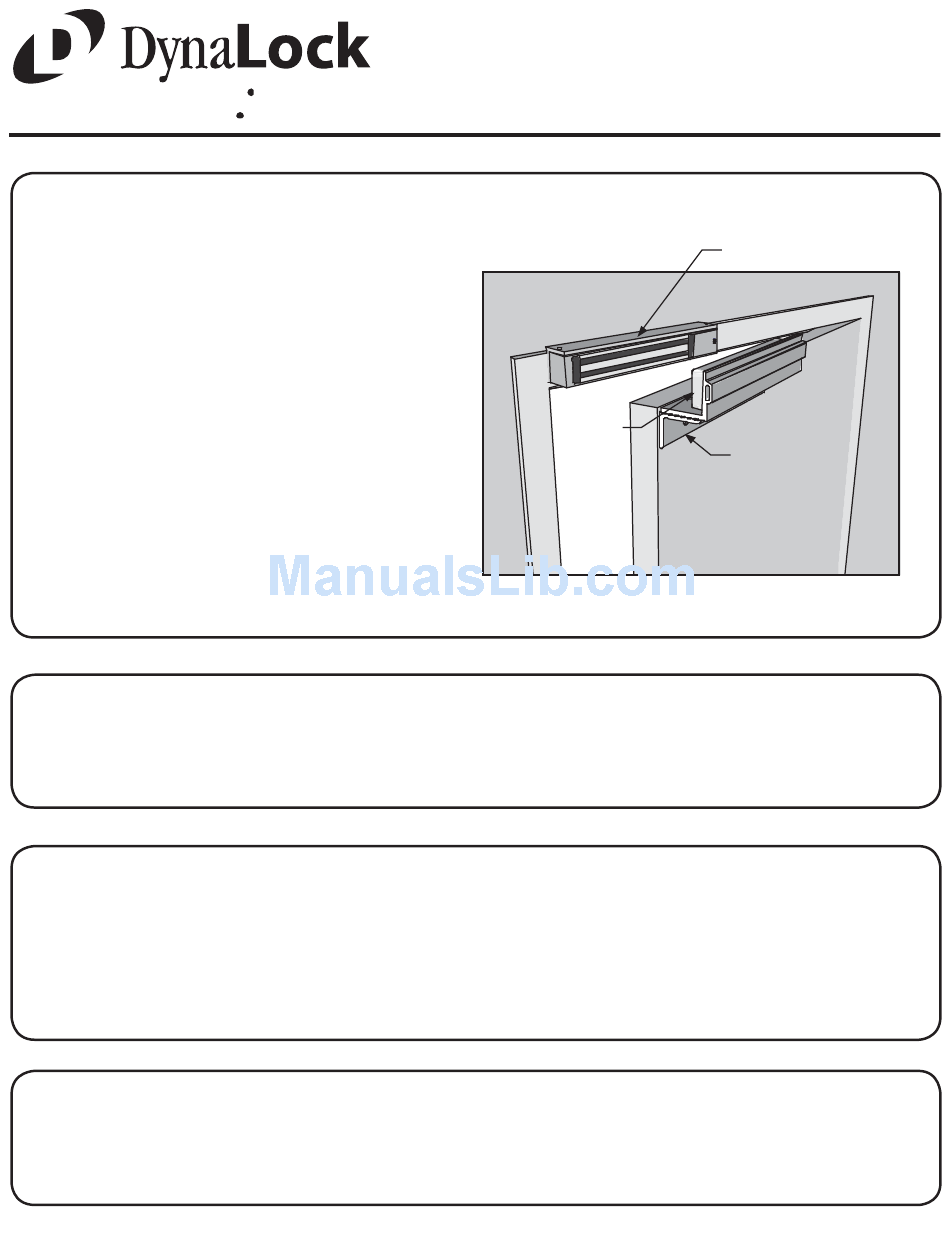

Typical installation of the lock on a LH single
inswinging door:
Care must be taken that the lock face and armature face are kept free of dirt, rust, paint, or any other obstruction
which may interfere with the lock and armature making good contact. These faces may be cleaned with a non-
abrasive pad and wiped with an oil dampened cloth.
Familiarize yourself with the door and frame conditions. The lock must mount rigidly to the face of the door frame
header. The door mounted armature is supplied with hardware that allows it to pivot slightly to compensate for
reasonable misalignment.
NOTE: If this lock is supplied with the DSM option be certain that magnets are present inside the armature
housing.
After mechanical installation is complete the lock needs to be wired to a 12 or 24 VDC/VAC power source. Once low
voltage power is supplied the unit is fully operational. All other wiring is for selected options. Refer to the separate
wiring instructions included for further information.
2280-TJ80 MANUAL - FORM 2280TJ-001
MODEL 2280-TJ80 SINGLE/INSWING
INSTALLATION INSTRUCTIONS
INSTALLATION DESCRIPTION
HANDLING
MECHANICAL INSTALLATION
ELECTRICAL INSTALLATION
Page 1
ELECTROMAGNETIC LOCK
ARMATURE
2280-TJ80 LOCK ASSEMBLY
ARMATURE
BRACKET
4/07
