DynaLock 1661 Instructions

1) Mark center line (CL) of existing device latch from active door to inactive door.
2) Place template on inactive door so that CL mark aligns with CL of template and dotted vertical line of template
aligns with vertical edge of inactive door.
3) Mark the mounting holes for the Double Door Housing (DDH) on the inactive door.
4) Drill two 13/32" (0.406") holes through inactive door.
5) Drill wire access hole into desired area of DDH. Pull two (2) wires through the access hole and connect to
strike. (Polarity is not observed)
6) Temporarily mount 1661 strike to DDH through the slotted holes (Hole C) using 1/2" button head socket cap
screws. (BHSCS)
7) Mount DDH to inactive door using the two (2) 1/4-20x3" screws and 1/4-20" Sex Nuts supplied.
8) Adjust electric strike insert horizontally (If necessary), until Pullman Latch engages when door is closed.
(See Fig. 4 on 0161 installation instructions if further horizontal insert adjustment is necessary)
9) Mark, drill and tap Hole D for 1/4-20x1" BHSCS provided to secure the final location.
705 EMMETT ST. P.O.BOX 2728 BRISTOL, CT 06011-2728 USA PHONE: 860-582-4761 FAX: 860-585-0338 EMAIL INFO@DYNALOCK.COM

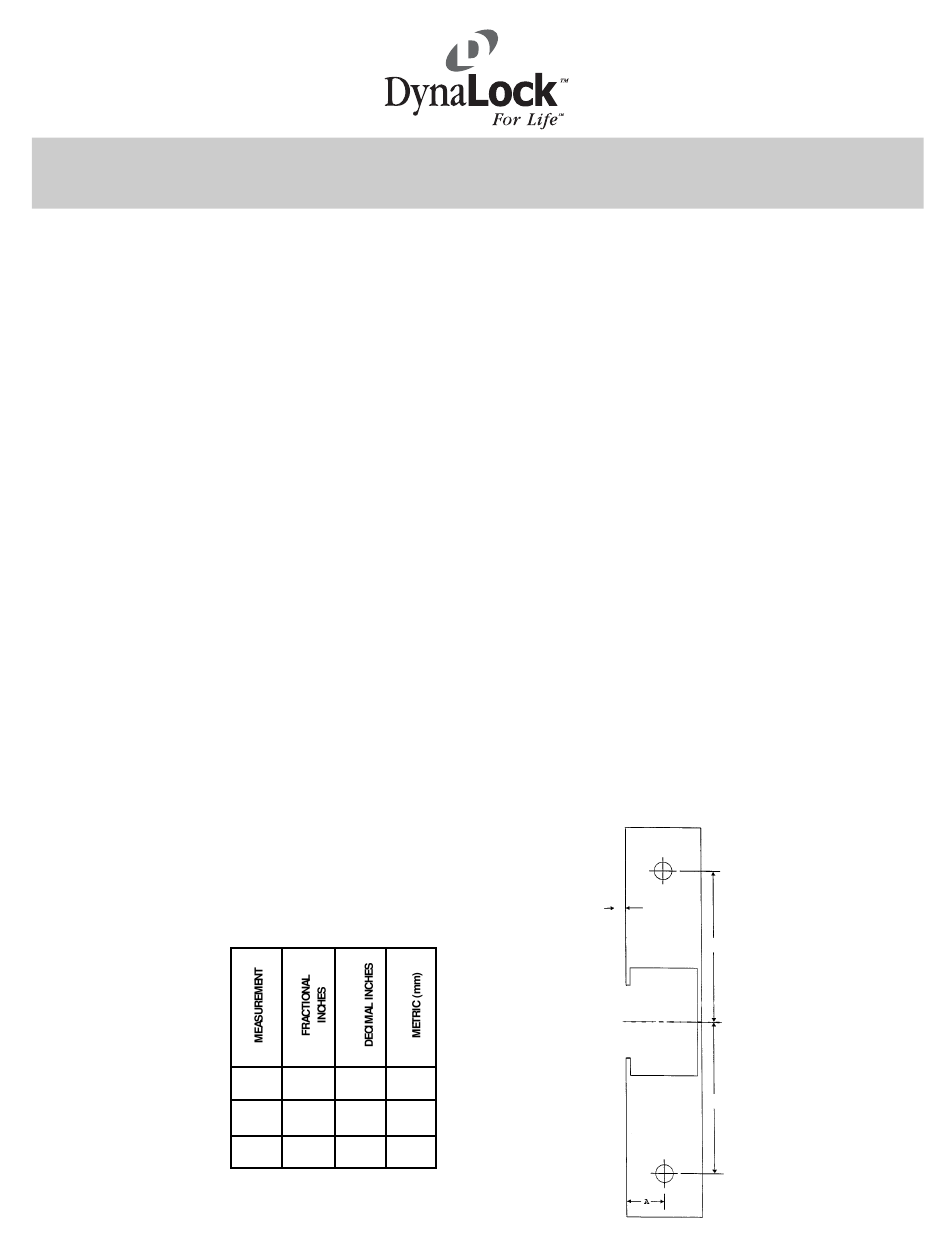

1661 DOUBLE DOOR HOUSING
Instructions
A 27/32 .844 21.43
B 3-1/2 3.500 88.90
C 1/4 0.250 6.35
©2005 DYNALOCK WWW.DYNALOCK.COM
13/32"
c
(0.406")
B
C L
B
13/32"
(0.406")
