38/73
Bosch Rexroth AG
Installation
7.5
Control section
7.5.1
HCS01
Connection diagram of HCS01 control section
Injection molding control (IMC system function)
HCS01 with master communication, IMC system function
1)
Connection of other master communications: See
7.5.3 "Connection points for master communication" on page
45

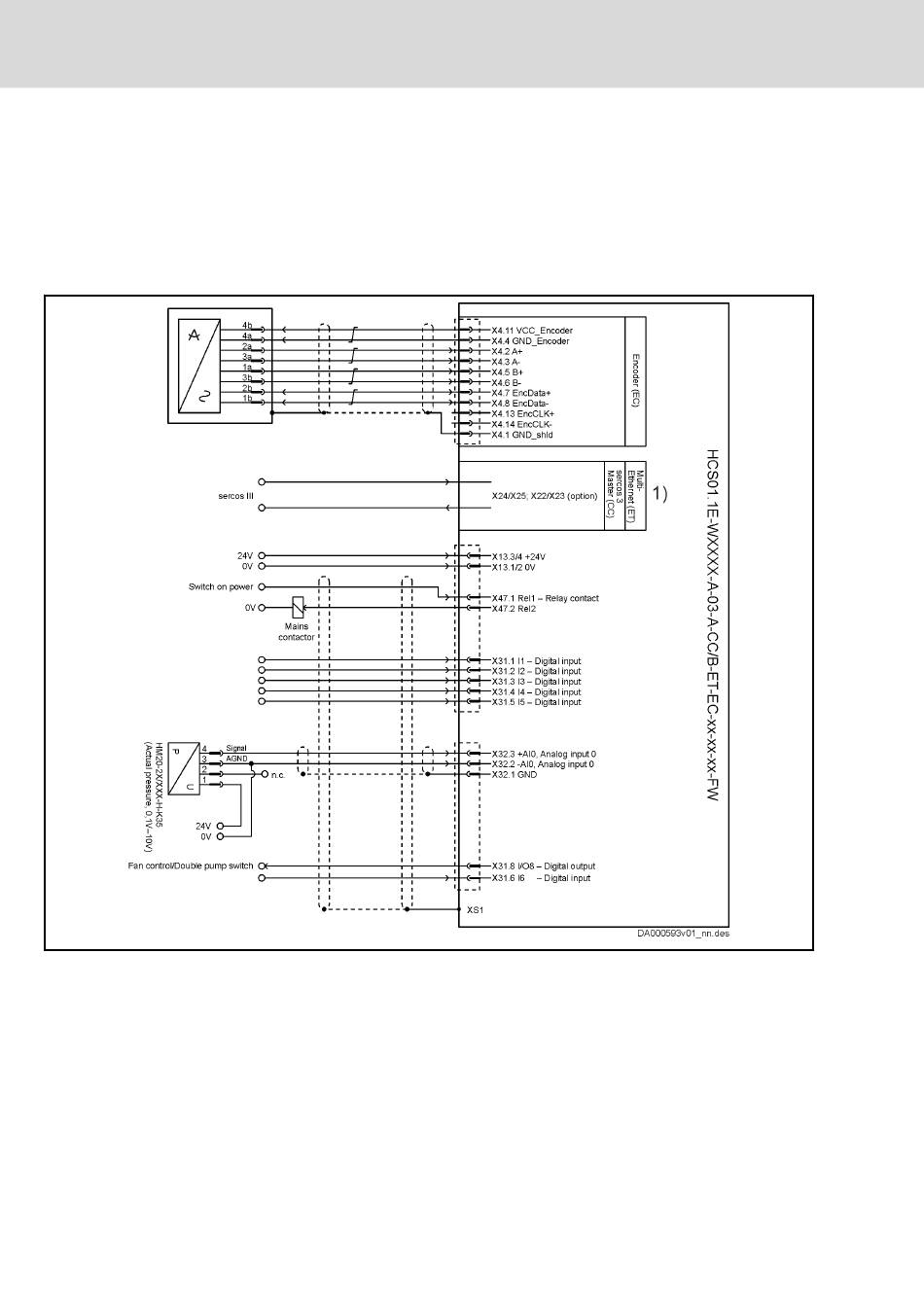

Fig. 7-5:
HCS01 control section connection diagram with master communica‐
tion, IMC system function
DOK-SYTROX-SVP7020-I*C-IT01-EN-P
Sytronix SvP 7020 IMC Speed Variable Pump Drives
