Installation
Do not interchange the cores for A and B.
●
Press cable sheath between both clamps
●
Screw on both cores in screw terminals
1)
Switch position for first slave and last slave in PROFIBUS-DP
2)
Cable shield must have direct contact to metal

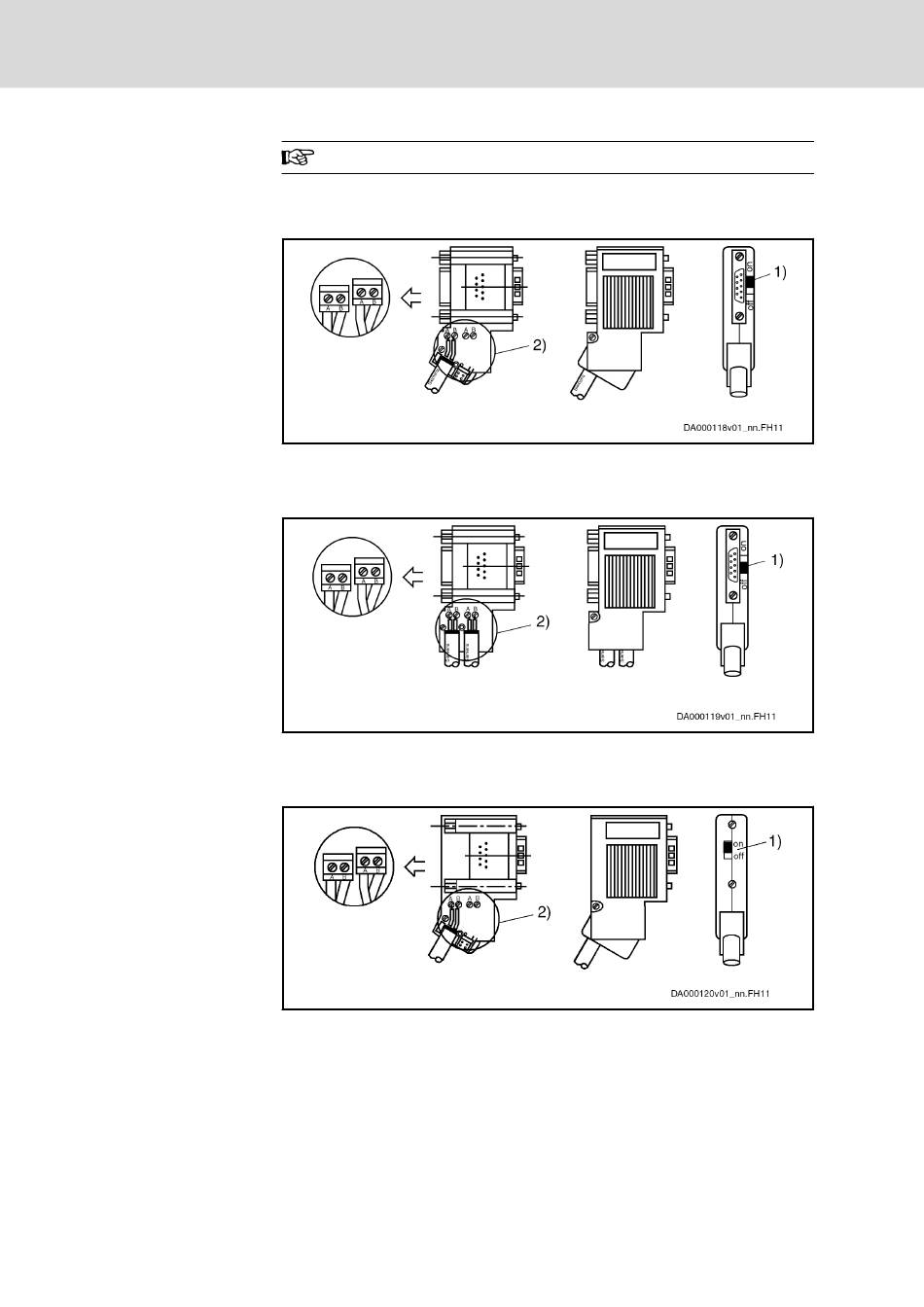

Fig. 7-12:
Bus connection for first and last slave, bus connector with 9-pin D-
sub female connector, INS0541
1)
Terminating resistor is off
2)
Cable shield must have direct contact to metal
Fig. 7-13:
Bus connection for all other slaves, bus connector with 9-pin D-sub
female connector, INS0541
1)
Switch position for first slave and last slave in PROFIBUS-DP
2)
Cable shield must have direct contact to metal
Fig. 7-14:
Bus connection for first and last slave, without 9-pin D-sub female
connector, INS0540
