Installation
CSB02.1B/CSH02.1B without master communication, with option DA,
system function IMC
*
Shield connection on power section
Fig. 7-8:

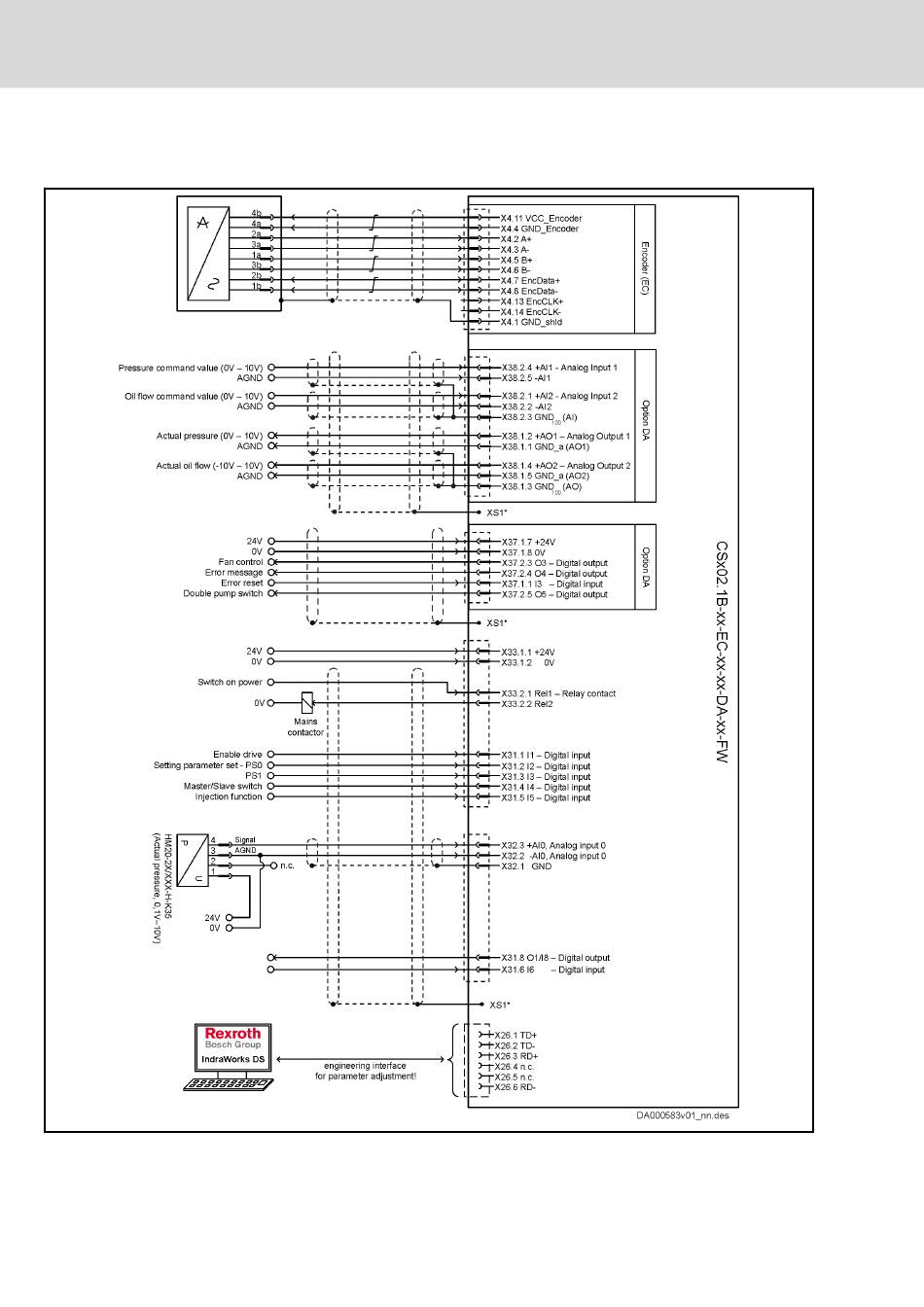

CSB02.1B/CSH02.1B connection diagram without master communi‐
cation, with DA option, IMC system function
DOK-SYTROX-SVP7020-I*C-IT01-EN-P
Sytronix SvP 7020 IMC Speed Variable Pump Drives
