28/73
Bosch Rexroth AG
Assembly
6.3
Pressure transducer HM20-2X/XXX-H-K35
Title
HM20-2X pressure transducer for hydraulic applications
●
Assemble the pressure transducer in suspended position (hydraulic con‐
nection at the top). In this position the pressure transducer is optimally
ventilated.
●
Do not install an additional valve in the line between the pump and the
pressure transducer.
●
Connect a pressure transducer with a sufficient line diameter (no minim‐
ess connections!).

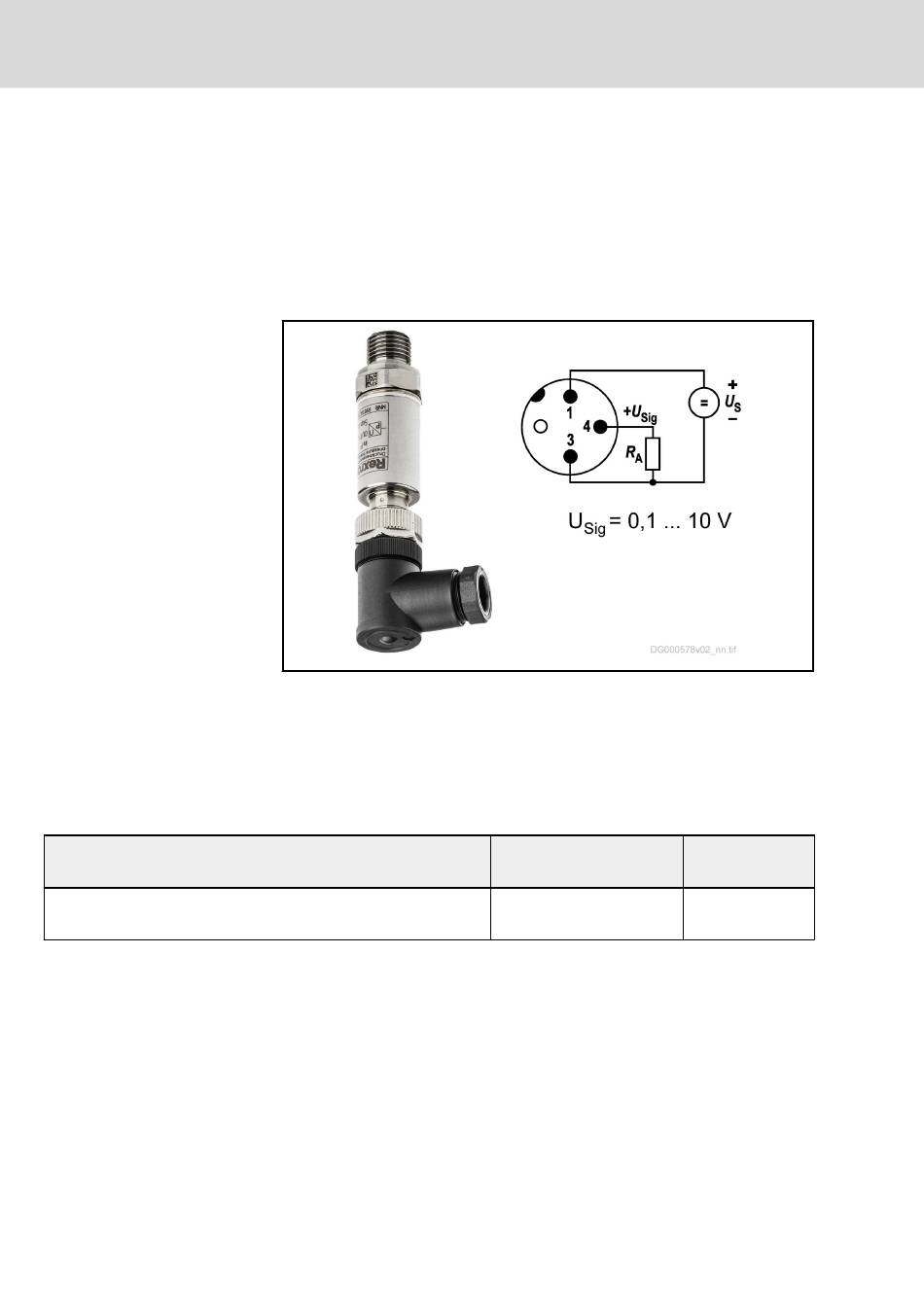

Fig. 6-1:
Pressure transducer HM20-2X/XXX-H-K35 (with voltage output) and
flange socket (angled, 4-pin, M12x1)
Connection of pressure transducer on the control section:
See
chapter 7.5 "Control section" on page
See documentation of the component:
Tab. 6-3:
Documentation, pressure transducer
DOK-SYTROX-SVP7020-I*C-IT01-EN-P
Sytronix SvP 7020 IMC Speed Variable Pump Drives
38.
Document type
Data sheet
Material number
en (de)
RE 30272
(RD 30272)
