2 Button Remote Security System
FEATURES :

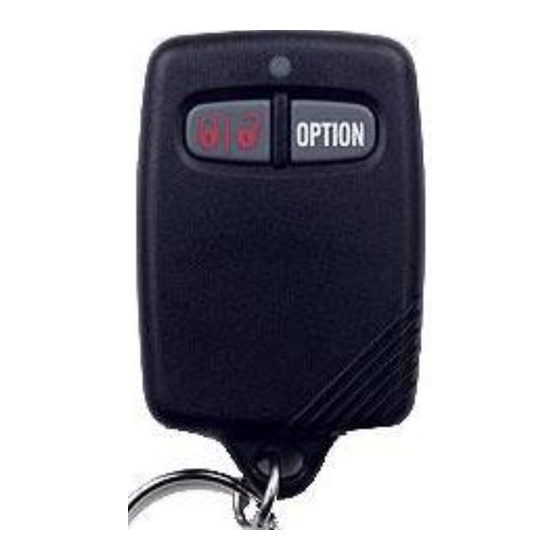

2 Two Button Programmable RF Transmitters
Two Channel Receiver ( capable of accepting 4 transmitters )
Anti-scan Technology
Remote Panic in all modes
Protected Valet
7 Function LED - Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming
Intrusion Alert with Memory
Audible Arm / Disarm / Defective Zone / Tamper Confirmation
Instant Siren Activation
Low Current Horn Output
True Last Door Arming ( hardwire only )
Defective Zone By - Pass
Hardwire or Voltage Sense Selectable
Active or Passive Arming Selectable
Programmable Auto Lock On / Off
Programmable Auto Unlock On / Off
Programmable Door Lock Pulse Duration 1 Second / 3.5 Seconds
Programmable Active or Passive Door Locks
User Programmable Permanent Chirp Delete
On Command RF Chirp Delete from Transmitter
6 Tone Multi - Tone Siren
RF Inhibit with ignition on
Parking Light Flasher
OPTIONS :
Single or Dual Stage Shock Sensor
Starter Disable
Remote Trunk Release
Remote Keyless Entry
Multiple Vehicle Capable
Remote Starter
Remote Power Window Roll Up
Remote Garage Door Interface
Model PRO-9342FT
Owner's Manual
Page 1
Advertisement
Table of Contents
Related Manuals for Audiovox PRO9342FT3
Summary of Contents for Audiovox PRO9342FT3
- Page 1 2 Button Remote Security System FEATURES : 2 Two Button Programmable RF Transmitters Two Channel Receiver ( capable of accepting 4 transmitters ) Anti-scan Technology Remote Panic in all modes Protected Valet 7 Function LED - Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming Intrusion Alert with Memory Audible Arm / Disarm / Defective Zone / Tamper Confirmation Instant Siren Activation...
- Page 2 ARMING THE SYSTEM - ACTIVE 1. Turn off the engine, exit the vehicle, and close all doors, hood lid, and trunk lid. 2. Press and release the Lock/"Arm" / Unlock/"Disarm" button on the keychain transmitter. Red dash mounted L.E.D. begins to flash slowly. Parking Lights flash one time.
- Page 3 sound. The alarm will continue to sound for 30 seconds, then stop and continue to monitor all protected entry points. If the thief left a door opened, the alarm will sound for six 30 second cycles, remain armed and ignore that triggered zone. Whenever the system is armed, the red dash mounted L.E.D.
- Page 4 Parking Lights flash two times. If the parking lights flashed three times, then the alarm was triggered in your absence. Before turning the key on, examine the L.E.D. to identify which zone was triggered. Siren/Horn does not sound. If the siren and or horn sounds 4 chirps, then the alarm was triggered in your absence.
- Page 5 NOTE: If the siren/horn chirps two times, regardless of the valet switch operation as described above, then the horn and siren chirps have been turned off via programming features 7 & 8. Contact your installation center or Audiovox technical department for information on how to reinstate the chirp feature through programming.
- Page 6 Auto Unlock with ignition key Passive Arming No Lock in passive mode Hardwire doors, hood, and trunk Siren Activation Horn Activation © 1999 Audiovox Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 PASSIVEARMING ARMED DISARMED VALET MODE INTRUSION ZONE 3 INTRUSION ZONE 2...
Need help?
Do you have a question about the PRO9342FT3 and is the answer not in the manual?
Questions and answers
Valet switch will not disarm the system after disconnecting the truck's battery. 2000 Tacoma Prerunner V6
The valet switch will not disarm the Audiovox PRO9342FT3 system after disconnecting the battery in a 2000 Tacoma Prerunner V6 because the system must first be disarmed before entering valet mode. If the battery is disconnected while the system is armed, it may rearm or enter a locked state when power is restored. In this case, the valet switch cannot override the system unless it is already disarmed. To override manually, the ignition must be turned on and the specific override procedure must be followed.
This answer is automatically generated
