Audiovox PRO-OE3B370 Programming Manual

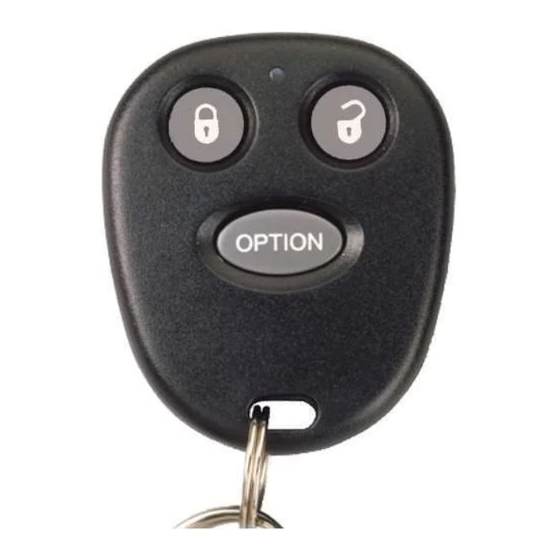

The transmitters included with the security system have been pre-programmed
at the factory, with each button pre-assigned to control a specific function of the
security system. Although the security system in the vehicle has either a 3 or 4
channel receiver, depending on the model, the transmitters included with the
system are capable of transmitting 7 distinct signals. This allows you to program
each transmitter to more than one vehicle in two car families and also allows you
to change which button(s) control certain functions of the system.
(Example: Transmitter channel 5 can be programmed to activate Receiver
channel 2.) Refer to the chart below for access to each of the transmitter channels,
and for the standard factory button assignments.
TRANSMITTER
CHANNEL BUTTON CHANNEL
1 1
2 2
3 3
4 & 4
5 & 5
6 & 6
All 3
7 7
Buttons
Some of the more common accessories for these additional channels are;
AS 9554
AS 9075
AS 9153
AS 9256

TRANSMITTER PROGRAMMING GUIDE

Model : PRO-OE3B3
SYSTEM RECEIVER
FUNCTION
Remote Arm
Remote Emergency Panic
Remote Door Lock
Remote Disarm
Remote Emergency Panic
Remote Door Unlock/Unlock 2
Single Push Pulsed Output for Optional Accessory
Or Double Push For Additional Optional Accessory
Single Push Pulsed Output for Optional Accessory
Or Push And Hold For Extended Output
Single Push Pulsed Output for Optional Accessory
Or Push And Hold For Extended Output
RF Channel For Options
RF Channel For Options
Remote Garage Door Interface
Remote car starter
Remote window roll up
Remote trunk release relay
