Transmitter Programming Guide
These transmitters make use of icons (symbols) to identify the reaction
your security system/keyless entry/and or remote start system, where
applicable, will have when any icon (button) is pressed. These
icons are programmed at time of installation to meet the needs of the
individual and to complement the vehicle that the system is installed in.
To replace a transmitter or add transmitters, please follow the
programming instructions listed on the pages of this manual.
RECEIVER
BUTTON
CHANNEL
1
2
1
3
3
*4
*5
* Where So Equipped

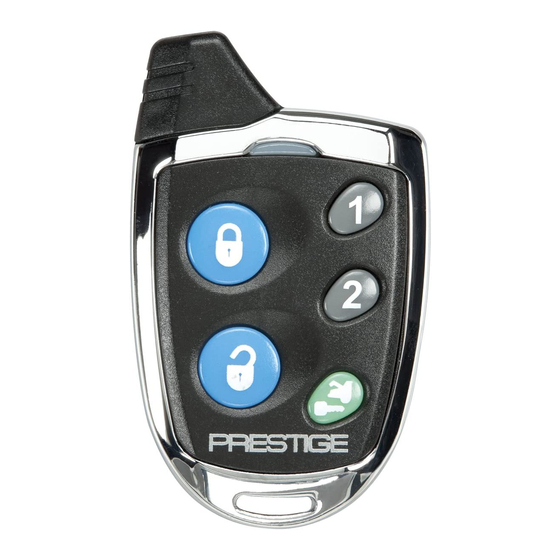

Model 105BP
SYSTEM FUNCTION
Lock And Arm Alarm, also initiate and
terminates *Panic
Unlock And Disarm, also initiates and
terminates *Panic. Programmable to
unlock drivers door and or all doors.
Lock and arm/unlock and disarm. May
be programmed to unlock driver's door
or all doors. Also will initiate and
terminate *Panic.
Pulsed or switched output to control
Remote Trunk Release or optional
device connected to channel 3.
When pressed and release two times,
will provide pulsed output or activate the
Remote Start option when installed.
When so equipped, this button can be
used to operate an optional device
connected to channel 4.
When so equipped, this button can be
used to operate an optional device
connected to channel 5.
1
128-8777
1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Audiovox Prestige 105BP
Summary of Contents for Audiovox Prestige 105BP
- Page 1 Model 105BP Transmitter Programming Guide These transmitters make use of icons (symbols) to identify the reaction your security system/keyless entry/and or remote start system, where applicable, will have when any icon (button) is pressed. These icons are programmed at time of installation to meet the needs of the individual and to complement the vehicle that the system is installed in.
- Page 2 PROGRAMMING TRANSMITTERS: NOTE: It is important to remember that during the programming mode, each individual step must be completed within 15 seconds of the previous step. If the 15 second time limit expires between steps, the unit will automatically exit the program mode. This is indicated by a long chirp from the siren.
- Page 3 mounted LED will Flash 3 times, indicating that the unit is ready to accept programming for channel # 3 which is the trunk re- lease/alternate output channel of the system. 8) Press and hold the trunk/key symbol button of the transmitter you wish to program for 4 seconds or until a long chirp is heard from the siren.
- Page 4 NOTE: Channels 6 and 7 can be used as a separate output to control a function other than driver priority. Simply program- ming any unused transmitter button other than the unlock button will allow complete independent control of these outputs. ERASING TRANSMITTERS IF THEY HAVE BEEN LOST OR STOLEN: NOTE: Before you begin to erase the lost or stolen transmitter(s), have all transmitters available that you wish to remain programmed.
- Page 5 and hold until a long chirp is heard. This action forces the unit to erase all stored codes of that transmitter. The unit then exits the program mode the siren emits the program mode exit chirp pattern. All transmitter buttons for that transmitter must now be reprogrammed.
- Page 6 After removing the three #0 point phillips screws shown pry apart case with the edge of a finger nail or a small common screwdriver. Keep hold of the metal key ring loop to prevent it's loss as it will separate from the transmitter case.
- Page 7 Credit card purchasers can order additional or replacement transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and follow the instructions from the operator interface. Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y., 11788 Attn.: TRANSMITTER DEPARTMENT 128-8777...
- Page 8 This Page Intentionally Blank © 2010 Audiovox Electronics Corporation, Hauppauge, NY 11788 128-8777 128-8777 8 of 8...
