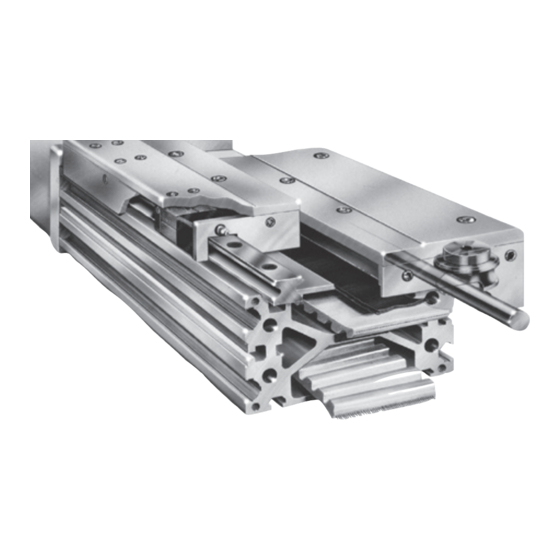

- Page 1 BELT DRIVEN LINEAR UNITS LINEAREINHEIT MIT ZAHNRIEMENANTRIEB ROBOT Use and maintenance - Bedienungs- und Wartungsanleitung...
- Page 2 Lubrication - Schmierung 1 • Insert grease gun into the specific grease nipples. Linear units type SP with linear ball guides Lineareinheit Typ SP mit Kugelumlaufführung SP-Type: Repeat this operation every 5000 km or 1 year of use based on the In linear units type SP maintainance-free linear ball guides are used.
- Page 3 Operations common to each general maintenance phase Prior operations - Vorbereitende Arbeitsschritte Vorgehensweise für jeden Wartungsschritt • Mark the take-up screws of the belt tightener. 2a • Unscrew the two belt tightener safety screws. • Back off the two screws by 6 turns. •...
- Page 4 First of all carry out the operations indicated at points 2 - 3 - 4 - 5 Protection belt replacement - Austausch des Abdeckbandes Führen Sie zuerst die Schritte 2 - 3 - 4 - 5 aus 6/7 • Remove the screws of the front panel and sides of the carriage.
- Page 5 First of all carry out the operations indicated at points 2 - 3 - 4 - 5 -6 -7 - 8 - 9 Drive belt replacement - Zahnriemenwechsel Führen Sie zuerst die Schritte 2 -3 - 4 - 5 - 6 - 7 - 8 - 9 aus 12/13 •...
- Page 6 Replacement of the ball re-circulation slidin lation sliding blocks - Austausch des Laufwagens der Kugelumlauf-Führung FIRST OF ALL CARRY OUT THE OPERATIONS INDICATED AT POINTS 6 - 7 - 8 - 9 FÜHREN SIE ZUERST DIE SCHRITTE 6 - 7 - 8 - 9 AUS 18 •...
- Page 7 Reduction unit side replacement or chang ent or change - Austausch des Getriebes FIRST OF ALL CARRY OUT THE OPERATIONS 20 • Loosen the screws of the tapered spline of the drive pulley TAKING INDICATED AT POINTS 2 - 3 - 4 - 5 CARE to mark their position on the shaft of the reduction unit.
- Page 8 CE ROBOT Linear unit - Components Lineareinheit ROBOT CE - Komponenten SP ROBOT Linear unit - Components Lineareinheit ROBOT SP - Komponenten 1 Anodised aluminium extrusion 1 Anodised aluminium extrusion 2 Driving head 2 Driving head 3 Driving pulley 3 Driving pulley 4 Idle pulley with take-up unit 4 Idle pulley with take-up unit 5 Ground steel rods...
- Page 9 Warnings - Anmerkungen AVOID DAMAGE. ALWAYS USE APPROPRIATE TOOLS. ATTENTION WHEN INSTALLING AND MOVING. BENUTZEN SIE IMMER GEEIGNETES WERKZEUG UM HEAVYEQUIPMENT. BESCHÄDIGUNGEN ZU VERMEIDEN. VORSICHT BEI TRANSPORT UND MONTAGE VON SCHWEREN GEGENSTÄNDEN. PAY ATTENTION TO MOVING PARTS. DO NOT REST OBJECTS ON THE AXLE.
