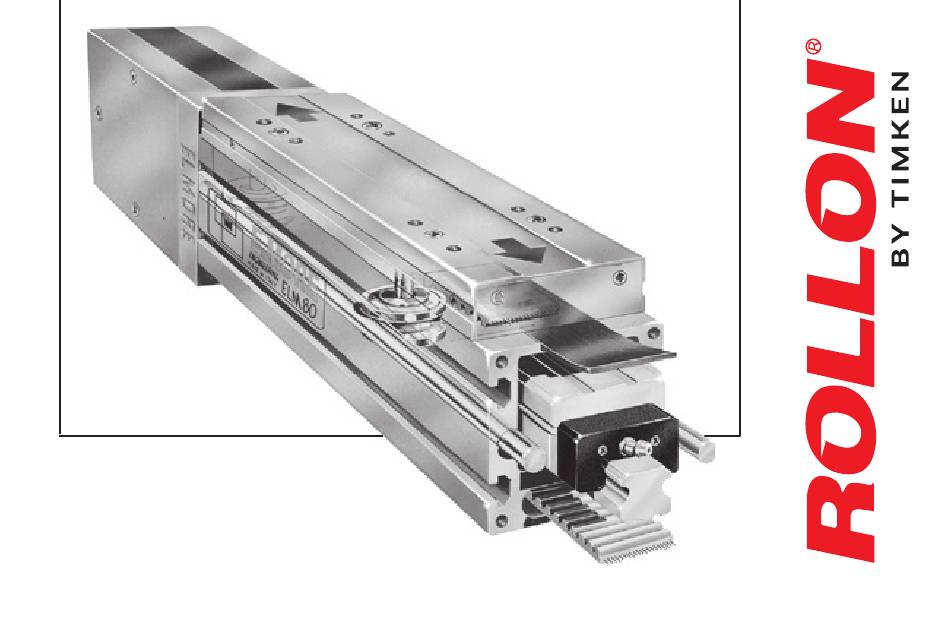

- Page 1 BELT DRIVEN LINEAR UNITS LINEAREINHEITEN MIT ZAHNRIEMENANTRIEB Use and maintenance - Bedienungs- und Wartungsanleitung...
- Page 2 Lubrication - Schmierung • Insert grease gun into the specific grease nipples. Linear units type SP with linear ball guides Lineareinheit Typ SP mit Kugelumlaufführung SP-Type: Repeat this operation every 5000 km or 1 year of use based on the In linear units type SP maintainance-free linear ball guides are used.
- Page 3 Operations common to each general maintenance phase. Prior operations - Vorbereitende Arbeitsschritte Vorgehensweise für jeden Wartungsschritt 1 • Slaken the A fixing screws and mark the take-up screws of the belt tightener. 2 • Back off the two screws by 6 turns. 3 •...
- Page 4 First of all carry out the operations indicated at points 1- 2 - 3 - 4 Protection belt replacement - Austausch des Abdeckbandes Führen Sie zuerst die Schritte 1 - 2 - 3 - 4 aus 5 • Loosen and remove the upper screws of the carriage and remove this checking positioning of the front brushes.
- Page 5 First of all carry out the operations indicated at points 1 - 2 - 3 - 4 - 5 - 6 Drive belt replacement - Zahnriemenwechsel Führen Sie zuerst die Schritte 1 - 2 - 3 - 4 - 5 - 6 aus 9 •...
- Page 6 Replacement of bearings or ball re-circulation sl n sliding blocks - Austausch des Laufwagen der Rollen- oder Kugelumlaufführung 14 • Release the carriage from the guides and replace FIRST OF ALL CARRY OUT THE OPERATIONS INDICATED UNTIL HERE the bearings or sliding blocks. During re-assembly, particular attention must be paid FÜHREN SIE ZUERST DIE SCHRITTE AUS, DIE BIS HIERHIN to alignment and mechanical tolerances...
- Page 7 Reduction unit side replacement or change - Austausch des Getriebes 15 • Loosen the screws of the tapered spline of the drive pulley TAKING CARE to mark their position on the shaft of the reduction unit. 16 • Slide out the pulley. FIRST OF ALL CARRY OUT THE OPERATIONS Remove the screws fastening the reduction unit to the drive INDICATED AT POINTS 1 - 2 - 3 - 4...
- Page 8 ELM CI Linear unit - Components Lineareinheit ELM CI - Komponenten ELM SP Linear unit - Components Lineareinheit ELM SP - Komponenten 1 Anodised aluminium extrusion 1 Anodised aluminium extrusion 2 Driving head 2 Driving head 3 Driving pulley 3 Driving pulley 4 Idle pulley with tensioning unit 4 Idle pulley with tensioning unit 5 Linear guide rail...
- Page 9 Warnings - Anmerkungen AVOID DAMAGE. ALWAYS USE APPROPRIATE TOOLS. ATTENTION WHEN INSTALLING AND MOVING. BENUTZEN SIE IMMER GEEIGNETES WERKZEUG UM HEAVYEQUIPMENT. BESCHÄDIGUNGEN ZU VERMEIDEN. VORSICHT BEI TRANSPORT UND MONTAGE VON SCHWEREN GEGENSTÄNDEN. PAY ATTENTION TO MOVING PARTS. DO NOT REST OBJECTS ON THE AXLE.
