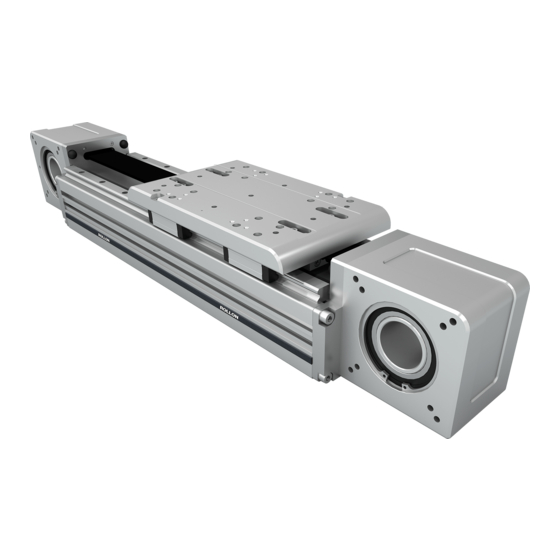

- Page 1 BELT DRIVEN LINEAR UNITS LINEAREINHEITEN MIT RIEMENANTRIEB R-SMART Use and maintenance - Bedienungs-und Wartungsanleitung...
- Page 2 Lubrication - Schmierung Insert the tip of the grease gun in the specific grease blocks. Die Schmierung erfolgt an den einzelnen Schmiernippeln der Laufwagen. Repeat this operation every 2000 km or 1 year of use based on the Das Schmierintervall beträgt 2000 km gefahrener Weg oder eine Be- value reached first.
- Page 3 Preliminary operations - Vorbereitende Schritte Preliminary operations - Vorbereitende Schritte 1 • Slacken the fixing screws on the upper side of the carriage. 3 • Remove the fixing screws. 3 • Entfernen Sie die Befestigungsschrauben. 2 • Mark the position of the screws on the tensioning device and slacken them with the same number of revolutions.
- Page 4 Replacement of the driving belt - Zahnriemenwechsel Idle removing - Demontage des Umlenkkopfes BEFORE STARTING, PERFORM THE OPERATIONS IN POINTS 1-2-3 FÜHREN SIE ZUNÄCHST DIE SCHRITTE 1-2-3 AUS FIRST OF ALL CARRY OUT THE OPERATIONS INDICATED AT POINTS 1-2-3 5 • In order to remove the head, unscrew the four screws 5 •...
- Page 5 Sliding block replacement - Ersetzen der Läufer Gearbox assembly - Montage eines Planetengetriebes - Place the axis as shown in the figure with the gear assembly component facing upwards. 7 • Remove the fixing screws on the top of the carriage. - Assemble the flange on the gear and tighten the screws until the torques shown in Table 1 are reached.
- Page 6 Components / Komponenten 1 Head 2 Pulley unit 3 Transmission belt 4 Profile 5 Ball recirculating linear guide 6 Ball recirculating block 7 Runner 8 Belt tightener 1 Kopf 2 Riemenscheibe mit Lagerung 3 Zahnriemen 4 Aluminiumprofil 5 Linearführungsschiene 6 Linearführungswagen 7 Laufwagen 8 Riemenspanner...
- Page 7 Warnings - Anmerkungen AVOID DAMAGE. ALWAYS USE APPROPRIATE TOOLS. ATTENTION WHEN INSTALLING AND MOVING. BENUTZEN SIE IMMER GEEIGNETES WERKZEUG UM HEAVYEQUIPMENT. BESCHÄDIGUNGEN ZU VERMEIDEN. VORSICHT BEI TRANSPORT UND MONTAGE VON SCHWEREN GEGENSTÄNDEN. PAY ATTENTION TO MOVING PARTS. DO NOT REST OBJECTS ON THE AXLE.
