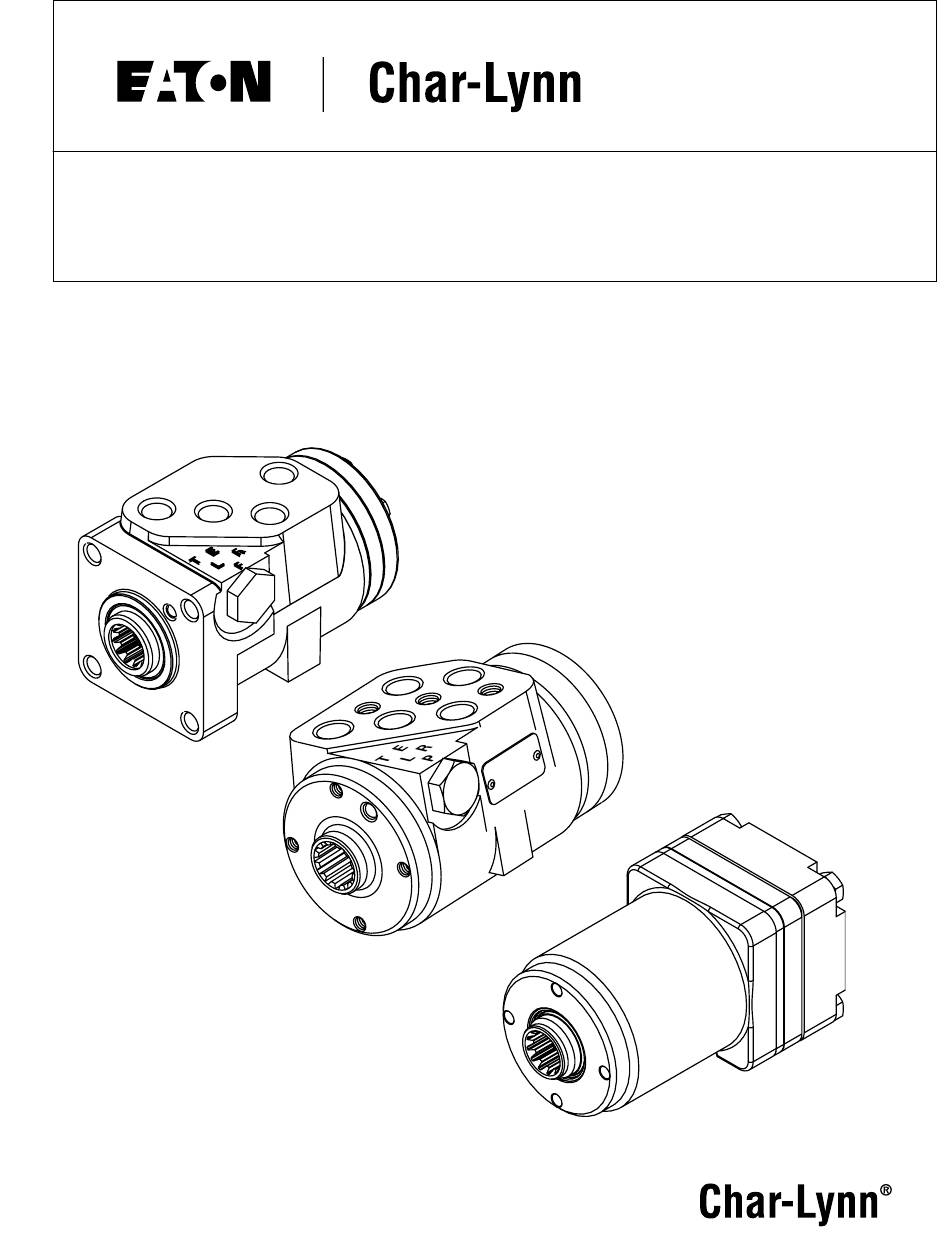

- Page 1 Power Steering Repair Information 5 Series Steering Control Units Square Housing with Side Ports Round Housing with Side Ports Round Housing with End Ports...
- Page 2 Spring Retaining Ring* O-ring O-ring** Seal Seal** Ring** REPLACEMENT PART NO. DESCRIPTION 64456-00 Centering Spring Kit (contains parts with *) 64455-00 Seal Kit (contains parts with **) EATON Char-Lynn Power Steering, Steering Control Units 001, 5 Series C-STCU-TS002-E August 2003...
- Page 3 Figure 1 O-ring O-ring Spacer O-ring Seal O-ring Plug Manual Steering Check/Relief Valve Spool and Sleeve Thrust Bearing Housing Quad Seal Figure 2 Dust Bearing Race (2) Seal EATON Char-Lynn Power Steering, Steering Control Units 001, 5 Series C-STCU-TS002-E August 2003...
- Page 4 Use just enough clamping ings with clean hydraulic fluid. force to hold the housing securely. Figure 4 Figure 5 Thrust Bearing Dust Seal and Race (2) Quad Seal EATON Char-Lynn Power Steering, Steering Control Units 001, 5 Series C-STCU-TS002-E August 2003...
- Page 5 17 Nm [150 lb-in]. 22. Install the drive, be sure 27 . Install the spacer. the slot in the drive engages the pin. EATON Char-Lynn Power Steering, Steering Control Units 001, 5 Series C-STCU-TS002-E August 2003...
- Page 6 Ring* Manual O-ring** Steering Plug O-ring** Check/Relief Valve REPLACEMENT PART NO. DESCRIPTION 64456-000 Centering Spring Kit (contains parts with *) 64455-000 Seal Kit (contains parts with **) EATON Char-Lynn Power Steering, Steering Control Units 001, 5 Series C-STCU-TS002-E August 2003...
- Page 7 Manual O-ring O-ring Steering Plug Check/Relief Valve Spacer Dust Seal O-ring Seal Spool and Sleeve Thrust Bearing Figure 2 Quad Seal Housing Dust Seal Bearing Race (2) EATON Char-Lynn Power Steering, Steering Control Units 001, 5 Series C-STCU-TS002-E August 2003...
- Page 8 Use just enough clamping ings with clean hydraulic fluid. force to hold the housing securely. Figure 4 Figure 5 Thrust Bearing Dust Seal and Race (2) Quad Seal EATON Char-Lynn Power Steering, Steering Control Units 001, 5 Series C-STCU-TS002-E August 2003...
- Page 9 26. Lubricate and install a new Note: The holes in SCU will not function. o-ring seal in the groove in the wear plate are the gerotor ring. not symmetrical. EATON Char-Lynn Power Steering, Steering Control Units 001, 5 Series C-STCU-TS002-E August 2003...
- Page 10 EATON Char-Lynn Power Steering, Steering Control Units 001, 5 Series C-STCU-TS002-E August 2003...
