AV Recorder
Quick Start Guide
Thanks for purchasing ezcap271 AV Recorder. The following guides you how to set up. Hope this device will
bring you nice digital experience.
With ezcap271 AV Recorder, you can convert your old video tapes or camcorder tapes to digital format with one
click of button, record and digitalize video from VHS, VCR's, DVD Players, DVR's, Camcorders,Hi8,and Gaming
Systems. Ezcap271 AV Recorder records video directly, no computer required. Includes 8GB memory card inside, and
supports extra Micro SD Card input. Ezcap271 also can convert old music to digital format, and playback video, music
and pictures.

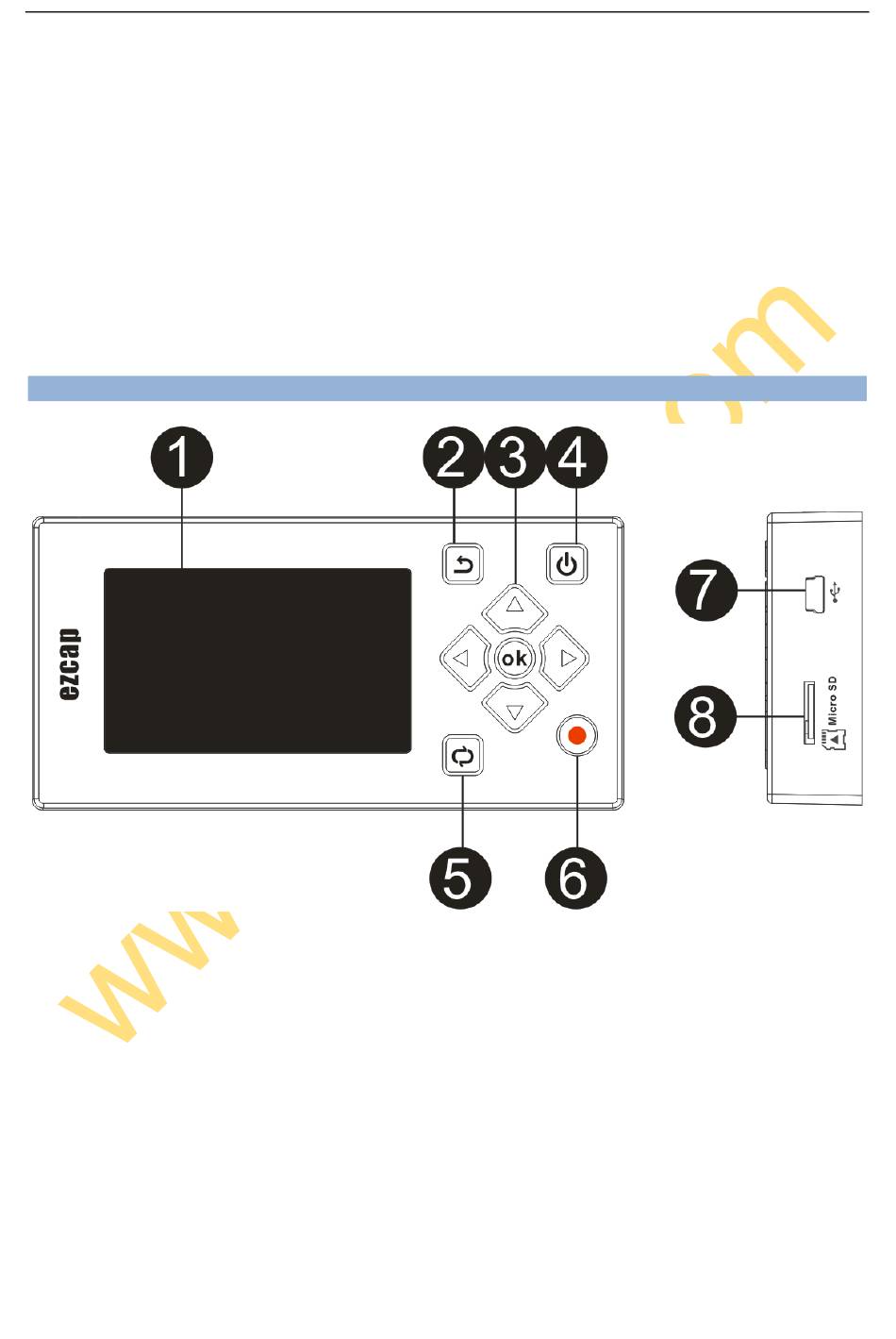

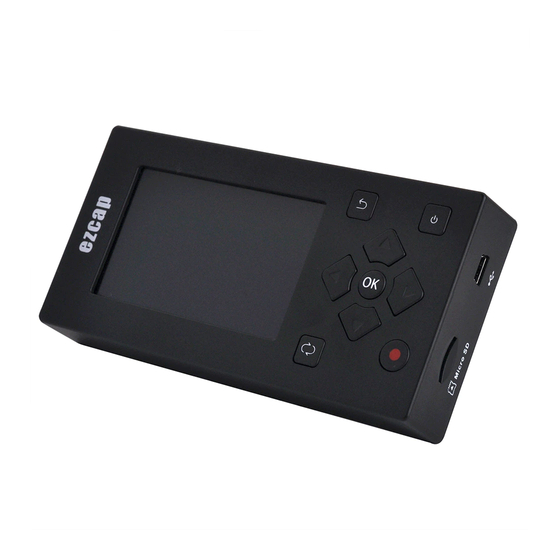

Features:
1. Screen.
2. Return – Return to superior menu. (save recorded file when under recording video or audio menu)
3. Direction and OK button – To operate the menu, and playback.
4. On/Off – Long press (2 seconds) to power on and off.
5. Audio Play Mode –Switch between 6 different play mode.
(Long press to remind you to delete the playing file or not when you play video, music or pictures.)
6. Record Button – In "TV IN" preview the video mode, press to record video (even without video input), press again to
stop and save file.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ezcap271 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EzCAP ezcap271

  • Page 1 Thanks for purchasing ezcap271 AV Recorder. The following guides you how to set up. Hope this device will bring you nice digital experience. With ezcap271 AV Recorder, you can convert your old video tapes or camcorder tapes to digital format with one click of button, record and digitalize video from VHS, VCR's, DVD Players, DVR's, Camcorders,Hi8,and Gaming Systems.
  • Page 2 7. POWER and DATA – Supply 5V DV power with mini USB cable to charge battery, connect to computer to manager files or update firmware. 8. Micro SD card slot – Plug Micro SD card saving record file. 9. AV IN – AV input connection with AV Cable. 10.
  • Page 3: Remote Controller

    REMOTE CONTROLLER Record – In “TV IN” preview the video mode, press to record video (even without video input), press again to stop and save file. Home – Return to home menu. Direction and OK button – To operate the menu, and playback.
  • Page 4 (not in inside storage any more) If want play the media stored on Micro SD, make sure the default path is set to “Card Memory” To remove Micro SD card, just press it again, let it pop-up. POWER, CHARGE AND DATA To charge the battery of this device, use USB cable to connect with 5V DC or PC, will see the charge status on screen.
  • Page 5 Use HDMI cable or 3.5MM to RCA cable (come with the device in box) to connect with HDMI OUT or AV OUT, and another side connects to TV or monitor. When connected (no matter HDMI or AV cable), the screen of ezcap271 will turn off, and the video will show on monitor.
  • Page 6 When you playback with HDMI OUT, plug earphone, the audio will keep playing on TV, does not play at earphone Operate: BASIC MENUS ON SCREEN Long press (2 seconds) to power on ezcap271 (You may need to charge it if it is out of battery), will see: 1. TIME – Shows current time.
  • Page 7: Record Video

    2. FUNCTION MENU, use direction button to choose icons, press OK to enter: Videos – Enter to playback recorded videos. Music – Enter to playback recorded audios. Pictures – Enter to playback pictures. TV IN – Enter to preview input video, and record. Recorder –...
  • Page 8: Video Playback

    Enter “Recorder”, will preview the input audio, press ‘RECORD” button to record audio, press again to stop recording and save file. You also can press “OK” to record, press “OK” again to pause record, press “RETURN” button to save the recorded file. VIDEO PLAYBACK Enter to Videos - TVIN, will see the recorded videos, choose file with direction buttons, press ok to play.
  • Page 9: Picture Playback

    = Repeat once = Repeat all PICTURE PLAYBACK Ezcap271 does not capture still image, but you can copy pictures to memory to view. Enter pictures—PIC to choose and view. DELETE FILE If you want to delete the video, music or picture file, please find the file under Videos, Music or Pictures menu firstly.
  • Page 10 Power Saving - set idle time and sleep time, for saving energy. Date & Time - set date and time. Language - set language of menu, ezcap271 with 7 languages – English, French, German, Japanese, Spanish, Simplified Chinese and Traditional Chinese.
  • Page 11: Specifications

    Enter TV: TV IN - set the input video system, set it same with your video source. TV-OUT - set the output video system, set it same with your TV monitor. SPECIFICATIONS: Connection Interface USB 2.0 Video Input CVBS analogue video by 3.5mm to 3RCA cable Audio Input Analogue L/R audio by 3.5mm audio cable or 3.5mm to 3RCA cable Video...
  • Page 12 Package Contents Device ezcap271 AV Recorder USB cable for power or data, USB power adapter, 3.5mm to 3RCA cable, Remote Others control, 3RCA adapter, Manual Specfication Storage 8GB memory card inside, supports extra Micro SD Card Media Max 32GB, doesn't support NTSF format Record Video: .avi, Audio: .mp3...
  • Page 13 说明手册 感谢购买 ezcap271 视频录制盒,请参考以下说明来设置和使用该产品,并愿这款产品带给你欣喜。. 使用 ezcap271 视频录制盒,你可以将老式磁带录像机或老式磁带摄像机的视频转成数字格式保存, 包括任何带 有 CVBS 模拟视频输出的设备,都可以将视频录制为数字格式保存,包括 VHS,VCR, DVD, DVR, Hi8 和游戏机 等。 ezcap271 视频录制盒,无需电脑,直接录制视频。 它内置 8GB 内存,并支持外接 TF 卡。 ezcap271 视频录 制盒还可以单独录制模拟音乐到数字格式,播放录制的视频、音乐和存进去的图片文件等。 Features: 1. 显示屏 2. 返回 – 返回到上一级菜单 (录制视频或音乐时按下保存录制文件) 3. 方向键和 OK 键 – 操作菜单和播放时的功能键...
  • Page 14 8. TF 卡槽 – 插入 TF 卡来存储文件或播放文件。 9. AV IN – 用配备的 AV 线材连接视频输入源 10. HDMI OUT – 用 HDMI 线材连接电视机等显示屏 11. AV OUT – 用配备的 AV 线材连接电视机 12. 耳机 – 连接耳机 13. RESET – 复位键,按下将会恢复出厂设置。 – 内置扬声器 14. 扬声器...
  • Page 15 20. 快进 21. 返回 – 返回到上一级菜单 (录制视频或音乐时按下 保存录制文件) 22. 静音 23. 加音量 24. 减音量 连接 TF 卡 将 TF 卡按照图片方向插入机器卡槽,此时显示屏将会提示。 为了录制文件的安全,使用前最好将 TF 卡清空并格式化。 Ezcap271 视频录制盒支持 FAT32 和 exFAT 格式, (不支持 NTFS 格式), 最大支持容量 MAX 32GB。 当你插入 TF 卡后,设备会自动将 TF 卡作为录制的存储媒介,而不再将...
  • Page 16 如果想取下 TF 卡,只需再次按下 TF 卡就会弹出来, 然后拔出来即可。 电源、充电和数据传输 机器内含锂电池,如使用电量低则需要 充电。请使用附带的 USB 线和电源给机器 充电,或用附带的 USB 线连接电脑 USB 接 口充电。 充电时显示屏会显示充电状态。 使用 USB 电源连接机器将会有两项选择: 充电 后台充电 充电则单单显示屏显示充电状态,后台充电 则表示一边操作机器一边充电 使用 USB 线连接电脑将会有三项选择: 供电及数据传输 充电 后台充电 充电、后台充电与上同。供电及数据传输表 示你可以将内置存储器和卡存储器的内容拷贝到 电脑里,也可以拷贝电脑文件放进存储器。 另外亦可用于机器的程序升级。 请按照自己需求来选择操作。 注:在电脑的计算机下,显示 ezcap271 的可移动磁盘为内置存储器,直接显示为可移动磁盘的为 TF 卡存储器。 视频输入...
  • Page 17 使用附带的 3.5 毫米转 3RCA 视频线连接 ezcap271 视频录制盒和视频源,如家庭录像机、磁带摄像机等。 3.5 毫米连接 ezcap271 视频录制盒的 AV IN 接口 三个莲花头连接视频源设备输出口,黄色-视频,红白-左右声道音频 如果您的视频源设备的输出也是使用 3.5 毫米转 3RCA 线连接的话, 请使用附带的 3RCA 转接头来连接两边的三 个莲花头。 在视频输入菜单下可以浏览到播放的视频,则表示连接正确,可以开始录制视频了。 同样,在录音菜单下,可以听到正在播放的视频的声音,表示可以开始录音了。 用一条 3.5 毫米转 3.5 毫米的音频线连接 ezcap271 的 AV IN 和想要录制的音频源,如电话或 CD 机等,也可以录 音。 视频输出...
  • Page 18 Ezcap271 视频录制盒有两个视频输出方式 – HDMI 输出和 CVBS 视频输出。 用 HDMI 线连接 ezcap271 视频录制盒的 HDMI OUT 接口和电视机或显示器的 HDMI 输入接口, 或者用附带的 3.5 毫米转 3RCA 线来连接 ezcap271 视频录制盒的 AV OUT 接口和电视机的三个莲花头视频输入接口。 此时, ezcap271 视频录制盒的显示屏将会关闭,视频将会在连接的电视机或显示器上显示。 请不要同时使用 HDMI OUT 和 AV OUT 来连接电视,否则仅仅 HDMI 连接有效。 注:请不要在录制或播放时连接视频输出端口或从视频输出端口拔掉视频线,否则 zcap271 视频录制盒将会发生...
  • Page 19 6. 时间 – 显示当下时间,可以在设置里面设置 7. 功能菜单,用方向键选择,按下 OK 键确认进入该菜单。 , 视频 – 回放录制的视频文件 音乐 – 回放录制的音频文件 图片 – 浏览图片文件 视频输入 – 预览和录制输入视频并保存 录音 – 预览和录制输入音频并保存 设置 – 设定日期时间、语言等 8. 有 TF 卡插入 9. 连接迷你 USB 接口 10. 电池剩余电量 录制视频 进入视频输入菜单,将会看到正在播放的输入视频,同时自带的扬声器播放声音。 此时,按下录制按键开始录制,再次 按下录制键则停止录制并保存文件。...
  • Page 20 录制音频 进入录音菜单,扬声器将会播放输入的音源。 此时,按下录制按键开始录制,再次按下录制键则停止录制并保存文件。 你也可以按 OK 键开始录制,再次按 OK 键暂停录制,按返回键保存录制文件。 视频回放 进入视频菜单,进入 TVIN 目录,将会看到所有录制的视频文件。选择你想播放的文件按下 OK 键开始播放。播放时, 你可以用上下键来设定音量,左右键快进和快退。 按下返回键将会返回到视频文件列表。 音 频 回放 进 入 音乐菜单,进入 REC 目录, 将 会 看到所有录制的音乐文件。...
  • Page 21 选择想要播放的文件,按 OK 键开始播放。 播 放 时 , 你可以用上下键来设定音量, 左右键快进和快退,连按两下左键或右键来选择上一首或下一首,按下返回键将会返回到音乐文件列表。 使用音乐播放模式键 来选择音乐播放模式 - 随机播放 - 随机加重复 - 音乐前奏介绍 - 按顺序播放 - 单曲重复 - 重复播放所有歌曲 浏览图片 Ezcap271 视频录制盒不支持抓图,但是你可以将图片文件拷贝到内置存储器或 TF 卡内,并在机器显示屏上浏览。 进 入图片菜单,进入 PIC 目录,选择并浏览。 从设备直接删除文件...
  • Page 22 如果你想删除掉一些视频、音乐或图片文件, 除了通过连接电脑删除外,还可以直接在 ezcap271 视频录制盒上直接删 除。 请先找到你需要删除的文件,选择播放,然后长按音乐播放模式键 ,你将会看到确定删除的提示, 请选择 Yes 并按下 OK 键删除该文件。 注: 一些无法播放的文件或录制出问题的文件,或许无法使用上述方法删除, 请连接电脑删除。 设置 显示设置 – 设置背光时间以节省能耗 省电 – 设定省电时间和睡眠时间以节省耗电 日期和时间 – 设定日期和时间 语言支持 – 设置菜单语言, ezcap271 视频录制盒支持七种语言-英语,法语,德语,西班牙语,日语,简体中文和繁 体中文。 高级:...
  • Page 23 详细信息 – 显示机器固件程序版本,内置存储器空间和卡存储器空间情况 保存路径 – 设置机器默认的播放路径 – 内置存储器或卡存储器 注意: 这个保存路径设置仅仅针对播放。对于录制存储路径,如果插入了 TF 卡则存储到 TF 卡内,而无法存储到内置存 储器内。没有插 TF 卡,则录制文件直接存储在内置存储器内。 别的格式化内置存储器、卡格式化、恢复出厂设置的功能与文字一致。 视频输入 – 设定输入视频的电视制式,设定与输入的视频源制式一致。 TV-OUT – 设定输出视频的电视制式,设定与连接的电视机制式一致。 规格参数:...
  • Page 24 其它 3 英寸 TFT 显示屏,内置扬声器,950 毫安时锂电池 尺寸 125(长) × 61(宽) × 20(高) 毫米 净重 120 克 包装内容 设备 ezcap271 视频录制盒 USB 线用于充电和数据传输,USB 接口电源,3.5 毫米转 3RCA 线材,遥控器,3RCA 其它 转换头,说明书 规格 内置 8GB 存储器,支持外接 TF 卡 存储媒介 最大支持 32GB,不支持 NTSF 格式 录制格式...
