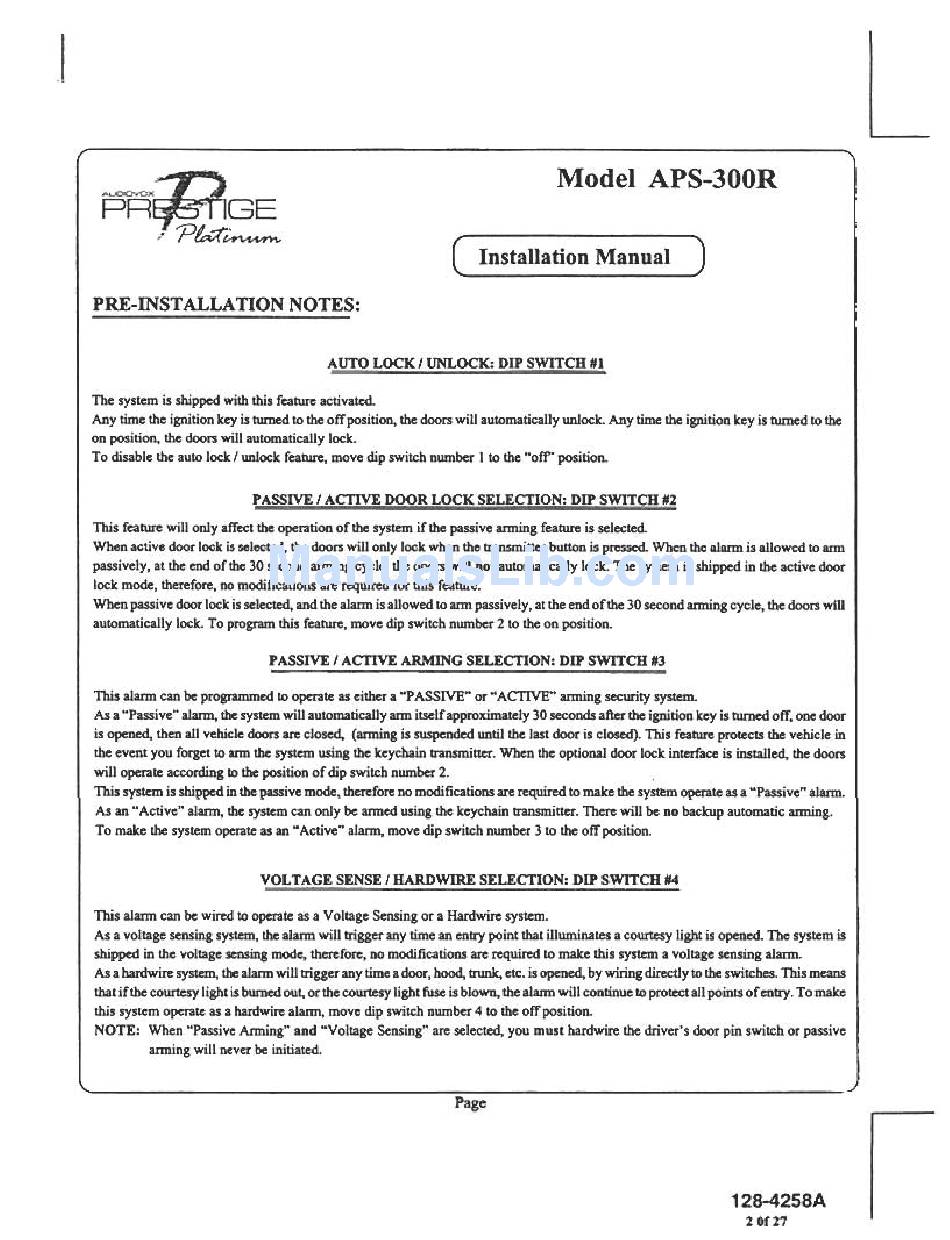

Model
APS-300R
c
Installation
Manual
)
PRE-INST ALLA TION NOTES:
AUTO LOCK I UNLOCK:
DIP SWITCH #1
The system is shipped with this feature activated.
Any time the ignition key is turned to the off position, the doors will automatically unlock. Any time the ignition key is turned to the
on position, the doors will automatically lock.
To disable the auto lock I unlock feature, move dip switch number 1 to the "off' position.
p ASSIVE
I ACTIVE
DOOR
LOCK
SELECTION:
DIP SWITCH
#2
This feature will only affect the operation of the system if the passive anning feature is selected.
When active door lock is selected, the doors will only lock when the transmitter button is pressed. When the alann is allowed to ann
passively, at the end of the 30 second anning cycle, the doors will not automatically lock. The system is shipped in the active door
lock mode, therefore, no modifications are required for this feature.
When passive door lock is selected, and the alann is allowed to ann passively, at the end of the 30 second arming cycle, the doors will
automatically lock. To program this feature, move dip switch number 2 to the on position.
PASSIVE I ACTIVE ARMING
SELECTION:
DIP SWITCH #3
This alann can be programmed to operate as either a "P ASSIVE" or" ACTIVE" anning security system.
As a "Passive" aiann, the system will automatically ann itself approximately 30 seconds after the ignition key is turned off, one door
is opened, then all vehicle doors are closed, (anning is suspended until the last door is closed). This feature protects the vehicle in
the event you forget to ann the system using the keychain transmitter. When the optional door lock interface is installed, the doors
will operate according to the position of dip switch number 2.
This system is shipped in the passive mode, therefore no modifications are required to make the systl:m operate as a "Passive" alann.
As an "Active" alann, the system can only be anned using the keychain transmitter. There will be no backup automatic arming.
T o make the system operate as an ..Active" alann, move dip switch number 3 to the off position.
VOLTAGE
SENSE I HARDWIRE
SELECTION:
DIP SWITCH #4
This alarm can be wired to operate as a Voltage Sensing or a Hardwire system.
As a voltage sensing system, the alarm will trigger any time an entry point that illuminates a COW1eSy light is opened. The system is
shipped in the voltage sensing mode, therefore, no modifications are required to make this system a voltage sensing alarm.
As a hardwire system, the alarm will trigger any time a door, hood, trunk, etc. is opened, by wiring directly to the switches. This means
that if the coW1esy light is burned out, or the coW1esy light fuse is blown, the alarm will continue to protect all points of entry .To make
this system operate as a hardwire alarm, move dip switch number 4 to the off position.
NOTE:
When "Passive Arming" and "Voltage Sensing" are selected, you must hardwire the driver's door pin switch or passive
arming will never be initiated.
Page
128-4258A
2 or 27

Advertisement

loading

Summary of Contents for Audiovox Prestige Platinum APS-300R

  • Page 1 When "Passive Arming" and "Voltage Sensing" are selected, you must hardwire the driver's door pin switch or passive arming will never be initiated. Model Installation Manual DIP SWITCH #1 DOOR LOCK SELECTION: DIP SWITCH SELECTION: DIP SWITCH #3 SELECTION: DIP SWITCH #4 Page APS-300R 128-4258A 2 or 27...
  • Page 2 CHANNEL 2 OUTPUT: This system provides an on board 10 A relay to activate the factory installed trunk release solenoid. CHANNEL 3 OUTPUT: This system provides an additional hardwire remote output to control an assortment of optional upgrades. This output is an independent channel from the transmitter, and is controlled by pressing both buttons on the transmitter simultaneously.
  • Page 3 Page 128-4258A 4 Or27 ~ ~ ~ ~ ~ ~ ~...
  • Page 4 This wire is provided to control the starter cut relay. Connect the orange wire to terrninal86 of the relay, and wire the remaining relay contacts as shown in the wiring diagram. IMPORT ANT: Audiovox does not recommend using this relay to interrupt the ignition wire. Only connect this relay to the low current starter solenoid feed wire, as indicated on the wiring diagram.
  • Page 5 Page 128-4258A 6 Of27 ~ ~ ~ ~ ~ ~ ~ ~ ~...
  • Page 6: Completing The Installation

    6 PIN DOOR LOCK OUTPUT CONNECTOR: When wiring for 2-step unlock operation, you must connect the outputs of the on-board unlock relay to the driver's side door lock motor. Wire these outputs as follows; Orange = N.O. Relay Contact to +12 VDC Battery Dark Blue = N.C.
  • Page 8: Alarm Color

    VEHICLE MAKE: ALARM WIRE COLOR BLACK YELLOW BROWN PURPLE WHITE OPTIONAL TYPE OF DOOR LOCK CIRCUIT: LOCK UNLOCK CONTROL MODULE LOCATION: L.E.D. LOCATION: VALET SWITCH LOCATION: SIREN LOCATION: VEHICLE WIRE COLOR DOOR LOCK WIRING Page LOCATION 128-4258A 8 or...
  • Page 9: Notes And Sketches

    ADDITIONAL NOTES AND SKETCHES: NOTES: Audiovox GOrp., 150 Marcus Blvd. Hauppauge. N.Y. 11788 Form No. 128-4258A Printed in U.S.A. Page 9 128-4258A 9 Of27...
