Installation Instructions

(Power Supply Wiring Instructions)

II. Install the Rearview Camera (optional)
1. Some rearview cameras are connected through removable coupling
connectors. If you receive a product with a separated plug and socketed
cable, then connect the plug-in components properly according to the
illustrations below. To avoid damage to the pins and connector holes,
never use extra force while making connections. The earphone connector
of rearview camera cable must be plugged into the corresponding port of
the device.

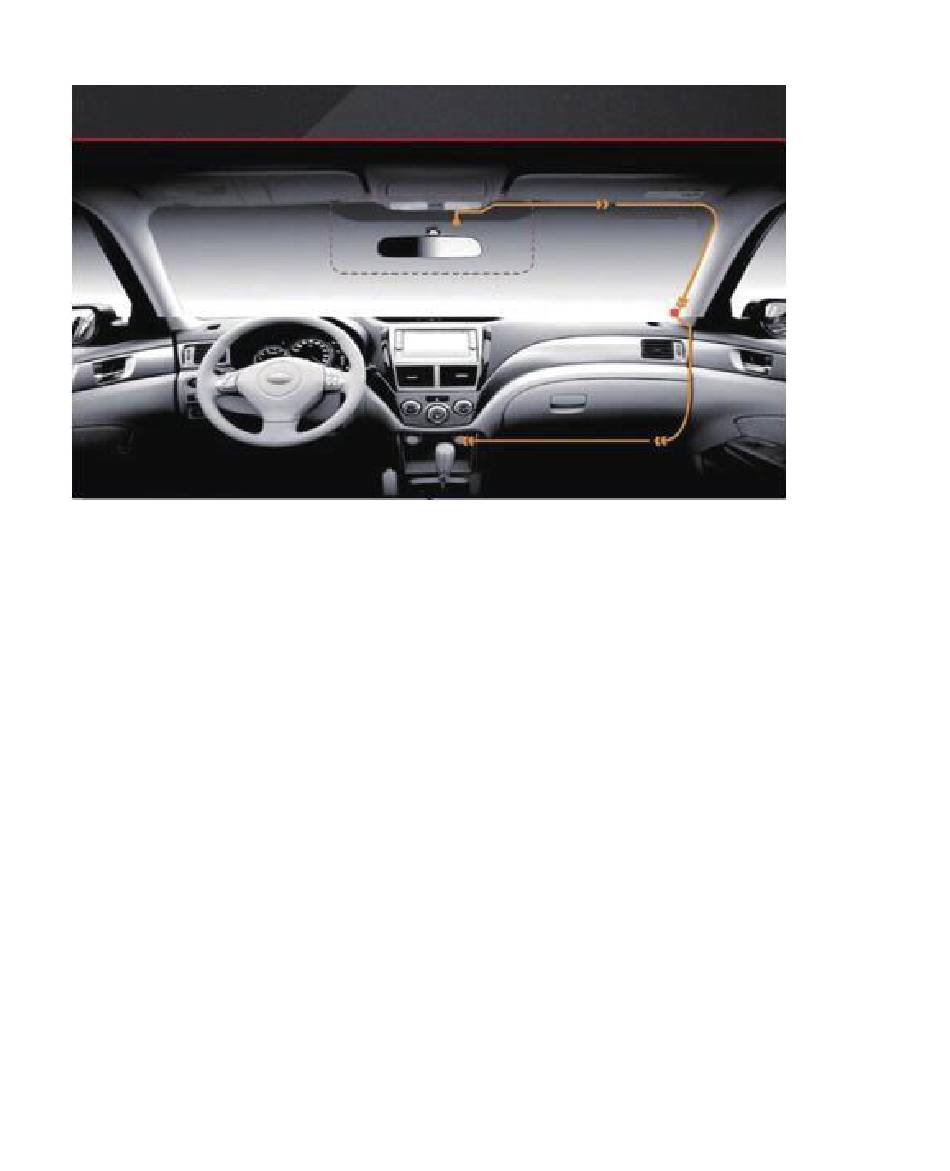

Optimum Installation
Location
9
Power Supply Wiring
Location
Location of GPS
Module
