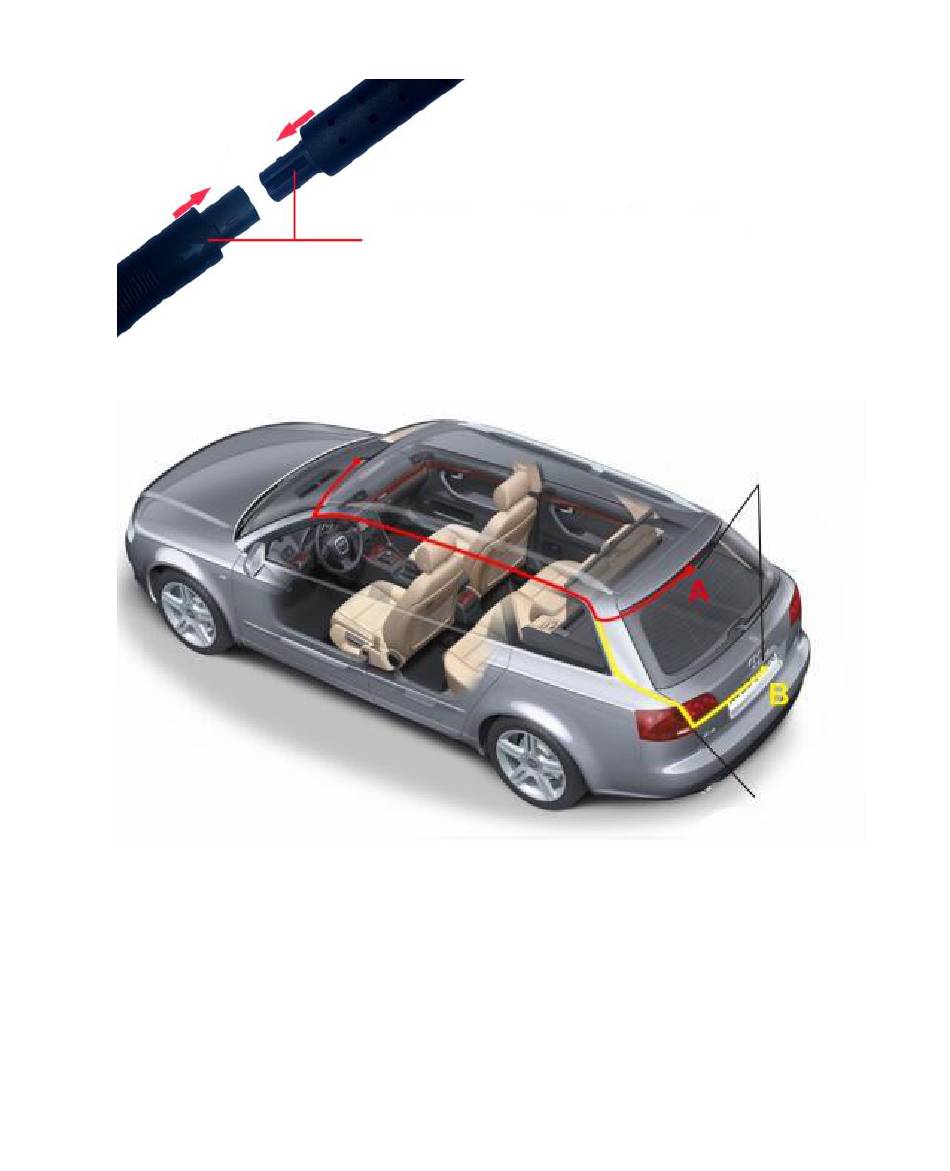

2. Rearview Camera Wiring Instruction (as shown below)
The rearview camera has two wire routing options as shown in the above
figure. The first part of both options is characterized with concealing the wire
routing against the edges of the door(s).
A: The rearview camera can be mounted at the top of the rear window inside
the car.
B: The rearview camera can be mounted right above the car's license plate.
Align the male portion and the female portion of the
rearview camera cable between the arrows before
pressing the connectors together.
10
Connected to rearview
camera
Connected to reversing light
