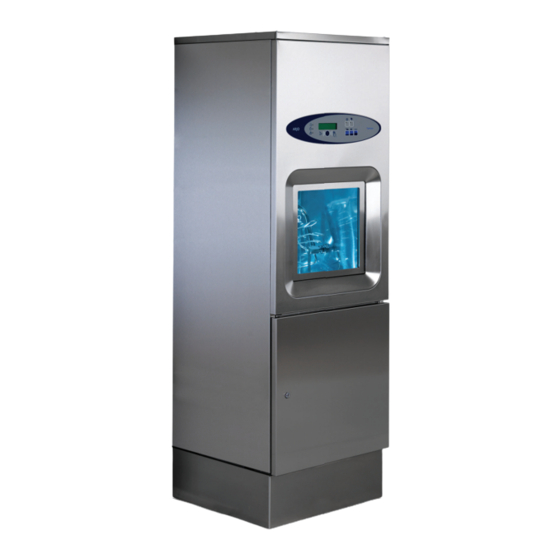

  • Page 1 INSTRUCTIONS FOR USE Typhoon 04.TY.00_1EN • 11/2019...
  • Page 2 Mandatory to read the Instructions for Use. Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2019. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.

  • Page 3: Table Of Contents

    Contents PREFACE ..........................5 1 SAFETY PRECAUTIONS ....................6 1.1 Important ......................6 1.2 Isolator switch ......................7 1.3 In an emergency ....................7 1.4 Product liability .....................7 1.5 Attention symbols ....................7 2 PRESENTATION ......................8 .................8 ...............8 2.3 Cleaning principles ....................8 2.4 Container ......................8 2.5 Symbols on the machine ..................9 2.6 Control panel .....................10 2.6.1.
  • Page 4 5 ALARM .........................20 5.1 Alarm ........................20 5.2 Acknowledgement of error message ..............20 5.3 During a power failure ..................20 6 TROUBLESHOOTING ....................21 6.1 List of codes .......................21 6.2 Types of codes ....................21 7 ENVIRONMENTAL PRODUCT DECLARATION ............22 7.1 Comments ......................22 7.2 Distribution ......................22 7.3 Use ........................22 8 DETERGENT .......................23 8.1 Flushing detergent .....................23...

  • Page 5: Preface

    Operators and maintenance personnel must have completed training through the The information in this manual describes the machine as dispatched from Arjo. There may be differences due to The machine is accompanied by the following documentation: •...

  • Page 6: Safety Precautions

    Leakage in the system, due to a worn door seal for example, must be repaired without delay. • Spare parts must only be obtained from Arjo sales companies. • If a serious incident occurs in relation to this medical device,...

  • Page 7: Isolator Switch

    Close shut off valves in the water supply line. 1.4 Product liability CE marking indicating conformity with European Community harmonised legislation. approval of Arjo negates Arjo’s product liability. CE marking indicating conformity with European Community harmonised legislation Indicates the product is a Medical Device...

  • Page 8: Presentation

    2 PRESENTATION bedpans, urine bottles and other containers for human waste, including suction bottles. The customer is responsible for ensuring that an Installation product is put into use. Figure 1. Control panel Door to machine cabinet Door Flushing chamber Container for descaler and/or detergent 2.3 Cleaning principles then disinfecting with steam.

  • Page 9: Symbols On The Machine

    2.5 Symbols on the machine Warning. See manual Hot surface. Risk of injury.

  • Page 10: Control Panel

    2.6 Control panel 2.6.1. Components Typhoon Figure 2. Control panel Yellow: Process running Green: Process complete Red: Disinfection not achieved or other error code F Display Open/close door. Sensor to open/close door and to start preselected program 2.6.2. Functions program.

  • Page 11: Display Options

    2.7 Display options A service technician can set the information to be shown in the display. 2.7.1. Displayed while a program is running The display can be set to show one of the following alternatives while a program is running: •...

  • Page 12: Door Function

    2.8 Door function 2.8.1. Opening the door • from the panel. • Keep your hand still for one 1 second. • The door opens automatically. Figure 3. Figure 4. Door opens 2.8.2. Closing the door WARNING! Keep hands and arms away when an automatic door has been activated in order to avoid the risk of getting stuck.

  • Page 13: Operating Instructions

    3 OPERATING INSTRUCTIONS 3.1 Program overview Program Standard Degree of soiling Heavily soiled Program sequence Cleaning Disinfection Cooling End of program Program time Energy 0.25 kWh Water (including cooling) 39 l ± 10% 3.2 Run a program 3.2.1. Start a program If the machine has not been used for more than 72 hours, it is necessary to run a program with an empty chamber before using the machine to...

  • Page 14: After The Program Ends

    3.2.3. After the program ends The goods may be hot at the end of the program. If the goods are warmer than 60°C, U7 appears in the display. The green light comes on when the program is complete. The door then opens automatically. When the door has opened, take out the goods.

  • Page 15: Examples Of Goods And Program Selection

    3.3 Examples of goods and program selection Figure 5.

  • Page 16: Maintenance

    The maintenance interval will have to be determined in each individual case. Arjo recommends that the stated maintenance operations be performed at intervals according to the service table.

  • Page 17: Service Table

    4.3.2. Service table NOTE! The service table is only shown for information purposes. Maintenance may only be performed by authorized service technicians. The service table below shows recommended maintenance intervals. In addition to system testing, we recommend that appropriate cleaning tests and temperature validation are performed according to EN ISO 15883.
  • Page 18 Measure Every year / Every other Time* year / 10,000 cycles (minutes) 20,000 cycles Process tank Clean as required. • Check and clean the level sensor. • Check that the valves are working and that • the connections are not leaking. Clean as required.

  • Page 19: Machines That Are Not In Use

    Measure Every year / Every other Time* year / 10,000 cycles (minutes) 20,000 cycles Automatic door Check the automatic door for proper • operation. Function check (at each service) 10.1 Run a complete process and be sure there are no deviations according to the periodic checkpoints.

  • Page 20: Alarm

    10 seconds. if the goods are still in the machine. If the error persists, call service personnel. Typhoon Figure 7. 5.3 During a power failure If the power fails during a process, the machine remains locked.

  • Page 21: Troubleshooting

    6.1 List of codes Error code Description of error Measure Lime binding agent low Top up lime binding agent Process agent low level Top up process agent Inspection request Warning of high temperature for goodss Let the goods cool down External communication Battery error Faulty temp sensor...

  • Page 22: Environmental Product Declaration

    7 ENVIRONMENTAL PRODUCT DECLARATION Component Weight in kg (total 135 kg) Weight as a percentage Mechanical parts Stainless steel Steel Glass Brass Plastic Rubber Other mech. parts Electrical / Electronics Wiring Circuit boards Other components 7.1 Comments The “Other mech. parts” and “Other components” fractions comprise pumps, door motors, etc., which cannot be weighed or divided up in the same way as other fractions.

  • Page 23: Detergent

    (dosing pumps and hoses). Follow the instructions for the container for additional instructions on using the agent. The machine has been proven and tested with Arjo’s detergents. We recommend that you use Arjo detergents. 8.1 Flushing detergent Following detergents can be ordered from Arjo sales companies.

  • Page 24: Water Quality

    9 WATER QUALITY It is the customer’s responsibility to supply the The quality of the water used in all stages of cleaning is important for good cleaning results. The water used in each step should be compatible with: • • The chemicals used in the process.
  • Page 25 5°dH. Detailed information about acceptable water quality can be found in “Guidelines for Drinking Water Quality, published by WHO. Follow local standards if they are stricter that Arjo’s recommendations. Especially when treated water is used for the water is: 5.5 to 8...

  • Page 26: End Of Life Disposal

    10 END OF LIFE DISPOSAL Equipment that has electrical and electronic components should be disassembled and recycled per Waste of Electrical and Electronic Equipment (WEEE) or in accordance with local or national regulation. Disinfection liquids – if you have extra liquid, it’s safe to pour it down the drain with running water.
  • Page 27 Tel: +852 2960 7600 Tel: +351 214 189 815 Fax: +852 2960 1711 Fax: +351 214 177 413 BRASIL ITALIA Arjo Brasil Equipamentos Médicos Ltda Arjo Italia S.p.A. SUISSE / SCHWEIZ Rua Marina Ciufuli Zanfelice, 329 PB02 Galpão Arjo AG Fabrikstrasse 8 São Paulo –...
  • Page 28 With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise ArjoHuntleigh AB Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjo.com...
