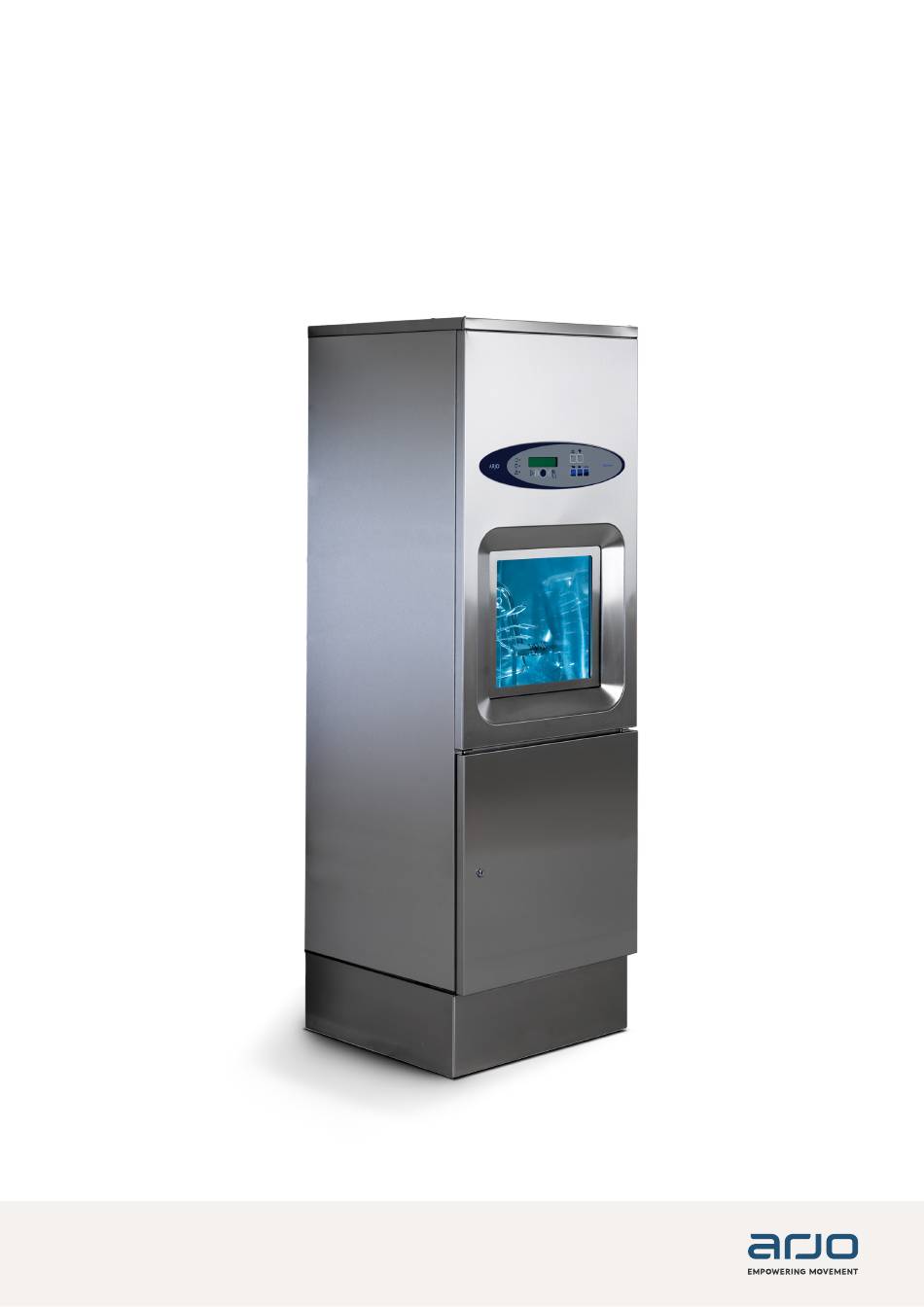

INSTRUCTIONS FOR USE
Typhoon
04.TY.00_2EN • 05/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Typhoon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjo Typhoon

Summary of Contents for Arjo Typhoon

  • Page 1 INSTRUCTIONS FOR USE Typhoon 04.TY.00_2EN • 05/2023...
  • Page 2 Mandatory to read the Instructions for Use. Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2023. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.

  • Page 3: Table Of Contents

    Contents PREFACE ...........................5 Definitions in this IFU ....................6 1 SAFETY PRECAUTIONS ....................7 1.1 Important ......................7 1.2 Isolator switch ......................8 1.3 In an emergency ....................8 2 PRESENTATION ......................9 2.1 Intended field of application .................9 2.2 Components of flusher-disinfector ...............9 2.3 Cleaning principles ....................9 2.4 Container ......................9 2.5 Control panel .....................10 2.5.1.
  • Page 4 5 ALARM ........................20 5.1 Alarm ........................20 5.2 Acknowledgement of error message ..............20 5.3 During a power failure ..................20 6 TROUBLESHOOTING ....................21 6.1 List of codes .......................21 6.2 Types of codes ....................21 7 ENVIRONMENTAL PRODUCT DECLARATION .............22 7.1 Comments ......................22 7.2 Distribution ......................22 7.3 Use ........................22 8 DETERGENT......................23 8.1 Flushing detergent .....................23...

  • Page 5: Preface

    Arjo. The information in this Instructions for use describes the machine as dispatched from Arjo. There may be differences due to customization for customers or countries. The machine is accompanied by the following documentation: •...

  • Page 6: Definitions In This Ifu

    Definitions in this IFU Safety warning. Failure to understand and obey this warning may result in injury or machine damage. Hot surface. Risk of injury. Dangerous voltage. Risk of injury. Automatic door. Risk of getting stuck. Note means: This is important information for the Note! correct use of this system or device.

  • Page 7: Safety Precautions

    Leakage in the system, due to a worn door seal for example, must be repaired without delay. • Spare parts must only be obtained from Arjo sales companies. • If a serious incident occurs in relation to this medical device,...

  • Page 8: Isolator Switch

    1.2 Isolator switch The machine must have a lockable switch for the electric power supply. The switch must be easily accessible on a wall close to the machine. The installation must conform to and be marked in accordance with local provisions. A switch is not required on machines fitted with an electric plug.

  • Page 9: Presentation

    Qualification, Operating Qualification and Performance Qualification according to ISO 15883 are carried out before the product is put into use. 2.2 Components of flusher-disinfector Typhoon is one of Arjo’s series of flusher-disinfectors. Figure 1. Components of flusher-disinfector Control panel Door to machine cabinet...

  • Page 10: Control Panel

    2.5 Control panel 2.5.1. Components Typhoon Figure 2. Control panel Yellow: Process running Green: Process complete Red: Disinfection not achieved or other error code F Display Open/close door. Sensor to open/close door and to start preselected program 2.5.2. Functions Note! Disinfection is not included in the rim flushing program.

  • Page 11: Display Options

    2.6 Display options A service technician can set the information to be shown in the display. 2.6.1. Displayed while a program is running The display can be set to show one of the following alternatives while a program is running: •...

  • Page 12: Door Function

    2.7 Door function 2.7.1. Opening the door • Move your hand toward the sensor, stopping about 3-4 cm from the panel. • Keep your hand still for one 1 second. • The door opens automatically. Figure 3. Open door using sensor Figure 4.

  • Page 13: Operating Instructions

    3 OPERATING INSTRUCTIONS To prevent contamination, use personal protective equipment, such as gloves and protective glasses, when handling soiled waste containers and loading the goods into the flusher-disinfector. 3.1 Program overview Program Standard Degree of soiling Heavily soiled Program sequence Cleaning Disinfection Cooling...

  • Page 14: During Ongoing Program

    3.2.2. During ongoing program If the red indicator lamp lights up an error has occurred. The process is cancelled and must be repeated. 3.2.3. After the program ends The goods may be hot at the end of the program. If the goods are warmer than 60°C, U7 appears in the display.

  • Page 15: Examples Of Goods And Program Selection

    3.3 Examples of goods and program selection Figure 5. Example showing how to position goods...

  • Page 16: Maintenance

    The maintenance interval will have to be determined in each individual case. Arjo recommends that the stated maintenance operations be performed at intervals according to the service table.

  • Page 17: Service Table

    4.3.2. Service table The machine is connected to the electricity supply and some components are live. Maintenance may only be performed by authorized service technicians. NOTE! The service table is only shown for information purposes. The service table below shows recommended maintenance intervals.
  • Page 18 Measure Every year / Every other Time* year / 10,000 cycles (minutes) 20,000 cycles Check the mounting for the goods holder. • Check that the overflow drain connection to • the chamber is tight. Clean the inside of the flushing chamber. •...

  • Page 19: Machines That Are Not In Use

    Measure Every year / Every other Time* year / 10,000 cycles (minutes) 20,000 cycles Check and adjust the needle valve. • Automatic door Check the automatic door for proper • operation. Function check (at each service) 10.1 Run a complete process and be sure there are no deviations according to the periodic checkpoints.

  • Page 20: Alarm

    The machine is now ready to operate. Re-run the aborted program if the goods are still in the machine. If the error persists, call service personnel. Typhoon Figure 7. Acknowledgement of error message 5.3 During a power failure If the power fails during a process, the machine remains locked.

  • Page 21: Troubleshooting

    6 TROUBLESHOOTING 6.1 List of codes Error code Description of error Measure Lime binding agent low Top up lime binding agent Process agent low level Top up process agent Inspection request Contact authorized service personnel Warning of high temperature for goodss Let the goods cool down External communication Contact authorized service personnel...

  • Page 22: Environmental Product Declaration

    7 ENVIRONMENTAL PRODUCT DECLARATION Component Weight in kg (total 135 kg) Weight as a percentage Mechanical parts Stainless steel Steel Glass Brass Plastic Rubber Other mech. parts Electrical / Electronics Wiring Circuit boards Other components 7.1 Comments The “Other mech. parts” and “Other components” fractions comprise pumps, door motors, etc., which cannot be weighed or divided up in the same way as other fractions.

  • Page 23: Detergent

    (dosing pumps and hoses). Follow the instructions for the container for additional instructions on using the agent. The machine has been proven and tested with Arjo’s detergents. We recommend that you use Arjo detergents. 8.1 Flushing detergent Following detergents can be ordered from Arjo sales companies.

  • Page 24: Water Quality

    Arjo recommends that water used in the pre-rinsing, washing and final rinsing phases should be of drinking quality in accordance with the guidelines. Recommended water quality is drinking water with max 5°dH.
  • Page 25 Follow local standards if they are stricter that Arjo’s recommendations. Especially when treated water is used for the final washing/disinfection phase. A typical specification for treated water is: 5.5 to 8 Conductivity <30 µs.cm-1 <40 mg/l Maximum hardness <50 mg/l Chlorine <10 mg/l...

  • Page 26: End Of Life Disposal

    10 END OF LIFE DISPOSAL The product may be contaminated and has to be disinfected before recycling. Equipment that has electrical and electronic components should be disassembled and recycled per Waste of Electrical and Electronic Equipment (WEEE) or in accordance with local or national regulation.

  • Page 27: Symbol Explanation

    11 SYMBOL EXPLANATION Symbol Explanation Warning Warning, hot surface Warning, risk of getting stuck Warning, dangerous voltage Wear protective gloves Wear eye protection Refer to instruction manual/booklet - Instructions for use should be read Name and address of the manufacturer Manufacturing date Use by date Catalogue number...
  • Page 28 Symbol Explanation WaterMark certification label with license number WMK26397 WaterMark WMTS104 LicWMK26397 SAI Global LAU-LBP13042 Intertek Warnock Hersey Certification Mark Electrical test label. Indicates ETL Certification through Intertek. The proof of product compliance to North American safety standards DVGW CERT Conformity Certificate Dutch safety certification for water safety c e r t i f i e d BRL-K14011...

  • Page 29: Electromagnetic Compatibility

    12 ELECTROMAGNETIC COMPATIBILITY Intended environment: industrial electromagnetic environment Guidance and manufacturer’s declaration – electromagnetic emission Emmision test Compliance Guidance This equipment uses RF energy only for its internal functions. Therefore its RF emissions are very low and are not likely to cause any RF emissions CISPR 11 Group 1 interference in nearby electronic equipment.
  • Page 30 Intentionally left blank...
  • Page 31 AUSTRALIA FRANCE POLSKA Arjo Australia Arjo SAS Arjo Polska Sp. z o.o. Building B, Level 3 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 11 Talavera Road CS 70133 PL-62-052 KOMORNIKI (Poznań) Macquarie Park, NSW, 2113, FR-59436 RONCQ CEDEX...
  • Page 32 At Arjo, we believe that empowering movement within healthcare environments is essential to quality care. Our products and solutions are designed to promote a safe and dignified experience through patient handling, medical beds, personal hygiene, disinfection, diagnostics, and the prevention of pressure injuries and venous thromboembolism. With over 6500 people worldwide and 65 years caring for patients and healthcare professionals, we are committed to driving healthier outcomes for people facing mobility challenges.
