ASSEMBLY AND INSTALLATION INSTRUCTIONS
Typhoon
06.TY.00_1EN • 11/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Typhoon and is the answer not in the manual?

Questions and answers

Related Manuals for Arjo Typhoon

Summary of Contents for Arjo Typhoon

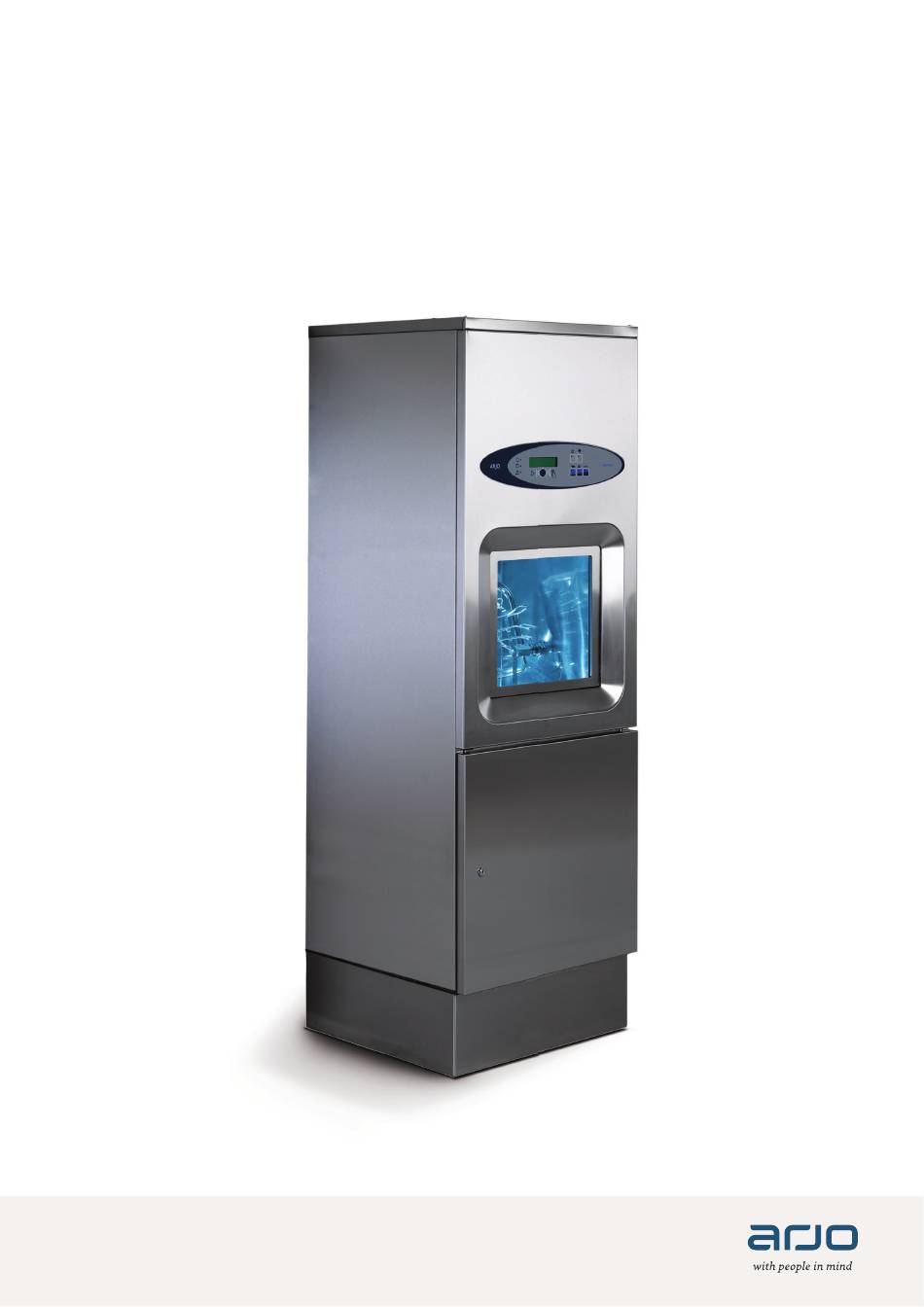

  • Page 1 ASSEMBLY AND INSTALLATION INSTRUCTIONS Typhoon 06.TY.00_1EN • 11/2019...
  • Page 2 Machine model: …………………………………………………… Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2019. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the consent of...

  • Page 3: Table Of Contents

    Contents PREFACE ..........................4 1 SAFETY PRECAUTIONS ....................5 1.1 Important ......................6 1.2 Make sure assembly and installation work is carried out by ........7 1.3 Isolator switch ......................7 1.4 In an emergency ....................7 1.5 Product liability .....................7 1.6 Attention symbols ....................7 2 INSTALLATION ......................8 2.1 General ........................8 2.1.1 Make sure assembly and installation work is carried out ......8 2.1.2 Installation order ...................8...

  • Page 4: Preface

    Operators and maintenance personnel must have completed training through the The information in this manual describes the machine as dispatched from Arjo. There may be differences due to The machine is accompanied by the following documentation: •...

  • Page 5: Safety Precautions

    1 SAFETY PRECAUTIONS This machine has a number of built-in safety devices. To avoid injury, it is highly important not to bypass these safety devices. manufacturer this can impair the safety equipment on the machine. Operators and maintenance personnel must undergo safety training for the machine.

  • Page 6: Important

    1.1 Important • Take care when handling the chemical agents used in the machine. Read the details on the container or contact the manufacturer: if the agent comes into contact with the operator’s eyes or skin or if the vapors are breathed in, etc. about storing the detergent and disposing of empty containers.

  • Page 7: Make Sure Assembly And Installation Work Is Carried Out By

    Close shutoff valves in the water supply line. 1.5 Product liability CE marking indicating conformity with European Community harmonised legislation. approval of Arjo negates Arjo’s product liability. CE marking indicating conformity with European Community harmonised legislation 1.6 Attention symbols Some of the warnings, instructions and advice in this manual...

  • Page 8: Installation

    2 INSTALLATION 2.1 General 2.1.1 Make sure assembly and installation work is carried out should be assembled and installed by at least two people. • • in accordance with current local regulations and rules. • for indoor installation only. • not to be installed in wet locations.

  • Page 9: Unpacking

    2.2 Unpacking not been damaged in transit. is delivered: • Two cabinet keys • One folder containing documentation Remove the packaging. position as possible, when still secure to the pallet using mechanical means. pallet. Figure 1. Unscrew bolts position.

  • Page 10: Diagram Showing Dimensions And Hole Pattern

    2.3 Diagram showing dimensions and hole pattern 14(2X) 12(2X) 10(2X) 80-320 120-330 Figure 2. Diagrams showing dimensions and hole pattern 1. CW, G3/4" female (TWO METERS OF 6. WASTE CONNECTION, P-TRAP, WALL, HOSE FROM THIS POINT ARE INCLUDED 110/90. WITH THE MACHINE) 7.

  • Page 11: Positioning

    2.4 Positioning • Fit the trap to the waste outlet. The trap can be connected towards the rear or downwards. The pipe diameter is 90 or 110 mm. • Position the machine and level it using a spirit level held vertically against the side of the machine.
  • Page 12 Figure 4. Handling panels • Release the panel and lock it in the service position. • Measure up and drill the holes for securing the machine to the wall.
  • Page 13 Figure 5. Measure up the holes on the wall • for the material of the wall. machine is now supported by the bolts in the wall. • If the plinth is not going to be used, remove it by unscrewing the four bolts and pull out the plinth.

  • Page 14: Connecting Water

    2.5 Connecting water • The connections must satisfy the requirements for water connection in accordance with the table below. Warm water Red Connection 15 mm (1/2") 15 mm (1/2") Pressure 100-800 kPa 100-800 kPa Flow rate 20 l/min at 400 kPa 20 l/min at 400 kPa pressure pressure...

  • Page 15: Coupling Alternative

    2.6.1 3N+PE 1N+PE -X50 -X50 Figure 8. Electrical connection 3+PE 2+PE -X50 -X50 Figure 9. Electrical connection Voltage Connection Fuse 400 V 3N+PE (TN) 3 × 15 A 5.71 kW 400 V 3N+PE (TN) 3 × 10 A 5.51 kW 240 V 3+PE (TN) 3 ×...

  • Page 16: When The Work Is Complete, Check That

    • all parts have been installed according to the installation manual. • all screws have been properly tightened. • there are no sharp edges on any parts that may come into contact with people. • all hoses, pipes and connections are intact and free from defects.

  • Page 17: Function Check

    2.8 Function check Note! Make sure that the suction hose in the dosing pump is full of agent before beginning. The dosing pumps can be • supply voltage and that it is protected by a fuse of the correct rating as shown on the type plate. •...
  • Page 18 - the temperature rises continuously until the cooling phase begins. the green lamp at lights up and the display shows U7 (hot goods). Typhoon Figure 10. Control panel 1. Yellow: Process running 2. Green: Process complete 3. Red: Disinfection not achieved or other error code F 4.

  • Page 19: Technical Data

    3 TECHNICAL DATA 3.1 Dimensions and weights Dimensions and weights Weight 135 kg Width 600 mm Depth 600 mm Height (incl. plinth 200 mm) 1840 mm...

  • Page 20: Connections

    3.2 Connections Water consumption Standard program l/process Cold Water Connection 15 (1/2") mm Pressure 100-800 kPa Flow rate 20 l/min Hot Water Temperature Connection 15 (1/2") mm Pressure 100-800 kPa Flow rate 20 l/min Softened water Temperature Connection 15 (3/4") mm Pressure 100-800 kPa Flow rate...

  • Page 21: Miscellaneous

    3.3 Miscellaneous Miscellaneous Dead volume <2.3 l (main pump and steam generator) Sound level 60 dB (A) leq Room temperature 3.5 Protection class Pollution Degree Overvoltage category Protection class IP 21 2000m above sea level...

  • Page 22: Accessories

    3.6 Accessories Article number Description 499631900 Combination valve (shutoff valve/ 502321001 Isolator switch JAA101090 Tray for instruments JAA101490 Insert tray 502391600 P-trap, (diam. 110 mm) 502391700 S-trap, (diam. 110 mm) 502391800 P trap (diam 90 mm) 502391900 S trap (diam 90 mm) 502520100 Straight compression coupling 502520000...

  • Page 23: Water Quality

    4 WATER QUALITY It is the customer’s responsibility to supply the The quality of the water used in all stages of cleaning is important for good cleaning results. The water used in each step should be compatible with: • The material that the washer-disinfector is made of. •...
  • Page 24 Arjo recommends that water used in the pre-rinsing, washing and with the guidelines. Recommended water quality is drinking water can be found in “Guidelines for Drinking Water Quality, published by WHO. Follow local standards if they are stricter that Arjo’s recommendations.

  • Page 25: End Of Life Disposal

    5 END OF LIFE DISPOSAL Equipment that has electrical and electronic components should be disassembled and recycled per Waste of Electrical and Electronic Equipment (WEEE) or in accordance with local or national regulation. down the drain with running water. These products are water municipality will treat these cleaners the same way they would if you used them for cleaning.
  • Page 26 Intentionally left blank...
  • Page 27 Tel: +852 2960 7600 Tel: +351 214 189 815 E-mail: info.belgium@arjo.be E-mail: Portugal@arjo.com BRASIL ITALIA Arjo Brasil Equipamentos Médicos Ltda Arjo Italia S.p.A. SUISSE / SCHWEIZ Rua Marina Ciufuli Zanfelice, 329 PB02 Galpão Via Giacomo Peroni 400-402 Arjo AG - Lapa...
  • Page 28 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise...
