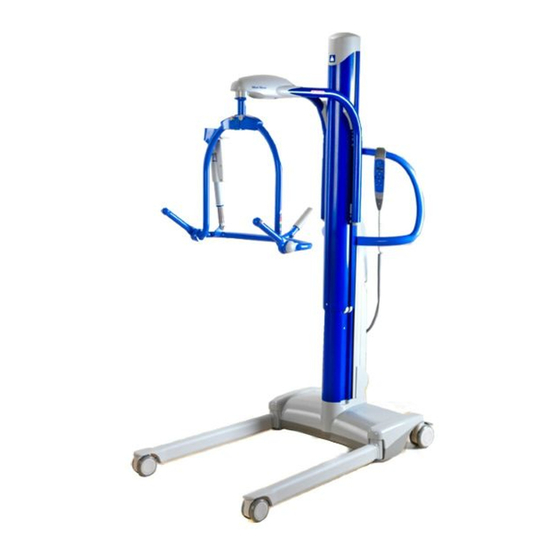

Arjo Maxi Move Quick Reference Manual
Hide thumbs
Also See for Maxi Move:
- Maintenance and repair manual (70 pages) ,
- Instructions for use manual (52 pages) ,
- Operating and product care instructions (50 pages)
Advertisement
QUICK REFERENCE GUIDE - FUNCTIONS
Maxi Move
Apply and release brake
Apply break
For storage and on incline only. Do not apply
brakes when lifting a patient in any other way.
Control panel and Control handset buttons
Loop sling attachment
Release brake
DPS recline
Spreader bar down
Legs closed
Clip sling attachment
Latch
closed
001-25215-EN Rev 0 • 05/2020 • Page 1/2
Spreader bar up
DPS sit up
Legs open
Attach and secure the clip at the lug before
patient is lifted.
Advertisement
Table of Contents
Related Manuals for Arjo Maxi Move
Summary of Contents for Arjo Maxi Move
- Page 1 QUICK REFERENCE GUIDE - FUNCTIONS Maxi Move Apply and release brake Apply break Release brake For storage and on incline only. Do not apply brakes when lifting a patient in any other way. Control panel and Control handset buttons Spreader bar up...
- Page 2 Electrical power fail – lower the jib Use lever as a crank. Turn Raise lever Remove locking pin. it one clockwise rotation. ArjoHuntleigh AB Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjo.com 001-25215-EN Rev 0 • 05/2020 • Page 2/2...
