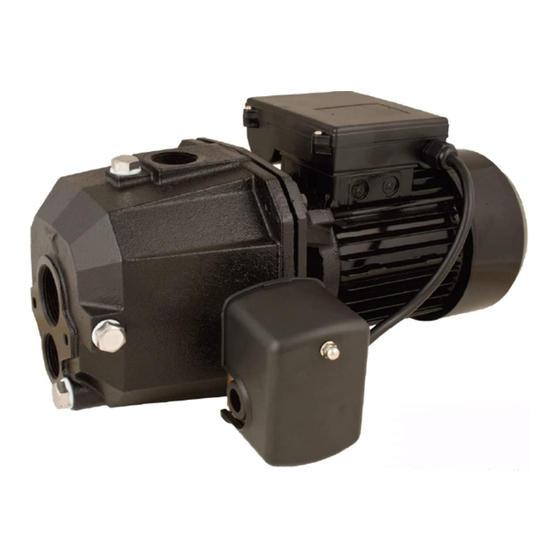

STAR Water Systems SJ05 Instructions Manual

Convertible jet well pump for deep or shallow wells
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.starwatersystems.com
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
STOP
service department at 1-800-742-5044, 7:30 a.m. - 5 p.m., EST, Monday - Friday.
95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
MODEL SJ05 1/2 HP, SJ07 3/4 HP, SJ10 1 HP
CONVERTIBLE JET PUMP
IL1612
Purchase Date
1
DEEP WELL 2 PIPE
Español p. 23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SJ05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STAR Water Systems SJ05

Summary of Contents for STAR Water Systems SJ05

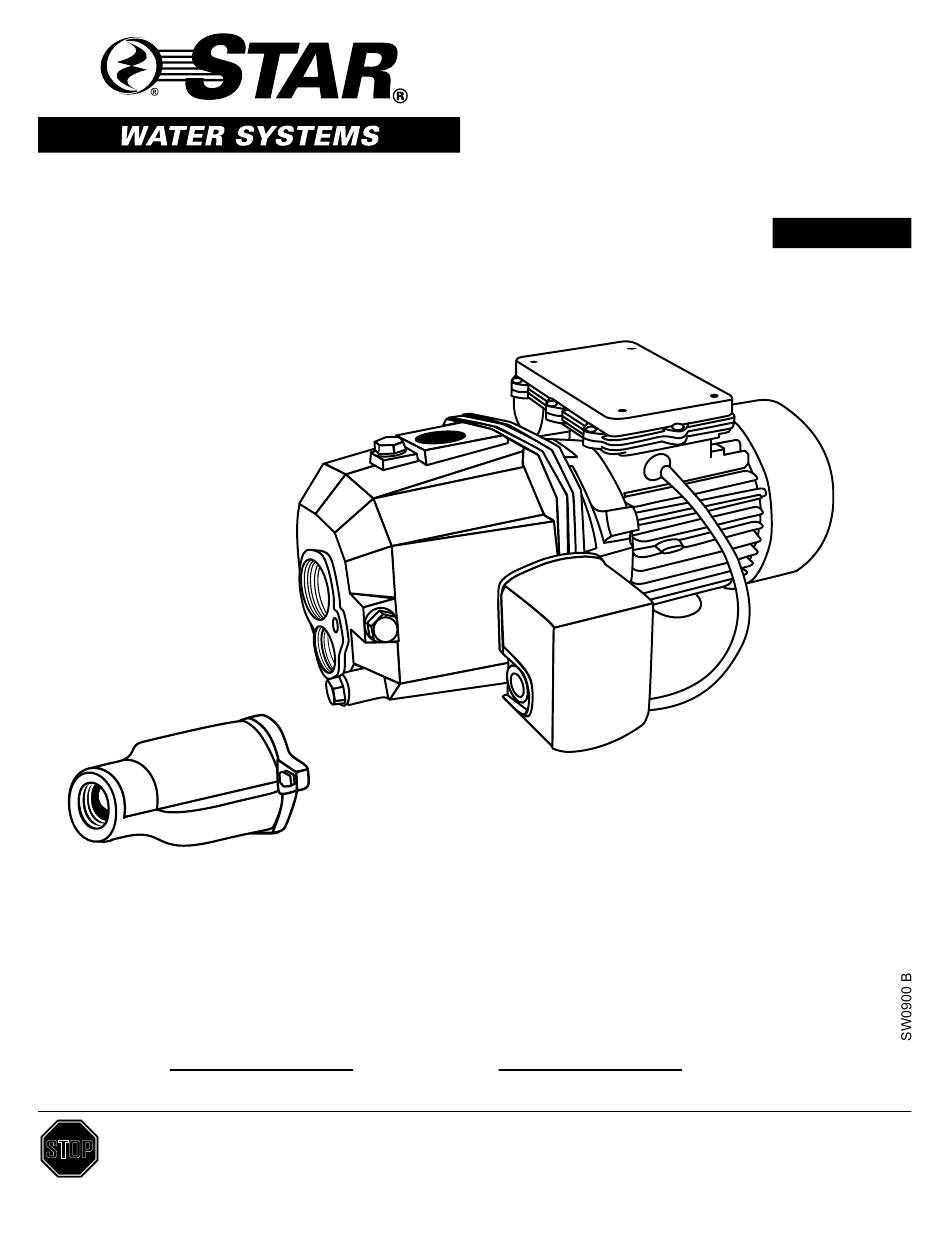

  • Page 1 Questions, problems, missing parts? Before returning to your retailer, call our customer STOP service department at 1-800-742-5044, 7:30 a.m. - 5 p.m., EST, Monday - Friday. 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 2: Table Of Contents

    115/230 10.9/5.4 13.0 10.0 10.0 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
  • Page 3 Do not use to pump flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc. Do not use in flammable and/or explosive atmospheres. 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 4: Package Contents

    The provided ejector kit MUST be used with this pump. IL1612 HARDWARE CONTENTS (not shown actual size) 3/8 x 1-NC Hex Bolt 3/8 LW Flat Washer Gasket 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 5: Preparation

    40 ft. Max. Water Level 1-1/4 in. Suction Pipe 1 in. Pipe 1 -1/4 in. to 1 in. Male Adapter 1-1/4 in. Foot Valve 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
  • Page 6 10 GA 8 GA 6 GA 230 V 14 GA 10 GA 10 GA Fuse Size Amps Amps Amps 115 V 230 V 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 7: Well To Pump Connection

    Pipe clamp clamp (not included) to prevent the assembly 25 ft. maximum from sliding down into the well. Water level 5 ft. minimum 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
  • Page 8 Line up bolts, 3/8 LW and flat 1-1/4 in. washers with openings in ejector and slide opening the bolts through the bolt opening. 1 in. opening 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
  • Page 9 NOTE: Be sure the pipe slopes downward slightly Adapter from pump to the well to prevent air pockets. Well Proceed to PUMP TO TANK CONNECTION IL1540 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
  • Page 10 4. Wrap thread tape around threads of a 1-1/4 in. 1-1/4 in. male male PVC adapter (not included) and thread PVC adapter over long venturi tube and into ejector. IL1544 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
  • Page 11 NOTE: Do not let assembly slide down into well. Well Seal Tighten the well seal until rubber gaskets are tight against the well casing and the PVC pipes. Well Casing 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 12: Check Tank Pressure

    Use a tire pump to adjust the psi to 18 psi Pressure gauge Air release valve b. If water leaks from the air release valve, Set to replace the pressure tank. 18 psi 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 13: Pump To Tank Connection

    4. Continue with fittings and pipe to the pressure tank. A 1 in. union is optional but To pressure tank recommended for easy connection and 1 in. union disconnection. 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 14: Tank To House Connection

    (not included) and continue with Glue pipe and 3/4 in. x 3/4 in. x 3/4 in. tee (not Union included). 3/4 in. pipe Reducer bushing IL1368 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 15: Pump Electrical Connections

    Connect the pump to a separate electrical circuit with a dedicated circuit breaker. Refer to the Wire Size Chart for proper fuse size. 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
  • Page 16 4. Connect the two wires from the power supply to the two outside terminals on the pressure Wire from Wire from power motor switch. supply Outside Outside terminal terminal 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 17: Pump Priming And Startup

    Vent Plug NOTE: It will take several minutes to fill the Opening pump and all pipes completely. 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
  • Page 18 Check voltage. Make sure your incoming voltage matches the pump wiring voltage. See PUMP ELECTRICAL CONNECTIONS. IL1339 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 19: Care And Maintenance

    1. To drain pump, remove the drain plug located on the front of pump and the priming plug located on the top of pump. Drain Plug 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 20: Troubleshooting

    4. Disassemble pump and remove impeller. foreign object. 5. Thermal overload has opened circuit. 5. Allow unit to cool, restart after reason for overload has been determined. 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 21: Warranty

    Some states do not allow limitations on duration of implied warranties or exclusion of incidental or consequential damages, so the above limitations may not apply to you. WARRANTY VALID IN CANADA AND MEXICO. 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.

  • Page 22: Replacement Parts

    Impeller (3/4 & 1 HP) 023714 Diffuser with Diffuser Rubber 023753 Pressure Switch 023722 Two Pipe To Pump Body Deep Well Single Pipe Application Shallow Well Application 95 North Oak Street • Kendallville, IN 46755 • © 2016 Star Water Systems. All rights reserved.
