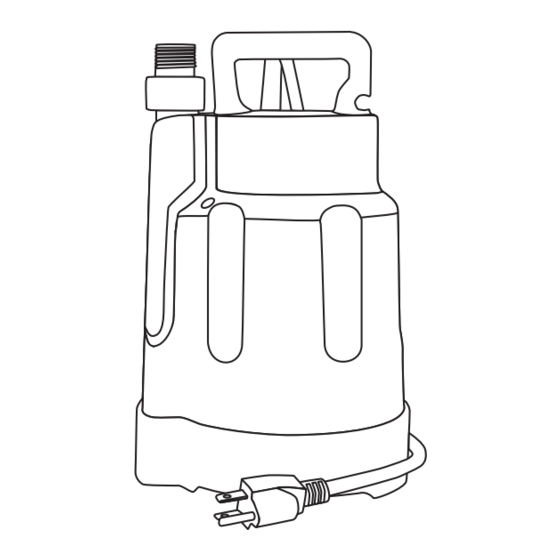

SUBMERSIBLE UTILITY
PUMP
MODEL #UTHALC, 2STHALC, 3STHALC
Español p. 9
ATTACH YOUR RECEIPT HERE
Purchase Date
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-742-5044, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTHALC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for STAR Water Systems UTHALC

  • Page 1 SUBMERSIBLE UTILITY PUMP MODEL #UTHALC, 2STHALC, 3STHALC Español p. 9 ATTACH YOUR RECEIPT HERE Purchase Date Serial Number Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-742-5044, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
  • Page 2 ABOVE PUMPING LEVEL AMPS NUMBER 0 FT. 5 FT. 10 FT. 15 FT. UTHALC 2STHALC 3STHALC SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product. • NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard UL778.
  • Page 3 WARNING • ELECTRICAL SHOCK ALERT. Before installing this product, have the electrical circuit checked by an electrician to ensure proper grounding. All electrical installations must conform to the National Electric Code and all local codes. • ELECTRICAL SHOCK ALERT. Connect this product to a properly-grounded 115 volt circuit equipped with a Ground Fault Circuit Interrupter (GFCI) device.
  • Page 4: Installation Instructions

    PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 5 minutes No Tools Required for Assembly. INSTALLATION INSTRUCTIONS 1.
  • Page 5 3. Plug pump into a properly grounded 115 V AC power outlet. GFCI Outlet 4. Pump has an air valve to prevent air-locking. Air-locking will keep pump from pumping water. A small spray of water from the air valve is normal and does not represent a defective pump.
  • Page 6: Care And Maintenance

    2. DO NOT RUN DRY. Running pump when it is not submerged in water will damage the seal and impeller, and void the warranty. Do not run dry CARE AND MAINTENANCE The motor housing of pump is completely sealed and requires no service. Disassembly of the motor housing or alteration of the power cord voids all warranty.
  • Page 7: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Pump runs, 1. Hose kinked. 1. Straighten hose. but no water is 2. Defective pump. 2. Replace pump. discharged. 3. Discharge height too great. 3. Reduce discharge height. 4. Clogged inlet. 4. Clean inlet. Motor runs too hot.
  • Page 8: Warranty

    WARRANTY This product is warranted for one year from the date of purchase or two years from the date of manufacture, whichever occurs first. Subject to the conditions hereinafter set forth, the manufacturer will repair or replace to the original consumer, any portion of the product which proves defective due to defective materials or workmanship.
  • Page 9 BOMBA SUMERGIBLE PARA USO GENERAL MODELO #UTHALC, 2STHALC, 3STHALC ADJUNTE SU RECIBO AQUÍ Fecha de compra Número de serie ¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro Departamento de Servicio al Cliente al 1-800-742-5044, de lunes a viernes de...
  • Page 10: Información De Seguridad

    Bomba Adaptador RENDIMIENTO LITROS POR MINUTO CON ALTURA DE DESCARGA NÚMERO POR ENCIMA DEL NIVEL DE BOMBEO AMPERIOS ARTÍCULO 0 PIES 5 PIES 10 PIES 15 PIES UTHALC 94,6 75,7 56,8 34,1 2STHALC 113,6 90,8 71,9 41,6 3STHALC 113,6 90,8...
  • Page 11 ADVERTENCIA • ALERTA DE DESCARGA ELÉCTRICA. Antes de instalar este producto, haga que un electricista revise su circuito para asegurarse de que la puesta a tierra sea adecuada. Todas las instalaciones eléctricas deben cumplir con el Código Nacional de Electricidad (NEC, por sus siglas en inglés) y con todos los códigos locales. •...
  • Page 12: Instrucciones De Instalación

    PREPARACIÓN Antes de comenzar a ensamblar el producto, asegúrese de tener todas las piezas. Compare las piezas con la lista del contenido del paquete. No intente ensamblar el producto si falta alguna pieza o si estas están dañadas. Tiempo estimado de ensamblaje: 5 minutos No se necesitan herramientas para el ensamblaje.
  • Page 13: Instrucciones De Funcionamiento

    3. Conecte la bomba a un tomacorriente de 115 V CA con la debida puesta a tierra. Tomacorriente con interruptor de circuito de falla de puesta a tierra (GFCI, por sus siglas en inglés) 4. La bomba tiene una válvula de aire para evitar el bloqueo de aire.
  • Page 14: Cuidado Y Mantenimiento

    2. NO HAGA FUNCIONAR LA BOMBA EN SECO. Hacer funcionar la bomba cuando la bomba no está sumergida en agua dañará el sello y el impulsor, lo que anulará la garantía. No haga funcionar la bomba en seco CUIDADO Y MANTENIMIENTO La carcasa del motor de la bomba está...
  • Page 15: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS PROBLEMA CAUSA POSIBLE ACCIÓN CORRECTIVA La bomba 1. La manguera está torcida. 1.Enderece la manguera. funciona, pero no 2. La bomba está defectuosa. 2. Reemplace la bomba. sale agua. 3. Demasiada altura de descarga. 3. Disminuya la altura de descarga. 4.
  • Page 16 GARANTÍA Este producto cuenta con una garantía de un año a contar de la fecha de compra, o de dos años a contar de la fecha de fabricación, lo que ocurra primero. Sujeto a las condiciones establecidas en el presente, el fabricante reparará o reemplazará, para el consumidor original, cualquier parte del producto que se compruebe que está...
