STAR Water Systems 148178 Instructions

ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-742-5044, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble,
operate, or install the product.
DANGER
• FIRE/EXPLOSION HAZARD.
Pump only clear water. Do not pump flammable or explosive fluids such as gasoline,
fuel oil, kerosene, etc. Do not use in a flammable and/or explosive atmosphere. Failure
to follow these warnings could result in death or serious injury and/or property damage.
• RISK OF ELECTRIC SHOCK.
Connect your drill to a properly grounded electrical outlet. For maximum safety, the drill
should be connected to an outlet equipped with a ground fault interrupter device. Keep
hands, feet and drill motor dry. Using or touching a wet drill motor could result in fatal
electrical shock.
• CHEMICAL ALERT.
Prop65 Warning for California residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
CAUTION
• PRODUCT DAMAGE MAY RESULT.
Do not run the pump dry. Do not run pump backwards.
• PRODUCT DAMAGE MAY RESULT.
These pumps are not designed or intended to be used to handle sewage or effluent.
• PRODUCT DAMAGE MAY RESULT.
This pump has been evaluated for use with WATER only.
• PRODUCT DAMAGE MAY RESULT.
Maximum continuous operating water temperature for standard model pumps must not
exceed 104°F (40°C).
• PRODUCT DAMAGE MAY RESULT.
Not designed for 24/7 operation. Design life is 4500 accumulated hours.

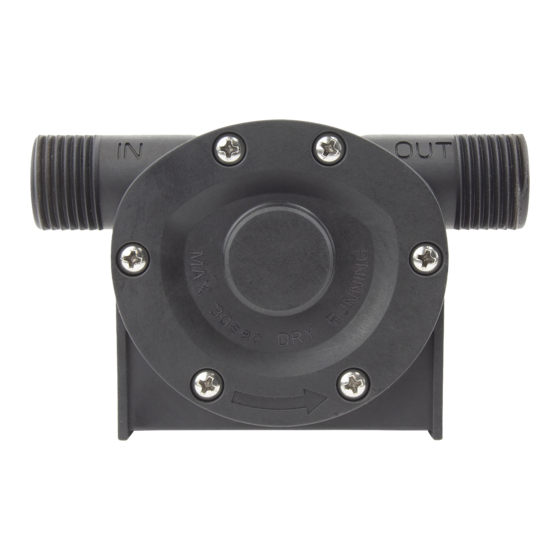

1/4-in DRILL PUMP
MODEL# 148178

PACKAGE CONTENTS

DESCRIPTION QUANTITY
Drill Pump 1

PRODUCT USE

This utility pump will not turn by hand. It is designed to be used with electric hand drills. It is
self-priming and can develop pressures to 25 PSI and flow rates to 150 GPH.
This pump is ideal for the following applications:
• Clogged sinks
• Overflowing washing machines
• Emptying aquariums
INSTRUCTIONS
• The inlet hose should be as short as possible and no more than 25'.
• The discharge hose should be less than 50'.
• Ensure that both hoses are free of kinks or obstructions.
• Ensure tight connections for both hoses. Rubber garden
hose washers should be used to improve the seal if
needed.
• Tighten the drill chuck onto the pump shaft.
• Plug in the 1300RPM or stronger drill. If using a
cordless drill be sure to use a fully charged battery.
• With the pump/hose assembly loosely held with one
hand and the drill with the other, slowly start the drill to ensure it is rotating in the proper
direction. (see arrow on the pump housing).

MAINTENANCE

• To obtain the best pump performance and long service life, place a few drops of
lubrication oil in the inlet before each use.
• When pumping fluids with abrasives or solids, use a screen or strainer on the suction line
to prolong pump life.
• The pump and cover are corrosion-resistant plastic, the impeller and seal are Buna N and
the shaft is stainless steel. If the pump becomes hard to turn, it may be due to chemical
attack on the impeller from the pumped liquid. In this case, remove the impeller and clean
with a mild soap solution.
• For longer life, flush pump with clear water after pumping chemicals or abrasives.

WARRANTY

This product is warranted for 90 days from the date of
purchase. Subject to the conditions hereinafter set forth,
the manufacturer will repair or replace to the original
consumer, any portion of the product which proves
defective due to defective materials or workmanship. This
warranty does not cover replacement parts for failure due
to normal wear and tear. To obtain warranty service, contact
the dealer from whom the product was purchased. The
manufacturer retains the sole right and option to determine
whether to repair or replace defective equipment, parts or
components. Damage due to conditions beyond the control
of the manufacturer is not covered by this warranty.
THIS WARRANTY WILL NOT APPLY:
(a) To defects or malfunctions resulting from failure to
properly install, operate or maintain the unit in accordance
with printed instructions provided; (b) to failures resulting
from abuse, accident or negligence or use of inappropriate
chemicals or additives in the water; (c) to normal
maintenance services and the parts used in connection
with such service;
(d) to units which are not installed in accordance with
normal applicable local codes, ordinances and good trade
practices; and (e) if the unit is used for purposes other than
for what it was designed and manufactured.
RETURN OF WARRANTED COMPONENTS:
In those instances where damages are incurred as a result of an alleged pump failure,
the Homeowner must retain possession of the pump for investigation purposes.
• Pumping out pool covers
• Transferring oil from autos and boats
Any item to be repaired or replaced under this warranty
must be returned to the manufacturer at Kendallville,
Indiana or such other place as the manufacturer may
designate, freight prepaid.
THE WARRANTY PROVIDED HEREIN IS IN LIEU OF ALL
OTHER EXPRESS WARRANTIES, AND MAY NOT BE
EXTENDED OR MODIFIED BY ANYONE. ANY IMPLIED
WARRANTIES SHALL BE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY AND THEREAFTER ALL
SUCH IMPLIED WARRANTIES ARE DISCLAIMED AND
EXCLUDED. THE MANUFACTURER SHALL NOT, UNDER
ANY CIRCUMSTANCES, BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES, SUCH
AS, BUT NOT LIMITED TO DAMAGE TO, OR LOSS
OF, OTHER PROPERTY OR EQUIPMENT, LOSS OF
PROFITS, INCONVENIENCE, OR OTHER INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY TYPE OR
NATURE. THE LIABILITY OF THE MANUFACTURER
SHALL NOT EXCEED THE PRICE OF THE PRODUCT
UPON WHICH SUCH LIABILITY IS BASED.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state. Some
states do not allow limitations on duration of implied
warranties or exclusion of incidental or consequential
damages, so the above limitations may not apply to you.
