STAR Water Systems COND-1 Installation Instructions Manual

NOTICE TO INSTALLER: Instructions must remain with installation.
Product information presented here
reflects conditions at time of pub-
lication. Consult factory regarding
discrepancies or inconsistencies.
INSTALLATION INSTRUCTIONS

PREINSTALLATION CHECKLIST - ALL INSTALLATIONS

1. Inspect all materials. Occasionally, products are damaged during shipment. If the unit is damaged, contact your dealer before
using.
2. Carefully read all the literature provided to familiarize yourself with specific details regarding installation and use before attempting
the installation. These materials should be retained for future reference.
1. To help reduce the risk of electrical shock, a properly
grounded receptacle or control box of grounding type
must be installed and protected by a ground fault circuit
interrupter (GFCI) in accordance with the National Electrical
Code and applicable local codes. If pump is wired direct, a
GFCI must be installed in the control box. (SEE WARNING
BELOW)
2. Make certain that the ground fault interrupter protected
receptacle or control box is within reach of the pump's
power supply cord. DO NOT USE AN EXTENSION CORD.
Extension cords that are too long or too light do not deliver
sufficient voltage to the pump motor. But more important,
they could present a safety hazard if the insulation were to
become damaged or the connection end were to fall into a
damp or wet area.
3. Make sure the pump's electrical supply circuit is
equipped with fuses or circuit breakers of proper
1. Check to be sure your power source is adequate to handle
the amperage requirements of the motor as indicated on the
pump or unit I.D. tag.
2. All plumbing (discharge and drain lines) must be installed to
meet local codes.

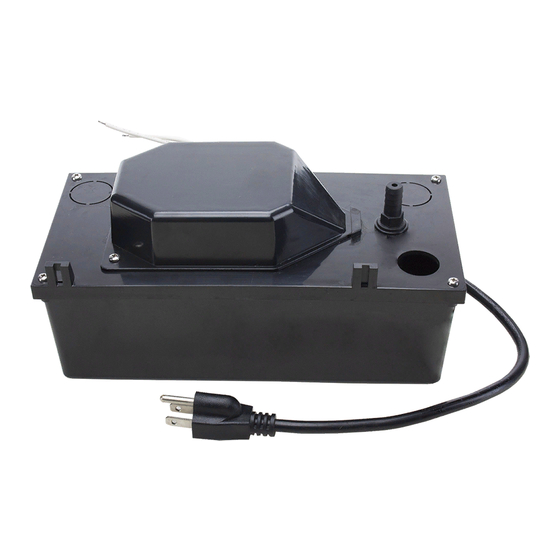

MODEL COND-1 Condensate Pump
95 North Oak Street
Kendallville, IN 46755
800-742-5044
capacity. A separate branch circuit, sized according to the
National Electrical Code for the current shown on the pump
name plate is recommended.
4. TESTING FOR GROUND. As a safety measure, each
electrical outlet should be checked for ground using an
Underwriters Laboratory Listed circuit analyzer which will
indicate if the power, neutral and ground wires are correctly
connected to your outlet. If they are not, call a qualified
licensed electrician.
5. Installation and checking of electrical circuits and hardware
should only be performed by a qualified licensed electrician.
6. FOR YOUR PROTECTION ALWAYS DISCONNECT PUMP
FROM ITS POWER SOURCE BEFORE HANDLING.
7. According to the state of California (Prop 65), this product
contains chemicals known to the state of California to cause
cancer and birth defects or other reproductive harm.
NOTE: Pumps with the "UL" mark and pumps with the "US" mark
are tested to UL Standard UL778. CSA Certified pumps are
certified to CSA Standard C22.2 No. 108.
REFER TO WARRANTY ON PAGE 2.
visit our web site:
starwatersystems.com
SEE BELOW FOR
LIST OF WARNINGS
SEE BELOW FOR
LIST OF CAUTIONS
SW1077 B
