SUBMERSIBLE
SUMP PUMPS
MODELS 3SEHL, S1057, S1098
Español p. 9
SW1617 B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3SEHL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for STAR Water Systems 3SEHL

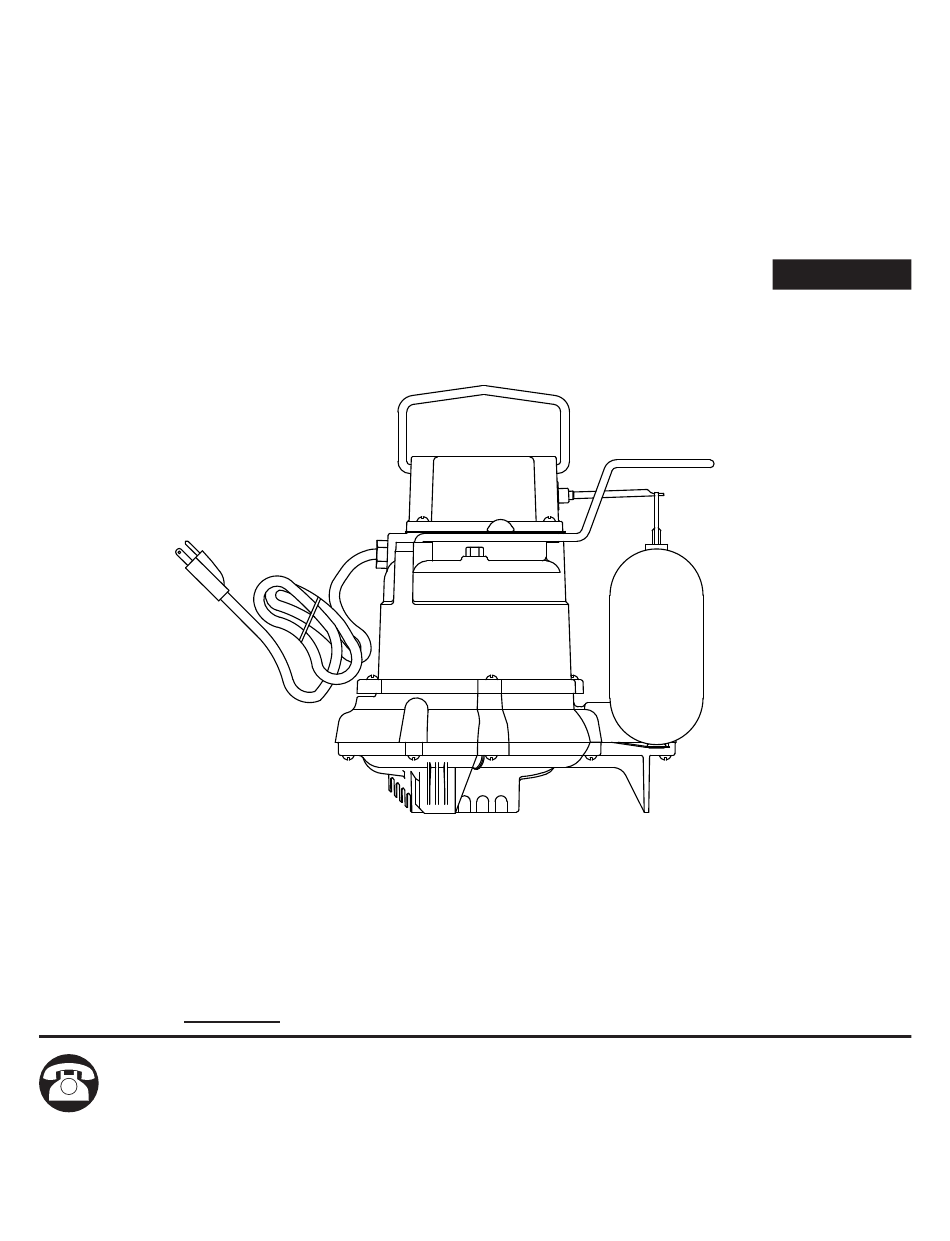

  • Page 1 SUBMERSIBLE SUMP PUMPS MODELS 3SEHL, S1057, S1098 Español p. 9 ATTACH YOUR RECEIPT HERE Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-742-5044, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
  • Page 2 PACKAGE CONTENTS Height Width MODEL QUANTITY WIDTH HEIGHT CORD LENGTH 3SEHL 10 in. 11 in. 9 ft. S1057 10 in. 10 in. 9 ft. S1098 11 in. 12 in. 9 ft. SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product.
  • Page 3 WARNING • ELECTRICAL SHOCK ALERT. Before installing this product, have the electrical circuit checked by an electrician to ensure proper grounding. All electrical installations must conform to the National Electric Code and all local codes. • ELECTRICAL SHOCK ALERT. Connect this product to a properly-grounded 115 volt circuit equipped with a Ground Fault Circuit Interrupter (GFCI) device.
  • Page 4: Specifications

    MINUTE INRUSH DISCHARGE MODEL PHASE VOLTS AMPS AMPS SIZE 0 FT. 5 FT. 3SEHL, 13.5 1-1/2 in. S1057 S1098 17.6 1-1/2 in. NOTES: Do and Do NOT for sump pumps: DO NOT use this pump for anything other than sump pump pit installations.
  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS 1. Make sure the sump basin is cleared of any debris or sediment, and place the sump pump on a hard surface inside the basin. 2. Connect the discharge pipe, fittings, and check Discharge pipe valve (not provided) to pump discharge. The and ttings discharge pipe should be the same size as the Check...
  • Page 6 “off” level. Approximate pump On / Off levels from base of pump Model On Level Off Level 3SEHL, S1057 7-1/4” 3” S1098 9-1/2” 3” 6. Install a sump basin cover to complete the installation.
  • Page 7: Care And Maintenance

    CARE AND MAINTENANCE WARNING: Always disconnect pump from power source before handling. Remove debris At least every three months: Remove any debris that may build up in the sump basin to prevent it from interfering with the operation of the float switch. Clean out the vent hole that was drilled in the Clean vent hole...
  • Page 8: Troubleshooting

    TROUBLESHOOTING DANGER RISK OF ELECTRIC SHOCK. Always disconnect power source before attempting to install, service, or maintain the pump. Never handle a pump with wet hands or when standing on wet or damp surface or in water. Fatal electrical shock could occur. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION...
  • Page 9 BOMBAS DE SUMIDERO SUMERGIBLES MODELOS 3SEHL, S1057, S1098 ADJUNTE SU RECIBO AQUÍ Fecha de compra ¿Preguntas, problemas, partes faltantes? Antes de acudir al minorista, llame a nuestro departamento de servicio al cliente al 1-800-742-5044, de lunes a viernes de 7:30 a.m. a 5:00 p.m., EST.
  • Page 10: Información De Seguridad

    CONTENIDO DEL PAQUETE Altura Ancho LONGITUD DEL MODELO CANTIDAD ANCHO ALTURA CABLE 3SEHL 10 pulg. 11 pulg. 9 pies S1057 10 pulg. 10 pulg. 9 pies S1098 11 pulg. 12 pulg. 9 pies INFORMACIÓN DE SEGURIDAD Lea y comprenda todo el manual antes de intentar ensamblar, operar o instalar el producto.
  • Page 11 • ALERTA DE DESCARGA ELÉCTRICA. Conecte este producto a un circuito con la debida puesta a tierra de 115 voltios, equipado con un interruptor de circuito de fallas de puesta a tierra (GFCI, por sus siglas en inglés). Asegúrese de que el circuito de suministro eléctrico esté...
  • Page 12 MODELO FASE VOLTIOS AMPERIOS ARRANQUE DESCARGA PIES PIES PIES PIES PIES 3SEHL, 13.5 1-1/2 pulg S1057 S1098 17.9 1-1/2 pulg NOTAS: Antes de instalar la bomba: NO use esta bomba para instalaciones que no sean de pozo para bomba de NO use un cable de extensión con una bomba de sumidero.
  • Page 13: Instrucciones De Instalación

    INSTRUCCIONES DE INSTALACIÓN 1. Asegúrese de que el contenedor para agua de sumidero no tenga suciedades ni sedimentos, y coloque la bomba de sumidero sobre una superfi cie dura dentro del contenedor. 2. Conecte la tubería de descarga, los conectores Tubería y conectores y la válvula de retención (no provista) a la de descarga...
  • Page 14 Niveles aproximados de encendido/apagado de la bomba desde la base de la bomba Nivel de Nivel de Modelo encendido apagado 3SEHL, S1057 7-1/4 pulg. 3 pulg. S1098 9-1/2 pulg. 3 pulg. 6. Instale una cubierta para el contenedor para agua de sumidero para completar la instalación.
  • Page 15: Cuidado Y Mantenimiento

    CUIDADO Y MANTENIMIENTO ADVERTENCIA: Desconecte siempre la bomba de la fuente de energía eléctrica antes de Elimine la manipularla. suciedad Al menos cada tres meses: Quite la suciedad que pudiera acumularse alrededor del contenedor para agua de sumidero para evitar que interfiera con el funcionamiento del interruptor del flotador.
  • Page 16: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS PELIGRO RIESGO DE DESCARGA ELÉCTRICA. Desconecte siempre la fuente de alimentación antes de instalar, reparar o realizar el mantenimiento de la bomba. No manipule la bomba con las manos mojadas o cuando esté parado sobre una superficie mojada, húmeda o con agua. Puede ocurrir una descarga eléctrica mortal. PROBLEMA CAUSA POSIBLE ACCIÓN CORRECTIVA...
