Electrohome
Electrohome Marquee Series Projector Connections
_ If the installation includes looping
( host/peripheral ) switchers, see
Chapter 5.
If Video Loop Back is part of the
installation, see pages 2-10 and 2-11.
Channel List
Electrohome Vista/Hal Series Projector Connections
Extron • System 8/10 P
LUS

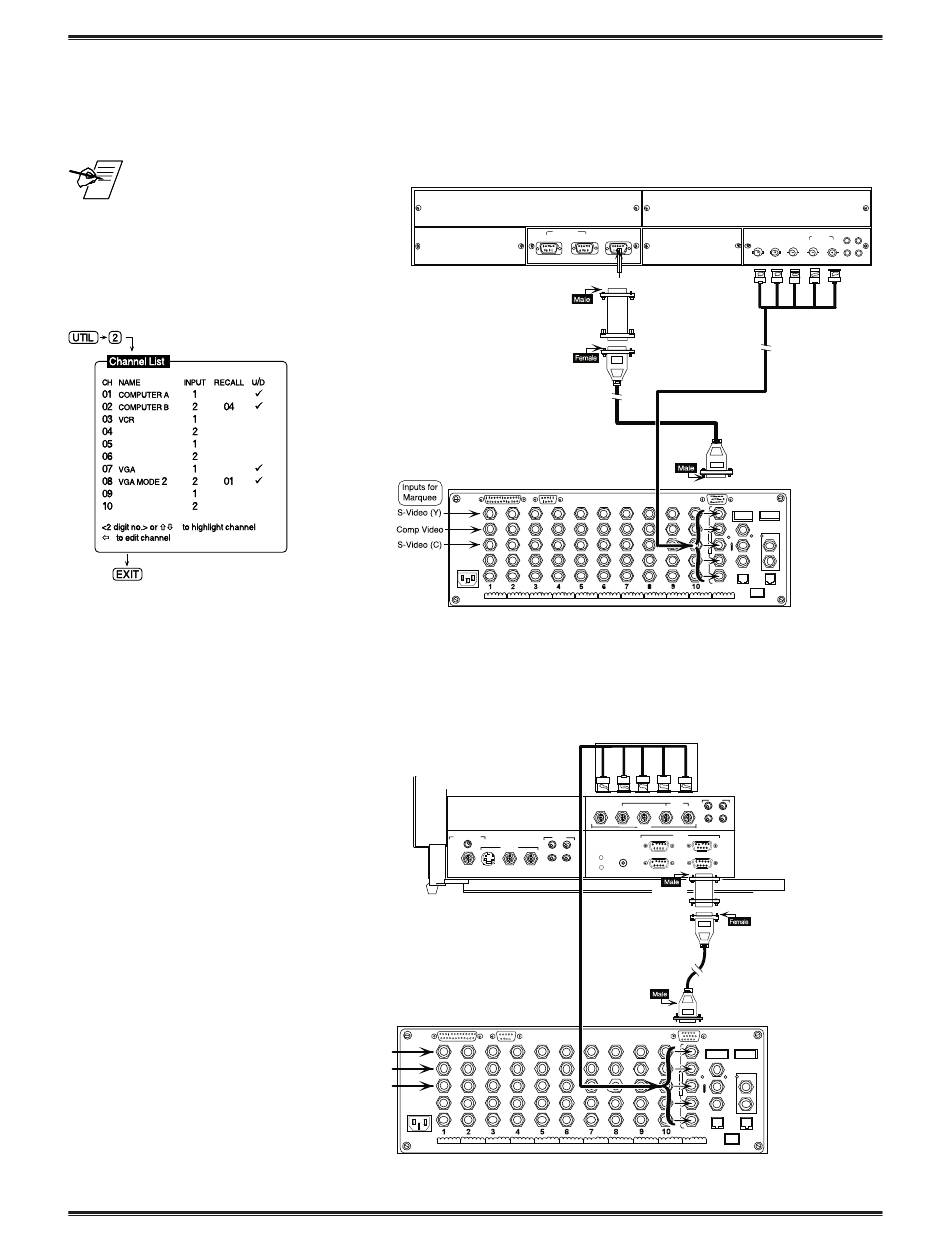

Use the illustration below when connecting the System 8/10 P
projector. Refer to Electrohome Marquee documentation to continue the
installation.
The Marquee/VistaPro projector
software allows the user to program
the projector slot and input numbers
to match the System 8/10 P
numbers.
Turn the projector on and use the
Marquee/VistaPro remote to display
the channel list shown in the picture
to the
right.
Use the
arrow
keys to
edit the
list. Press Exit
when finished.
Use the illustration below when connecting the System 8/10 P
projector. Refer to Electrohome Vista/Hal documentation to continue the
installation.
S-VIDEO (Y)
COMP VIDEO
S-VIDEO (C)
• User's Manual • P/N 68-400-01 Rev. B
Configuration and Connections
RS-232 To
Switcher
In Out
9-Pin
"F"
input
LUS
CC 50'
RED GREEN
VID 1
COMP. VIDEO AUDIO
VID 2
L
S-VIDEO
STATUS
REMOTE
R
IN IN
VID-1 VID-2
POWER
to a Marquee
LUS
Electrohome Marquee Projector
Sync
Red Green Blue Hor/Comp Vert
26-474-01
3, 4 or 5 BNC
"F"
15-Pin HD
to a VistaPro
LUS
AUDIO
SYNC
L
BLUE H/C SYNC V SYNC
R
IN OUT
DAT 1
DAT 1
RS-232
NETWORK IN SPARE
SWITCHER
NETWORK OUT
"A"
9-Pin HD
26-467-01
"A"
9-Pin HD
CC 50'
15-Pin HD
