Item #0000 000 000
Model #FSS60428S-ST
USE AND CARE GUIDE

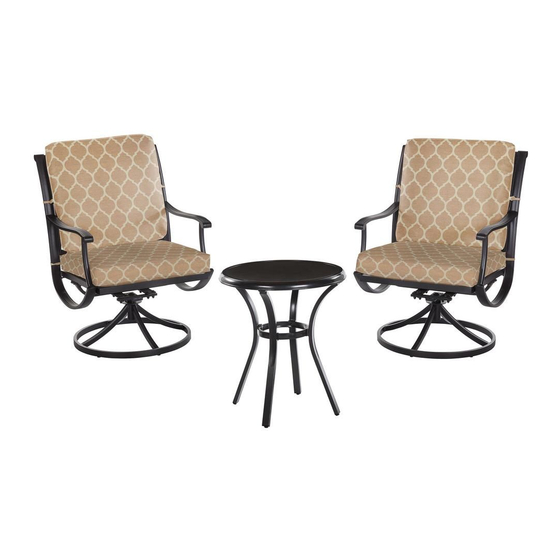

REDWOOD VALLEY 3 PIECE BISTRO
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSS60428S-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY FSS60428S-ST

Summary of Contents for HAMPTON BAY FSS60428S-ST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly...............3 Important Safety Instructions ........2 Hardware icluded..............3 Save These Instructions ............2 Swivel Chair Packaging Contents.........4 Read All Instructions Before Use ..........2 Table Packaging Contents ...........5 Warranty ................

  • Page 3: Warranty

    Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Swivel Chair Packaging Contents

    Pre-Assembly (continued) SWIVEL CHAIR PACKAGE CONTENTS Part Description Quantity Chair back Chair seat Left arm Right arm Support Bar...
  • Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Leg connection Table leg HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Chair Assembly

    Chair Assembly ATTACHING THE CHAIR SEAT TO THE RIGHT ARM Place the right arm (D) on a soft place. Attach the back of the chair seat (B) to the back of the right arm (D) using one M6x15 combination bolt (AA). Attach the front of the chair seat (B) to the front of the right arm (A) using one M6x30 combination bolt (CC).
  • Page 7 Chair Assembly (continued) ATTACHING THE CHAIR SEAT TO THE LEFT ARM Repeat step 1 to attach the chair seat (B) to the left arm (C). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all the bolts using the wrench (EE). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Chair Assembly (continued) ATTACHING THE CHAIR BACK TO THE ARMS Attach the chair back (A) to the left and the right arms (C & D) using M6x25 combination bolts (BB). Once all of the bolts are in place, fully tighten the bolts using the hex wrench (EE)
  • Page 9 Chair Assembly (continued) ATTACHING THE SUPPORT BAR TO THE CHAIR SEAT Attach the support bar (E) to the chair seat (B) using M8x20 combination hex bolts (DD). Once all of the bolts are in place, fully tighten the bolts using the wrench (FF) HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Chair Assembly (continued) INSERT THE SUPPORT BAR TO THE CHAIR BASE Insert the support bar (E) to the base (F).
  • Page 11 Chair Assembly (continued) CHECKING THE CHAIR Ensure all connections are secure before use. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Table Assembly CONNECTING THE TABLE LEGS Place the table top (I) upside down on a soft surface. Attach the table legs (K) to the table top (I) using M6x15 combination bolts (AA). Do not fully tighten all bolts at this step. NOTE : Loosely tighten all the bolts using the hex wrench (EE).
  • Page 13 Table Assembly (continued) ATTACHING THE LEG CONNECTOR TO THE TABLE LEGS Attach the leg connector (J) to the table legs (K) using M6x25 combination bolts (BB). Do not fully tighten all bolts at this step. NOTE : Loosely tighten all the bolts using the hex wrench (EE). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 14: Care And Cleaning

    Table Assembly (continued) CHECKING THE TABLE Once all of the bolts are in place, fully tighten the bolts using the hex wrench (EE). Turn the table right side up. Ensure all connections are secure. Care Care and Cleaning For best results, clean the frame with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 15 1-855-HD-HAMPTON HOMEDEPOT.CA Factory chair ID # FSS60428S Factory table ID # FTM61139...
