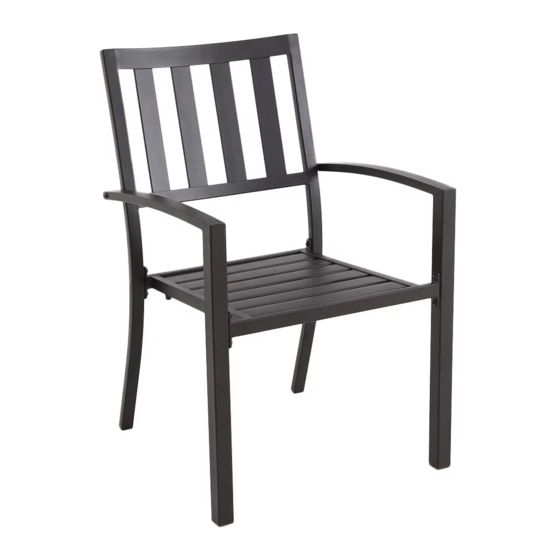

Steel kd slat chair

Advertisement

Quick Links

Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
USE AND CARE GUIDE
STEEL KD SLAT CHAIR
call Hampton Bay Customer Service.
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
Thank you for choosing Hampton Bay!
I
tem # 1002 556 310, 1002 556 311
1002 556 314, 1002 556 666
1002 556 630, 1002 556 669
1003 291 861
Model # FSS60508I2PKBR, FSS60508I2PKRB
FSS60508I2PKW, FSS60508I2PKCLS
FSS60508I2PKFN, FSS60508I2PKMRN
FSS60508I2PKBLK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSS60508I2PKBR and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY FSS60508I2PKBR

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............Save These Instructions ............2 Package Contents ..............Read All Instructions Before Use ..........2 Assembly ................
  • Page 3: Warranty

    Warranty 2 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty.
  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Right arm Left arm Backrest Seat...
  • Page 5: Assembly

    Assembly CONNECTING THE SEAT TO THE BACKREST Place the backrest (C) on a soft surface. Connect the seat (D) to the backrest (C) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance...
  • Page 6 Assembly (continued) CONNECTING THE LEFT ARM AND THE RIGHT ARM TO THE SEAT Attach the left arm (B) to the seat (D) using M6x15 combination bolts (AA). Attach the right arm (A) to the seat (D) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 7 Assembly (continued) CONNECTING THE LEFT ARM AND THE RIGHT ARM TO THE BACKREST Attach the left arm (B) to the backrest (C) using M6x45 combination bolts (BB). Attach the right arm (A) to the backrest (C) using M6x45 combination bolts (BB). Do not fully tighten all the bolts at this step.
  • Page 8: Care And Cleaning

    Assembly (continued) CHECKING THE CHAIR Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC). Ensure all connections are secure before use. Care and Cleaning For best results, clean the chair with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 9 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory chair ID # FSS60508I...
