Item # 1001 025 220
Model # FSS60523-ST

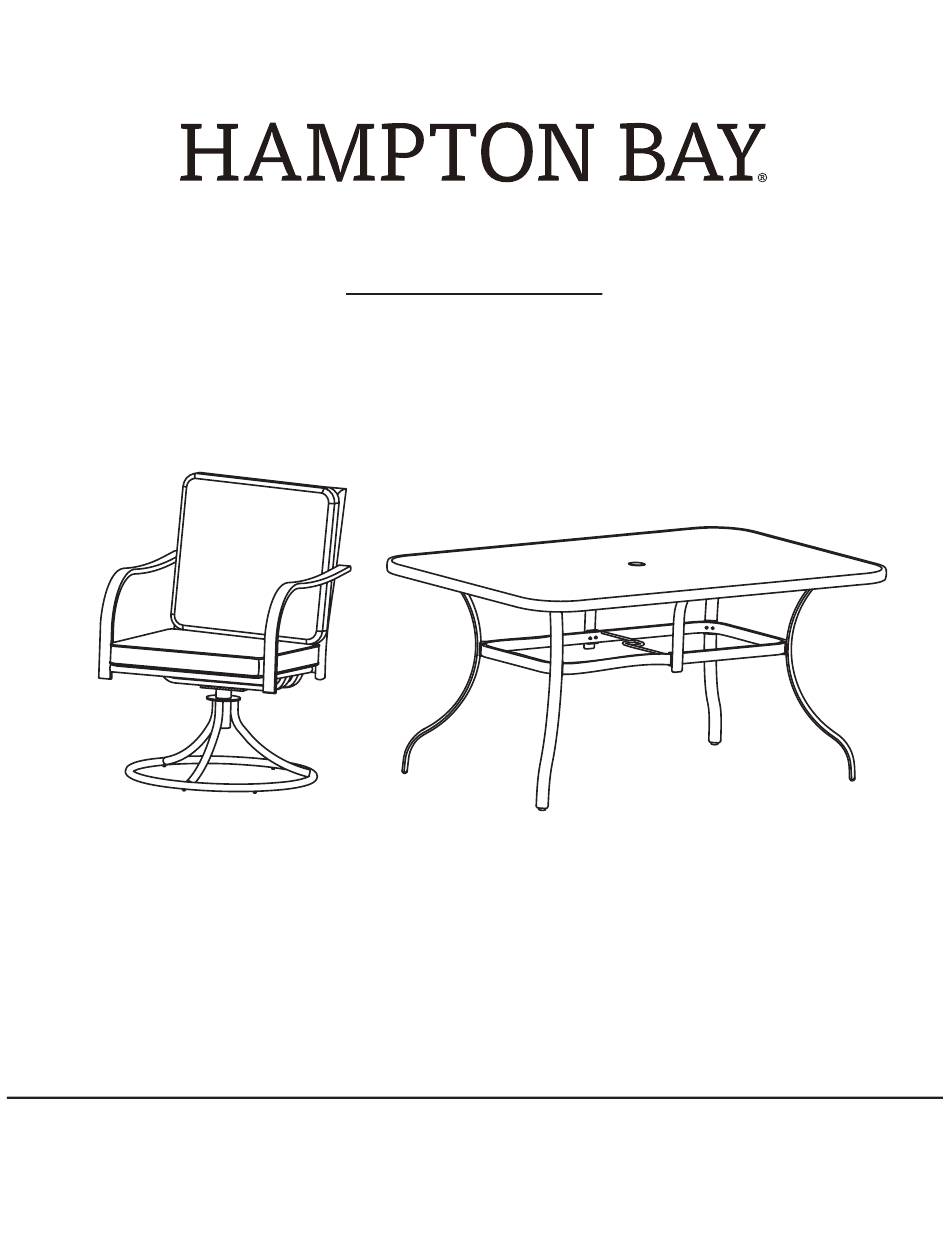

USE AND CARE GUIDE
VESTRI 7-PIECE DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this dining set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VESTRI FSS60523-ST and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY VESTRI FSS60523-ST

Summary of Contents for HAMPTON BAY VESTRI FSS60523-ST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this dining set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............3 Save These Instructions ............2 Swivel Chair Package Contents ..........4 Read All Instructions Before Use ..........2 Table Package Contents ............

  • Page 3: Warranty

    Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Swivel Chair Package Contents

    Pre-Assembly (continued) SWIVEL CHAIR PACKAGE CONTENTS Part Description Quantity Chair frame Support tube Chair base Back cushi n o Seat cushion...
  • Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Table leg Support tube Leg connector HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Swivel Chair Assembly

    Swivel Chair Assembly CONNECTING THE SUPPORT TUBE TO THE CHAIR FRAME Place the chair frame (A) upside down on a soft surface. Attach the support tube (B) to the chair frame (A) by inserting M8x35 combination hex bolts (AA) through the chair frame (A), the support tube (B), M8 washers (BB) and M8 spring washers (CC), into M8 nuts (DD).
  • Page 7 Swivel Chair Assembly (continued) CONNECTING THE SUPPORT TUBE TO THE CHAIR BASE Turn the assembled chair frame right side up. Insert the support tube (B) into the chair base (C). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Swivel Chair Assembly (continued) CHECKING THE CHAIR Ensure all connections are secure before use. Place the seat cushion (E) and the back cushion (D) to finish the assembly of the swivel chair.
  • Page 9 Table Assembly CONNECTING THE TABLE LEGS AND THE SUPPORT TUBES TO THE TABLE TOP Place the table top (F) upside down on a soft surface. Attach the table legs (G) and the support tubes (H) to the table top (F). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Table Assembly (continued) ATTACHING THE LEG CONNECTOR Attach the leg connector (I) to the table legs (G) and the support tubes (H) using M6x25 combination bolts (EE). Loosely tighten the M6x25 combination bolts (EE) using the hex wrench (GG). Secure the support tubes (H) to the table top (A) by using ST5X12 screws (FF). Loosely tighten using the screwdriver (II). Once all of the bolts and the screws are in place, fully tighten the bolts and the screws.

  • Page 11: Care And Cleaning

    Table Assembly (continued) CHECKING THE TABLE Turn the table right side up. Ensure all connections are secure before use. Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
