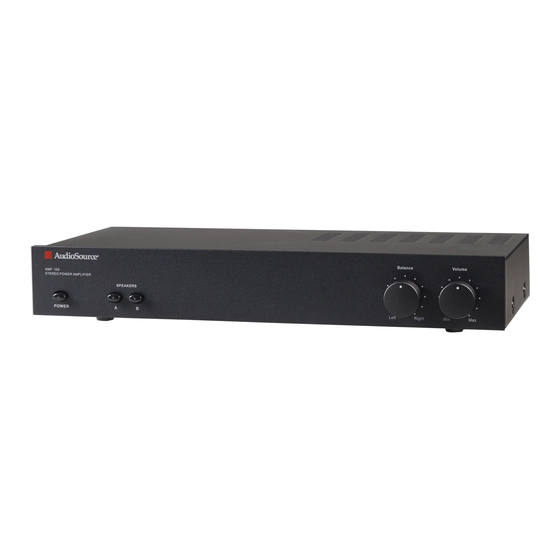

AudioSource AMP100 Owner's Manual

AMP 100
Home Audio Multi-Zone Stereo Power Amplifier
FEATURES:
Line 1 / Line 2 priority input switching
Line 2 auxiliary output
Speaker A/B switching
Front panel Balance and Volume controls
Signal sensing "Power On"

SPECIFICATIONS

Stereo (8 ohm): 50W per channel, 20Hz ~ 20kHz, <1% THD+N
60W per channel, 1kHz, <1% THD+N
Stereo (4 ohm): 60W per channel, 20Hz ~ 20kHz, <1% THD+N
75W per channel, 1kHz, <1% THD+N
Bridged Mono (8 ohm): 160W, 1kHz, <1% THD+N
Frequency Response: 10Hz ~ 30kHz, +0dB/ -3dB
Signal to Noise Ratio: 100dBA below 50W output into 8 ohms
Channel Separation: 65dB @ 1kHz, referred to 50W output
into 8 ohms
Input Sensitivity: 900mV input for rated 50W output
into 8 ohms
AC Power Consumption: 500W maximum
Net Weight: 9.6lbs / 4.4kgs
Gross Weight: 10.8lbs / 4.9kgs
AudioSource®
9200 North Decatur St.
Portland, OR 97203
503.286.9300
www.audiosource.net
Congratulations on your purchase of the AudioSource® AMP 100.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: If any part of this product is damaged or missing, please call your
dealer or AudioSource® directly at 1.800.950.1449 or 503.286.9300.
Please read your warranty and retain your receipt and original carton
for possible future use.
For more information about AudioSource® electronics, speakers and
accessories please visit www.audiosource.net
2.9"
AMP 100
STEREO POWER AMPLIFIER
(74mm)
SPEAKERS
POWER A B
9.5"
(242mm)
AMP 100
OWNER'S MANUAL
16.5" (419mm)
Balance
Left Right
AMP 100 Owner's Manual
Volume
Min Max
