AudioSource AMP102VS Owner's Manual

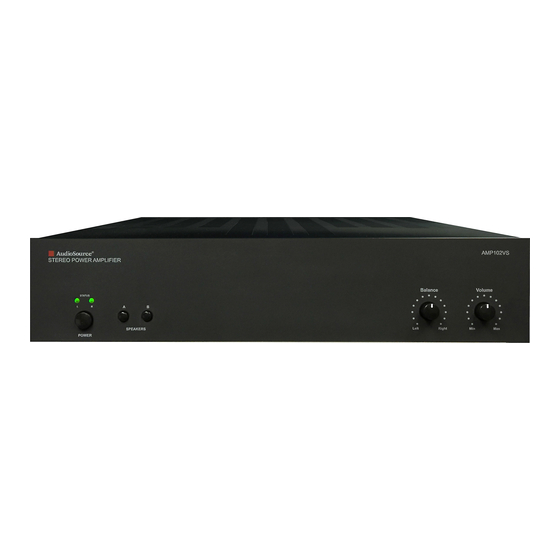

AMP102VS
Stereo Power Amplifier
FEATURES:
MAIN / INTERRUPT priority input switching
MAIN auxiliary output
Speaker A/B switching
Front panel Balance and Volume controls
Signal sensing "Power On" and Trigger mode
Rear mounted treble and bass controls

SPECIFICATIONS

Stereo (8 ohm): 55W per channel, <0.2% THD+N
Stereo (4 ohm): 75W per channel, <0.2% THD+N
Bridged Mono (8 ohm): 160W, 1kHz, <0.2% THD+N
Frequency Response: 10Hz ~ 50kHz, +0dB/ -3dB
Signal to Noise Ratio: 100dB below 50W output into 8 ohms
Channel Separation: 70dB
Input Sensitivity: 700mV input for rated 50W output
into 8 ohms
Bass/Treble Control: +/- 12dB @ 100Hz and 10kHz
AC Power Consumption: 500W maximum
Net Weight: 14lbs / 6.4kgs
Gross Weight: 17.4lbs / 7.9kgs
AudioSource®
13970 SW 72nd Ave
Portland, OR 97223
503.914.4688
www.audiosource.net
Congratulations on your purchase of the AudioSource® AMP102VS.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: If any part of this product is damaged or missing, please call your
dealer or AudioSource® directly at 1.877.715.5439 or 503.914.4688.
Please read your warranty and retain your receipt and original carton
for possible future use.
For more information about AudioSource® electronics, speakers and
accessories please visit www.audiosource.net
3.8"
(96.5mm)
8.25"
(210mm)
AMP102VS
OWNER'S MANUAL
16.5" (419mm)
AMP102VS Owner's Manual 72015
