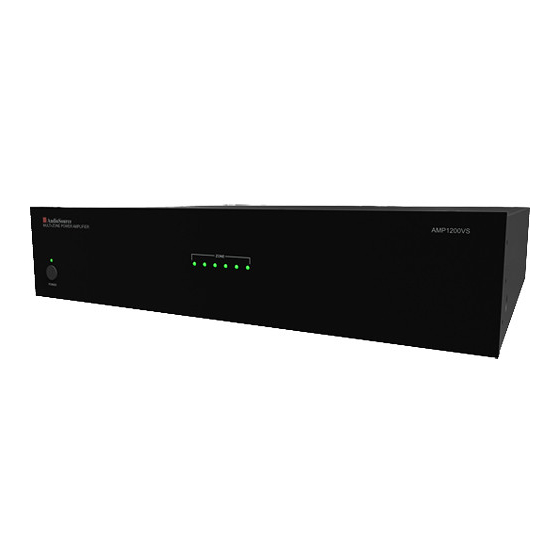

AMP1200VS
Multi-Zone Power Amplifier
FEATURES:
12 Independent Channel inputs, 2 Buss Inputs
2 Buss Outputs
Independent Channel Gain Controls
Manual, Auto, or Triggered On/Off Modes
Bridgeable Channel Outputs
Rack Mountable (Rack Mount Included)
LED Status Indicator Lights
Phoenix-Style Speaker Connectors
Stable Class A/B Design
Extensive Protection Circuitry
SPECIFICATIONS
Stereo (8 ohm):
12 x 40W per channel, <0.2% THD+N
Stereo (4 ohm):
12 x 40W per channel, <0.2% THD+N
Bridged Mono (8 ohm):
80W, 1kHz, <0.2% THD+N
Frequency Response:
10Hz ~ 50kHz, +0dB/ -3dB
Signal to Noise Ratio:
100dB below 150W output into 8 ohms
Channel Separation:
70dB @ 1kHz, referred to 150W output
into 8 ohms
Input Sensitivity:
Variable, 350mV to 2.8V for rated power
into 8 ohms
AC Power Consumption:
1000W maximum
Net Weight:
30lbs / 13.6kgs
Gross Weight:
36lbs / 16.3kgs
AudioSource®
13970 SW 72nd Ave
Portland, OR 97223
503.914.4688
www.audiosource.net
Congratulations on your purchase of the AudioSource® AMP1200VS.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: If any part of this product is damaged or missing, please call your
dealer or AudioSource® directly at 1.877.715.5439 or 503.914.4688.
Please read your warranty and retain your receipt and original carton
for possible future use.
For more information about AudioSource® electronics, speakers and
accessories please visit www.audiosource.net
MULTI-ZONE POWER AMPLIFIER
4.0"
(102mm)
14.25"
(361mm)
AMP1200VS
OWNER'S MANUAL
16.5" (419mm)
AMP1200VS Owner's Manual 72015
AMP1200VS
Advertisement
Table of Contents
Related Manuals for AudioSource AMP1200VS
Summary of Contents for AudioSource AMP1200VS
-
Page 1: Specifications
AMP1200VS OWNER’S MANUAL AMP1200VS Congratulations on your purchase of the AudioSource® AMP1200VS. Multi-Zone Power Amplifier Please take a few moments to read this entire manual, and be sure to retain this document for future reference. Please read and observe all FEATURES: safety instructions detailed on page 2. -
Page 2: Important Safety Instructions
If an equipment rack is used, we recommend locating the amplifier(s) in the bottom of the rack and the preamplifier or other sensitive equipment at the top. 13970 SW 72nd Ave, Portland, OR 97223 • 503.914.4688 • www.audiosource.net... -
Page 3: Front Panel Controls
ON mode. When using the AC Voltage Switch AMP1200VS with a receiver without a trigger output, the voltage can come from a The unit is set at the factory for 115V U.S. operation; simply connect the included IEC 12V wall wart (3.5mm tip-positive connector) plugged into the receiver’s switched... -
Page 4: Limited Warranty
AudioSource®, or damage that is attributable to Acts of God. It does not cover costs of transportation to AudioSource® or damage in transit. The customer should return his defective product, freight prepaid and insured, to AudioSource®...
