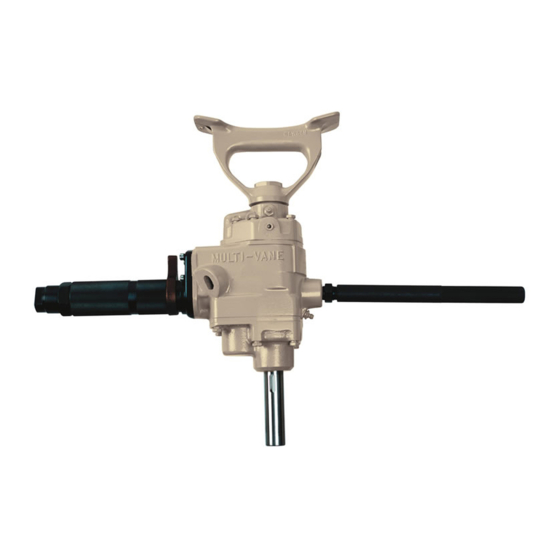

- Page 1 47140504 Edition 1 September 2010 Air Drill Series 2X and 22 MULTI–VANE ® Maintenance Information Save These Instructions...
- Page 2 WARNING Always wear eye protection when operating or performing maintenance on this tool. Always turn off the air supply and disconnect the air supply hose before installing, removing or adjusting any accessory on this tool or before performing any maintenance on this tool. Note: When reading the instructions, refer to exploded diagrams in Parts Information Manual when applicable (see under Related Documentation for form numbers).
- Page 3 Troubleshooting Guide Trouble Probable Cause Solution Using a clean, suitable, cleaning solution in Dirty Inlet Bushing or Air Strainer a well–ventilated area, clean the Air Strainer Screen and/or Exhaust Silencer Screen, Inlet Bushing and Exhaust Silencer. Allow to air dry. Worn or broken Vanes Replace complete set of Vanes.
- Page 4 www.ingersollrandproducts.com © 2010 Ingersoll Rand...
