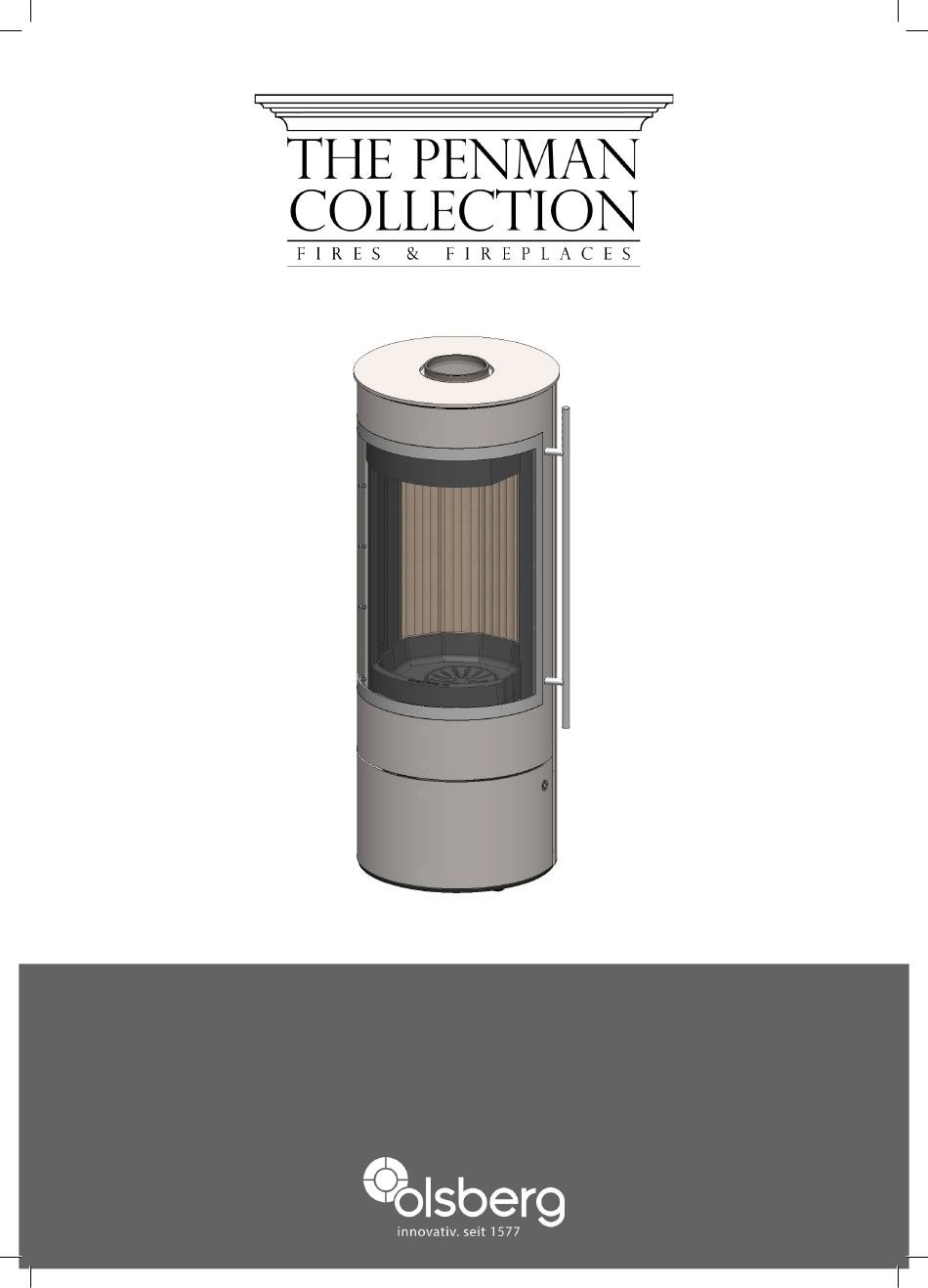

- Page 1 INSTRUCTION MANUAL OLSBERG PULAR COMPACT - DIN EN 13240 INSTALLATION INSTRUCTIONS - DIN 18897 raumluftunabhängig - DIBt - Bauaufsichtliche Zulassung OLSBERG PULAR - 15a BV-G CYLINDRICAL STOVE...
- Page 2 PAGE 2...
-
Page 3: Table Of Contents
CONTENTS 1.0 USER INSTRUCTIONS Page 04 1.1 - Welcome 1.2 - General 1.3 - Heating Capacity 1.4 - Health & Safety 2.0 INSTALLATION INSTRUCTIONS Page 07 2.1 - Heating Capacity - Installation Guide 2.2 - Installation Notes & Guide 2.3 - Positioning the Appliance 2.4 - Flue Installation 3.0 OPERATING INSTRUCTIONS Page 10... -
Page 4: User Instructions
1.0 USER INSTRUCTIONS 1.1 - Welcome Thank you for your decision to buy an Olsberg Stove. The crackling, visible flames give you the sense of comfort and security. The combination of hot-air heating and heat radiation provides a pleasant and healthy climate in any room. -
Page 5: Heating Capacity
λąż®Ľ·˛ą ¬¸· łż¬¬»®ô żµ ż ®»°±˛·ľ´» ˝¸·ł˛»§ ©»»° ±® ±¬¸»® ˝±ł°»¬»˛¬ Olsberg stoves comply with DIN 18891 (building category 1) and DIN EN 13240 standards. Olsberg stoves are »¨°»®¬ ľ»ş±®» ·˛¬ż´´·˛ą ż˛Ľ ±°»®ż¬·˛ą ¬¸» ż°°´·ż˛˝»ň řDZ« ˝ż˛ ż´± ą»¬ ¸»´°... - Page 6 1.4 - Health & Safety Cont. Take care as the packaging material can contain nails and other sharp pieces of metal, which can cause injury to you and the stove. Take care that the nylon and other wrapping materials do not get in children’s hands, as they can cause suffocation.
-
Page 7: Installation Instructions
It is also necessary in the case of rooms with forced aeration systems (e/g extractor fan). If it is possible a solution must be found for turning off these appliances. Some Olsberg stoves have an optional connection for an external air inlet. -
Page 8: Positioning The Appliance
Installing the stove The floor on which the stove is installed must be even and horizontal. The stove may only be installed on an adequate load-bearing floor. The stove can be stood on a metal floor sheet or glass sheet to protect the flooring. 2.0 INSTALLATION INSTRUCTIONS If the flooring or carpet is inflammable, a stable and non- uate... -
Page 9: Flue Installation
2.0 INSTALLATION INSTRUCTIONS 2.4 - Flue Installation The flue outlet diameter on the Olsberg Lünen is 125mm. Appliances are sold equipped with a top or rear outlet. We would recommend the top outlet connection mode because of combustion technological reasons. -
Page 10: Operating Instructions
3.0 OPERATING INSTRUCTIONS 3.1 - General Information All national, regional, local laws, orders and regulations must be kept. Therefore, depending on the location of installation, special operating conditions and restrictions can be enforced regarding the period of use and fuels used. It is important to consult a chimney sweep or other competent expert before installing and using the appliance. -
Page 11: After Use & Maintining The Perfect Burn
3.0 OPERATING INSTRUCTIONS 3.4 - Lighting The Stove For The First Time Cont. After the wood has caught fire you can reduce the amount of the air flowing in. All nominal capacity settings can be found in the technical chart. After a layer of glowing embers has been formed and you can’t see any flames, you can place more fuel on it again and set the desired capacity with the aid of the air regulators. -
Page 12: Operating The Air Slide Valve
3.0 OPERATING INSTRUCTIONS 3.5 - After Use & Maintaining Perfect Burn Cont. Combustible remains are deposited in the appliance, the flue and chimney during use. This happens increasingly if you use wet or treated wood or fuel that is not allowed. The possible overload of the stove or restrain of the fire can contribute to this also. -
Page 13: Using The Wood Storage Compartment
It can be opened by „0“ ..Obtain glow lightly pressing on the button (Olsberg logo). Likewise it can be closed by lightly pressing. ● As the secondary air also contributes to the cleanliness... -
Page 14: Troubleshooting
4.0 TROUBLESHOOTING 4.1 - General Troubleshooting The condition of proper operation of the stove is the appropriate chimney draught (feed pressure). This is considerably dependant on the temperature of the outer environment. In case of higher outer temperature (above 15oC) feed pressure can considerably fall and it can disturb proper operation. What can you do? - Open the primary air regulator a bit more and fully open the secondary air regulator - Use only a small amount of fuel at first... -
Page 15: Special Notes
5.0 SPECIAL NOTES 5.1 - Notes Your guarantee expires immediately in case of extreme or long lasting overload above nominal capacity or the use of fuel not specified. 5.2 - Cleaning Schedule (To be performed only when stove is cold) WHAT FREQUENCY UTENSIL... -
Page 16: Appendix 1 - Dimensional Drawings
APPENDIX 1 - DIMENSIONAL DRAWINGS PAGE 16... - Page 17 BLANK PAGE 17...
- Page 18 BLANK PAGE 18...
- Page 20 Brought to you by Imperial Point Express Trading Estate Stone Hill Road Farnworth Bolton BL4 9TN Tel: 01204 868 550 Fax: 01204 868 551 Email: sales@percydoughty.com www.visionfires.co.uk...
